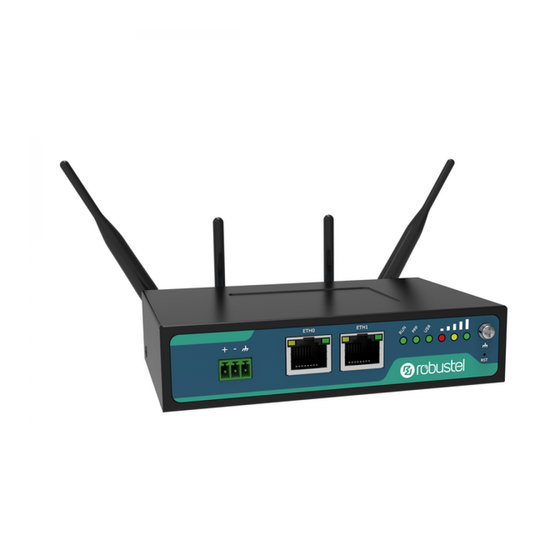

Robustel GoRugged R2000
Dual SIM Industrial Cellular VPN Router
For GPRS/EDGE/UMTS/HSPA+/4G LTE Networks

User Guide

Document Name:
Firmware:
Date:
Status:
Doc ID:
User Guide
1.2.0
2015-12-15
Confidential
RT_UG_R2000_v.1.2.0
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel GoRugged R2000

Summary of Contents for Robustel GoRugged R2000

  • Page 1: User Guide

    Robustel GoRugged R2000 Dual SIM Industrial Cellular VPN Router For GPRS/EDGE/UMTS/HSPA+/4G LTE Networks User Guide Document Name: User Guide Firmware: 1.2.0 Date: 2015-12-15 Status: Confidential Doc ID: RT_UG_R2000_v.1.2.0 www.robustel.com...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R2000 User Guide Do not expose the router to extreme conditions such as high humidity / rain, high temperature, direct sunlight,  caustic / harsh chemicals, dust, or water. Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would ...
  • Page 5 Robustel GoRugged R2000 User Guide Regulatory and Type Approval Information Table 1: Directives Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R2000 User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Doc Version Details 2015-09-7 1.1.0 V1.0.0 First Release Update section: Selection and Ordering Data (Operating 2015-10-08 1.1.0...

  • Page 7: Table Of Contents

    Robustel GoRugged R2000 User Guide Contents Chapter 1 Product Concept ............................8 Overview ..............................8 Packing List ..............................8 Specifications ............................10 Dimensions ............................... 13 Selection and Ordering Data ........................13 Chapter 2 Installation ..............................14 Overview ..............................14 LED Indicators ............................15 Reset Button .............................
  • Page 8 Robustel GoRugged R2000 User Guide 3.23 Services->Robustlink (optional APP) ......................81 3.24 Services->Web Server..........................83 3.25 Services->SNMP (optional APP) ....................... 84 3.26 Services->Advanced ..........................87 3.27 System->Debug ............................88 3.28 System->Update ............................89 3.29 System->APP Center ..........................90 3.30 System->Tools ............................91 3.31...

  • Page 9: Chapter 1 Product Concept

    Robustel GoRugged R2000 User Guide Chapter 1 Product Concept 1.1 Overview Robustel GoRugged R2000 is an enterprise-class cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.  Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G. ...
  • Page 10 Robustel GoRugged R2000 User Guide  3-pin pluggable terminal block for power connector x 1  CD with user guide x 1 Note: Please notify your sales representative if any of the above items are missing or damaged. Optional accessories (can be purchased separately): ...

  • Page 11: Specifications

    Robustel GoRugged R2000 User Guide  Wall Mounting Kit x2  35mm Din-Rail mounting kit  AC/DC Power Supply Adapter (12VDC, 1.5A) x 1 (EU, US, UK, AU plug optional) 1.3 Specifications Cellular Interface Standards: GSM/GPRS/EDGE/UMTS/HSPA+/FDD LTE  FDD LTE: max. 150/50 Mbps (DL/UL) ...
  • Page 12 Robustel GoRugged R2000 User Guide Ethernet Interface Number of Ports: 2xLAN or 1 x LAN, 1xWAN (10/100Mbps)  Magnet Isolation Protection: 1.5KV  WLAN Interface (Optional) Standards: 802.11b/g/n, support AP and Client mode  Data speed: 2*2 MIMO,300Mbps  Frequency Band: 2.412 - 2.485 GHz ...
  • Page 13 Robustel GoRugged R2000 User Guide Physical Characteristics Housing & Weight: Metal, 300g  Dimension: (L x W x H): 127.5mm x 82.5mm x 29.5mm  Installation: 35mm Din-Rail or wall mounting or desktop  Regulatory and Type Approvals Approval & Detective: CE, R&TTE, RoHS, WEEE ...

  • Page 14: Dimensions

    Robustel GoRugged R2000 User Guide 1.4 Dimensions 1.5 Selection and Ordering Data Model No. Frequency band Operating Environment HSPA+: 2100/900 MHz or 2100/900/850 MHz R2000-3P -20 to +65°C/ 5 to 95% RH GSM/GPRS/EDGE: 850/900/1800/1900 MHz LTE FDD: B1, B2, B3, B4, B5, B7, B8, B20...

  • Page 15: Chapter 2 Installation

    Robustel GoRugged R2000 User Guide Chapter 2 Installation 2.1 Overview As shown in the following figures, R2000 router has two Ethernet ports (2xLAN or 1xLAN+1xWAN) and two cellular SIM card slots. RT_UG_R2000_v.1.2.0 15.12.2015 14 /120 Confidential...

  • Page 16: Led Indicators

    Robustel GoRugged R2000 User Guide 2.2 LED Indicators Name Color Status Function Blinking Router is ready. Green Router is starting. Router is power off. Blinking PPP Indicator: Null Green PPP Indicator: PPP connection is up. PPP Indicator: PPP connection is down.

  • Page 17: Reset Button

    Robustel GoRugged R2000 User Guide 2.3 Reset Button Function Operation Reboot Push the button for 2~7 seconds under working status. Please Keep pressing the "RST" button once power on the router, until LED lights blink one by one circularly. Restore to factory...

  • Page 18: Connect The External Antenna

    Robustel GoRugged R2000 User Guide Note: Recommended torque for inserting is 0.5N.m and the maximum torque is 0.7N.m. Please use the specific M2M SIM card when the device works in extreme temperature (temperature exceeding ℃ 0-40 ), because the long-time working of regular SIM card in harsh environment (temperature exceeding ℃...

  • Page 19: Power Supply

    Robustel GoRugged R2000 User Guide 2.9 Power Supply The power supply range is 9 to 26 VDC. Note: Please take care about the polarity, and do not make reverse connection. There are two lines connecting to the power supply adapter, as it illustrates on the power supply adapter label, the line printed with letters needs to be connected with the positive polarity, and the striped line needs to be connected with the negative polarity.

  • Page 20: Chapter 3 Configure Settings Over Web Browser

    Robustel GoRugged R2000 User Guide Chapter 3 Configure Settings over Web Browser The router can be configured through your web browser that include IE 8.0 or above, Chrome and Firefox. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 21 Robustel GoRugged R2000 User Guide 2. In the Local Area Connection Status window, click Properties. 3. Select Internet Protocol (TCP/IP) and click Properties. RT_UG_R2000_v.1.2.0 15.12.2015 20 /120 Confidential...
  • Page 22 Robustel GoRugged R2000 User Guide 4. Configure the IP address of PC. Automatically obtain IP address from DHCP server Manually configured static IP address within the same subnet of R2000 router 5. Click OK to finish the configuration. RT_UG_R2000_v.1.2.0 15.12.2015...

  • Page 23: Factory Default Settings

    Robustel GoRugged R2000 User Guide 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings. Item Description Username admin Password admin eth0 192.168.0.1/255.255.255.0, LAN eth1 192.168.0.1/255.255.255.0, LAN DHCP Server Enabled 3.3 Login Router On the PC, open a web browser such as Internet Explorer.

  • Page 24: Control Panel

    Robustel GoRugged R2000 User Guide 3.4 Control Panel After logging in the R2000, the home page of the R2000 router’s web interface is displayed, just like the screenshot below. This section allows users to save configuration, reboot router, logout. When you are first time to login R2000, there will be a pop-up tab “...
  • Page 25 Robustel GoRugged R2000 User Guide Control Panel Item Description Button Click to save the current configuration into router’s flash and apply Save & Apply the modification on every configuration page, to make the modification taking effect. Click to reboot the router.

  • Page 26: Status

    Robustel GoRugged R2000 User Guide 3.5 Status This section displays the router’s status, which shows you a number of helpful information such as System Information, Cellular Information, Internet Status and LAN Status. System Information System Information Item Description Device Model Show the model name of this device.
  • Page 27 Robustel GoRugged R2000 User Guide Cellular Information Cellular Information Item Description Show the status of modem. There are 8 different status: 1. Initializing 2. Modem not found 3. No response Modem Status 4. SIM not detected 5. SIM PIN required 6.
  • Page 28 Robustel GoRugged R2000 User Guide Internet Status Internet Status Item Description Active Link Show the current WAN link: WWAN1, WWAN2 or WAN. Uptime Show how long the current WAN have been working. IP Address Show the current WAN IP address.

  • Page 29: Interface->Link Manager

    Robustel GoRugged R2000 User Guide 3.6 Interface->Link Manager Link Manager User can manage the link connection in this section. Link Manager Item Description Default Select from “WWAN1”, “WWAN2”, “WAN”, “WLAN”. WWAN1: Select to make SIM1 as the primary wireless link.
  • Page 30 Robustel GoRugged R2000 User Guide Link Setting section allows user to configure the parameter of link connection, include the WWAN1/WWAN, WAN and WLAN. It is recommended to enable ICMP detection to keep router always online. The ICMP detection increases the reliability and also cost data traffic.
  • Page 31 Robustel GoRugged R2000 User Guide When disable “Automatic APN Selection”, the window will display just like the following screenshot. WWAN Setting Item Description Default Automatic APN Selection ON: R2000 will recognize the access point name automatically. Dialup Number Dialup number for cellular dial-up connection, provided by local ISP.
  • Page 32 Robustel GoRugged R2000 User Guide Ping Detection Settings/Advanced Setting Item Description Default Enable To enable “ping detection”. It was a keepalive policy of R2000 router. Router will ping this primary address/domain name to check that if the Primary Server 8.8.8.8 current connectivity is active.
  • Page 33 Robustel GoRugged R2000 User Guide When choose the WAN Connection Type as DHCP, R2000 will obtain IP automatically from DHCP server. When choose the WAN Connection Type as Static. Static Item Description Default Set the IP address with Netmask which can access the internet.
  • Page 34 Robustel GoRugged R2000 User Guide PPPoE Item Description Default PPP Expert options used for PPPoE dialup. You can enter some other PPP PPP Expert Options initialization strings in this field. Each string can be separated by a Null semicolon. Ping Detection Setting/Advance Setting...
  • Page 35 Robustel GoRugged R2000 User Guide WLAN WLAN Setting Item Description Default Enter SSID of the access point which R2000 want to connect. SSID router Input from 1 to 32 characters. When R2000 works as Client mode and need to connect to any access Connect to Hidden SSID point which has hidden SSID, you need to enable this feature.
  • Page 36 Robustel GoRugged R2000 User Guide Static Address Setting Item Description Default Primary DNS Enter the primary DNS server IP address. Null Secondary DNS Enter the Secondary DNS server IP address. Null R2000 router cannot support PPPoE WLAN Connection Type. Ping Detection Setting/Advance Setting...
  • Page 37 Robustel GoRugged R2000 User Guide Status Click the button which is in the top right of the Link Status window. Select the connection status of the current link. Click the row of the link, and it will show the details information of the current link connection under the row.

  • Page 38: Interface->Lan

    Robustel GoRugged R2000 User Guide enable the Data Allowance function in Link Manager->Link Setting->WWAN Setting. 3.7 Interface->LAN This section allows user to set the LAN and the related parameters. Click to edit the configuration of the current LAN interface. Click to delete the current LAN interface.
  • Page 39 Robustel GoRugged R2000 User Guide When select DHCP Mode as Server, the window will display as the following screenshot. DHCP Server Item Description Default Enable Click the switch to show “ON” and to enable DHCP function. Server: Lease IP address to DHCP clients which connect to LAN.
  • Page 40 Robustel GoRugged R2000 User Guide DHCP Server Item Description Default You can enter some other options of DHCP server in this field. Expert Options Null format: config-desc;config-desc, e.g. log-dhcp;quiet-dhcp Debug Enable Enable this function; it will output the DHCP information to syslog.
  • Page 41 Robustel GoRugged R2000 User Guide Multiple IP Item Description Default Select lan0 or lan1. When eth0 used As WAN, lan1 is unavailable. Interface lan0 And lan1 available only if it was selected by eth0 or eth1 in Ethernet->Port Setting section.
  • Page 42 Robustel GoRugged R2000 User Guide Status This section shows the Ethernet port status and connected devices. Click every row, the details status information will be display under the row. Please refer to the screenshot below. RT_UG_R2000_v.1.2.0 15.12.2015 41 /120 Confidential...

  • Page 43: Interface->Ethernet

    Robustel GoRugged R2000 User Guide 3.8 Interface->Ethernet This section allow user to set the parameter of the Ethernet port. One port should be assigned to lan0 a least. Click button, configure the port setting. Ethernet Item Description Default Index The index of Ethernet port, cannot edit.
  • Page 44 Robustel GoRugged R2000 User Guide Click” ” to edit the parameters. When choose “Network Type type” is “Auto”; When choose “band select type” is “Specify”. Cellular Item Description Default Index Show the index of the SIM. SIM Card Set the current SIM card.
  • Page 45 Robustel GoRugged R2000 User Guide Status This section allow user to check the cellular status information. Status Item Description Modem Status Show the status of the radio module. Current SIM Show the SIM card which the router works with currently: SIM1 or SIM2.

  • Page 46: Interface->Wifi (Optional)

    Robustel GoRugged R2000 User Guide 3.10 Interface->WiFi (Optional) R2000 router support both WiFi AP and WiFi client. The factory default setting of R2000 is as WiFi AP. This section allow user to configure the parameters of WiFi AP. WiFi AP Configure R2000 as a WiFi AP Go to System->Device Configuration, select the WiFi mode as AP, click “Submit”...
  • Page 47 Robustel GoRugged R2000 User Guide Access Point Item Description Default Enable Click to “ON” side, enable the WiFi access point function. Select from “11bgn Mixed”, “11b only”, “11g only” and “11n only”. 11bgn Mixed: Three protocols mixed in order to backward compatibility...
  • Page 48 Robustel GoRugged R2000 User Guide Access Point Item Description Default Select from “Auto”, “WPA” and “WPA2”. WPA Version Auto: R2000 will choose the most suitable selection automatically. Auto WPA2 is a stronger security feature than WPA. Select from “Auto”, “TKIP” and “AES”.
  • Page 49 Robustel GoRugged R2000 User Guide Advanced Item Description Default Max Associated Stations Set the max number of association station to access the router AP. Set the frequency of the router AP broadcast Beacon, which was used for Beacon Interval wireless network synchronization.
  • Page 50 Robustel GoRugged R2000 User Guide Advanced Item Description Default Select from “20MHz”, “40MHz”. Channel Width 40 MHz channel width provides twice the data rate available over a single Auto 20 MHz channel. Enable WMM Click “ON” to enable WMM. Click “ON” to enable Short GI (Short Guard Interval), short GI is a blank...

  • Page 51: Interface->Wlan (Optional)

    Robustel GoRugged R2000 User Guide This section allow user to check the AP status and those WiFi client had connected to R2000 AP. 3.11 Interface->WLAN (Optional) R2000 router support both WiFi AP and WiFi client. The factory default setting of R2000 is as WiFi AP.
  • Page 52 Robustel GoRugged R2000 User Guide After R2000 was configured successfully as a WiFi client, there will appear a WLAN tab in the Interface menu, just as the screenshot below. Configure the WiFi AP please go to the Link Manager->WLAN tab, and the way of configuration refer to the 3.6 Interface->Link Manager section.

  • Page 53: Network->Route

    Robustel GoRugged R2000 User Guide User can scan the surrounding SSIDs in this section. Please click , and then click “Scan” to scan the surrounding SSIDs. 3.12 Network->Route This section allows user to set the static route. (The maximum number of the static route is twenty.) Static Route Click “...
  • Page 54 Robustel GoRugged R2000 User Guide Static Route Item Description Default Index Show the index of the static route. Destination Define the destination IP address. Null Netmask Define the Netmask of the destination. Null Gateway Define the gateway of the destination.

  • Page 55: Network->Firewall

    Robustel GoRugged R2000 User Guide 3.13 Network->Firewall This section allows users to set the Firewall and the related parameters, which includes “Filter”, “Port Mapping” and “DMZ”. Filtering Click “ ” to add filtering rules. (The maximum number of the filtering rule is twenty.) RT_UG_R2000_v.1.2.0...
  • Page 56 Robustel GoRugged R2000 User Guide Filtering Item Description Default Enable Filtering Enable filtering rules. Select from “Accept” and “Drop”. Accept: Router will accept all the connecting requests except the hosts Default Filtering Policy which fit the filter list. accept Drop: Router will only reject the connecting requests from the hosts which fit the filter list.
  • Page 57 Robustel GoRugged R2000 User Guide Filtering Item Description Default Select from “All”, “TCP”, “UDP”, “ICMP”, “TCP-UDP”. Protocol If you don’t know what kinds of protocol of your application, we recommend you select “ALL”. Action Select from “Accept”, “Drop”. Drop Port Mapping Click “...

  • Page 58: Vpn->Ipsec

    Robustel GoRugged R2000 User Guide Item Description Default Select to enable the DMZ function. Enable DMZ DMZ host is a host on the internal network that has all ports exposed, except those ports otherwise forwarded. Host IP Address Enter the IP address of the DMZ host which on the internal network.
  • Page 59 Robustel GoRugged R2000 User Guide Tunnel Click “ ” to add tunnel settings. (The maximum number of the tunnel is three.) Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable IPSec Tunnel. Description Enter some simple words about the IPSec Tunnel.
  • Page 60 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “PSK”. When choose “Authentication Type” to “CA”. RT_UG_R2000_v.1.2.0 15.12.2015 59 /120 Confidential...
  • Page 61 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “xAuth PSK”. When choose “Authentication Type” to “xAuth CA”. IKE Settings Item Description Default Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1. If the IP address of one end of an IPSec tunnel is obtained dynamically,...
  • Page 62 Robustel GoRugged R2000 User Guide IKE Settings Item Description Default Select from “MD5” and “SHA1”to be used in IKE negotiation. Authentication MD5: Uses HMAC-SHA1. Algorithm SHA1: Uses HMAC-MD5. Select from “3DES”, “AES128” and “AES256”to be used in IKE negotiation. 3DES: Uses the 3DES algorithm in CBC mode and 168-bit key.
  • Page 63 Robustel GoRugged R2000 User Guide When choose the “Tunnel Setting->General Setting->Protocol” to “ESP”. When choose the “Tunnel Setting->Protocol” to “AH”. SA Settings Item Description Default Select from “3DES”, “AES128” and “AES256” when you select “ESP” in “Protocol”; Encrypt Algorithm Note: Higher security means more complex implementation and lower 3DES speed.
  • Page 64 Robustel GoRugged R2000 User Guide SA Settings Item Description Default received from the peer. DPD: Dead peer detection. DPD irregularly detects dead IKE peers. When the local end sends an IPSec packet, DPD checks the time the last IPSec packet was received from the peer. If the time exceeds the DPD interval, it sends a DPD hello to the peer.

  • Page 65: Vpn->Openvpn

    Robustel GoRugged R2000 User Guide x509 Item Description Default @private.key @crl.pem Index Show the index of the certificate file. Null Filename Show the name of the certificate file. Null File Size Show the size of the certificate file. Null Last Modification Show the timestamp of that the last time to modify the certificate file.
  • Page 66 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “Preshared”. RT_UG_R2000_v.1.2.0 15.12.2015 65 /120 Confidential...
  • Page 67 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “Password”. RT_UG_R2000_v.1.2.0 15.12.2015 66 /120 Confidential...
  • Page 68 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “X509CA”. RT_UG_R2000_v.1.2.0 15.12.2015 67 /120 Confidential...
  • Page 69 Robustel GoRugged R2000 User Guide When choose “Authentication Type” to “X509CA Password”. Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable OpenVPN tunnel. Description Enter some simple words about the OpenVPN Tunnel. Null Mode Select from “P2P”, “Client”.
  • Page 70 Robustel GoRugged R2000 User Guide Tunnel Settings Item Description Default Select from “None”, “Preshared”, “Password”, “X509CA” and “X509CA Authentication Type None Password”. “None” and “Preshared” type just work with p2p mode. When the “Mode” is “P2P”. Local IP Null Define the local IP address of OpenVPN tunnel.
  • Page 71 Robustel GoRugged R2000 User Guide Advanced Settings Item Description Default Add an additional layer of HMAC authentication on top of the TLS Enable HMAC Firewall control channel to protect against DoS attacks. Enable the PKCS#12 certificate. It is an exchange of digital certificate Enable PKCS#12 encryption standard, used to describe personal identity information.

  • Page 72: Vpn->Gre

    Robustel GoRugged R2000 User Guide 3.15 VPN->GRE This section allows users to set the OpenVPN and the related parameters. Click “ ” to add tunnel settings. (The maximum number of the tunnel is three.) Item Description Default Index Show the index of the tunnel.

  • Page 73: Services->Syslog

    Robustel GoRugged R2000 User Guide 3.16 Services->Syslog This section allows users to set the syslog parameters. Syslog Syslog Settings Item Description Default Enable Click to enable Syslog setting. Select form “Debug”, “Info”, “Notice”, “Warning”, “Error” which from low to Syslog Level Notice high.

  • Page 74: Services->Event

    Robustel GoRugged R2000 User Guide 3.17 Services->Event This section allows users to set the Event parameters. Event @ Event Item Description Default Signal Quality Router will generate log event when signal quality less than the threshold, 0 Threshold means disable.
  • Page 75 Robustel GoRugged R2000 User Guide Notification@ Event Item Description Default Index The index of event notification group. Description Enter some simple words to describe the Notify Group. Null Click to enable router to send event notification SMS. Set the phone number Sent SMS that is used for receiving event notification, and use ‘;’to separate each...
  • Page 76 Robustel GoRugged R2000 User Guide Query @ Event Item Description Default Select the events’ save position from “RAM”, “NVM”. Save Position RAM: Random-access memory. NVM: Non-Volatile Memory. Event will be filtered according to the Filter Message that the user set. Click the Filter Message Refresh button, the filtered event will be displayed in the follow box.

  • Page 77: Services->Ntp

    Robustel GoRugged R2000 User Guide 3.18 Services->NTP This section allows users to set the NTP parameters. Timezone Settings @ NTP Item Description Default Time Zone Select your local time zone. +08:00 Specify the time zone with Daylight Saving Time in TZ environment variable...

  • Page 78: Services->Sms

    Robustel GoRugged R2000 User Guide 3.19 Services->SMS This section allows users to set the SMS parameters. Item Description Default Enable SMS Management Click to enable SMS Management function. Select Authentication Type from “Password”, “Phonenum”, “Both”. Password: use the same username and password as WEB manager for authentication.

  • Page 79: Services->Ddns

    Robustel GoRugged R2000 User Guide User can test the current SMS service whether it is available in this section. SMS Testing Item Description Default Enter the specified phone number which will receive the SMS from R2000 Phone Number Null router.

  • Page 80: Services->Vrrp

    Robustel GoRugged R2000 User Guide DDNS Item Description Default Enable Click to enable DDNS function. Select the DDNS service from “DynDNS”, “NO-IP”, “3322”. Service Provider Note: the DDNS service only can be used after registered by DynDNS Corresponding service provider.

  • Page 81: Services->Ssh

    Robustel GoRugged R2000 User Guide VRRP Item Description Default Enable Click to enable VRRP protocol. Interface Select from “lan0” and “lan1”. lan0 Group ID Specify which VRRP group of this router belong to. Priority Enter the priority value from 1 to 255. The larger value has higher priority.

  • Page 82: Services->Robustlink (Optional App)

    3.23 Services->Robustlink (optional APP) Robustlink is a M2M management platform, which is developed independently by the Robustel Company. R2000 can be managed by Robustlink. User can set the relative parameters in this section. This function is as an APP which needs to install into R2000 in System->APP Center unit.
  • Page 83 Robustel GoRugged R2000 User Guide R2000 support report the Event which has happened to Robustlink platform. In this section, user can select the events those will be reported to Robustlink. Event Report Item Description Events Switch “ON” to enable the event.

  • Page 84: Services->Web Server

    Robustel GoRugged R2000 User Guide 3.24 Services->Web Server This section allows users to modify the parameters of Web Server. Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R2000’s Web Server. On a Web server, port 80 is the port that the server "listens to" or expects to HTTP Port receive from a Web client.

  • Page 85: Services->Snmp (Optional App)

    Robustel GoRugged R2000 User Guide Certificate Management Item Description Default CA: a digital certificate issued by CA center. Private Key: a private key file. Click “Browse” to select the certificate file in your computer, and then click HTTPS Certificate “Import” to import this file into your router.
  • Page 86 Robustel GoRugged R2000 User Guide SNMP Agent @ SNMP Item Description Default Readonly Community Enter the community name which was allowed only to get the status of router. null Name Readwrite Community Enter the community name which was allowed to get the status and set the...
  • Page 87 Robustel GoRugged R2000 User Guide SNMP Trap Item Description Default Enable SNMP Trap Switch “ON” to enable SNMP Trap feature. Disable Version Select from “SNMPv1”, “SNMPv2” and “SNMPv3”. SNMPv2 Receiver Address Enter NMS (Network Management System) IP address. Null Receiver Port...

  • Page 88: Services->Advanced

    Robustel GoRugged R2000 User Guide 3.26 Services->Advanced This section allows users to set the Advanced and parameters. System @ Advanced Item Description Default Set the device name to distinguish different devices you have installed. Device Name router Valid characters: a-z, A-Z, 0-9, ., -.

  • Page 89: System->Debug

    Robustel GoRugged R2000 User Guide 3.27 System->Debug This section allow user to check and download the syslog details. Syslog Details @ Syslog Item Description Default Select form “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to Log Level Debug high. The lower level will output more syslog in detail.

  • Page 90: System->Update

    Robustel GoRugged R2000 User Guide separate more than one filter message, such as “keyword1&keyword2”. Select from “Manual Refresh”, “5 Seconds”, “10 Seconds”, “20 Seconds”and“30 Seconds”. User can select these intervals to refresh the log Manual Refresh information displayed in the follow box. Select “manual refresh”, user should Refresh click the refresh button to refresh the syslog.

  • Page 91: System->App Center

    Robustel GoRugged R2000 User Guide 3.29 System->APP Center This section allow user to add a new function to R2000 router. And the new function will be in the form of an APP file which could be installed in R2000 router. In general, the App which had installed will display in Service section.

  • Page 92: System->Tools

    Robustel GoRugged R2000 User Guide 3.30 System->Tools This section provides users three tools: Ping, Traceroute and Sniffer. Ping @ Tools Item Description Default IP address Enter the ping destination IP address or domain name. Null Number of requests Specify the number of ping requests.
  • Page 93 Robustel GoRugged R2000 User Guide At Debug @ Tools Item Description Enter a At command in Command box, then click button to send the At Command command to the cellular module. Result It will display the AT commands which respond from the cellular module in this box.
  • Page 94 Robustel GoRugged R2000 User Guide Traceroute @ Tools Item Description Default Trace Address Enter the trace destination IP address or domain name. Null Specify the max trace hops. Router will stop tracing if the trace hops has met Trace Hops max value no matter the destination has been reached or not.

  • Page 95: System->Profile

    Robustel GoRugged R2000 User Guide 3.31 System->Profile This section allows users to import or export the configuration file, and restore the router to factory default setting. Import Configuration File @ Profile Define what to do about the configs that is not contained in the imported file.

  • Page 96: System->Device Configuration

    Robustel GoRugged R2000 User Guide 3.32 System->Device Configuration Enable or disable the WAN interface. Advanced Device Settings Item Description Default Switch button to ON to configure eth0 as WAN interface. eth0 Used As Switch button to OFF, it will disable the WAN interface, eth0 will recovery to be LAN interface.
  • Page 97 Robustel GoRugged R2000 User Guide Super User Item Description Default One router has only one super user account. Under this account, user has the Super User highest authority include modify, add and manage those user accounts. The old password of super user which default is “admin”, valid characters: a-z,...

  • Page 98: Chapter 4 Configuration Examples

    Robustel GoRugged R2000 User Guide Chapter 4 Configuration Examples 4.1 Cellular 4.1.1 Cellular Dial-Up This section shows users how to configure the primary and backup SIM card of Cellular Dial-up. Interface-->Link Manager->General Setting Select WWAN1 as Primary Link. Click to set the WWAN1’s parameter according to the current ISP.
  • Page 99 Robustel GoRugged R2000 User Guide The modifications will take effect after click “Submit” and “save and apply” button. Interface-->Cellular Click to set the SIM card’s parameter according to the application requirement. The modifications will take effect after click “Submit” and “save and apply” button.

  • Page 100: Sms Remote Control

    Robustel GoRugged R2000 User Guide 4.1.2 SMS Remote Control R2000 supports remote control via SMS. User can use following commands to get the status of R2000, and set all the parameters of R2000. There are three authentication types for SMS control. You can select from “Password”, “Phonenum” and “Both”.
  • Page 101 Robustel GoRugged R2000 User Guide <netmask>255.255.0.0</netmask> <mtu>1500</mtu> SMS cmd: set lan network 1 interface lan0 set lan network 1 ip 172.16.99.11 set lan network 1 netmask 255.255.0.0 set lan network 1 mtu 1500 The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS.

  • Page 102: Network

    Robustel GoRugged R2000 User Guide 4.2 Network 4.2.1 IPSEC VPN Note: the configuration of server and client is as follows. RT_UG_R2000_v.1.2.0 15.12.2015 101 /120 Confidential...
  • Page 103 Robustel GoRugged R2000 User Guide IPSecVPN_SERVER: Cisco 2811: RT_UG_R2000_v.1.2.0 15.12.2015 102 /120 Confidential...
  • Page 104 Robustel GoRugged R2000 User Guide IPSecVPN_CLIENT: VPN--->IPSec--->Tunnel Then click “ ”. RT_UG_R2000_v.1.2.0 15.12.2015 103 /120 Confidential...
  • Page 105 Robustel GoRugged R2000 User Guide The modification will take effect after “Submit-->Save&Apply-->Reboot”. The comparison between server and client is as following picture: RT_UG_R2000_v.1.2.0 15.12.2015 104 /120 Confidential...

  • Page 106: Openvpn

    Robustel GoRugged R2000 User Guide 4.2.2 OPENVPN Note: the configuration of two points is as follows. OPENVPN (p2p): Point 1 VPN--->OpenVPN--->OpenVPN Click “ ”. RT_UG_R2000_v.1.2.0 15.12.2015 105 /120 Confidential...
  • Page 107 Robustel GoRugged R2000 User Guide The modifications will take effect after click “Submit-->Save&Apply”. Point 2 VPN--->OpenVPN--->OpenVPN Click “ ”. RT_UG_R2000_v.1.2.0 15.12.2015 106 /120 Confidential...
  • Page 108 Robustel GoRugged R2000 User Guide The modifications will take effect after click “Submit-->Save&Apply”. RT_UG_R2000_v.1.2.0 15.12.2015 107 /120 Confidential...

  • Page 109: Gre Vpn

    Robustel GoRugged R2000 User Guide The comparison between point 1 and point 2 is as following picture: 4.2.3 GRE VPN VPN--->GRE--->GRE RT_UG_R2000_v.1.2.0 15.12.2015 108 /120 Confidential...
  • Page 110 Robustel GoRugged R2000 User Guide Click “ ”. GRE-1： The modifications will take effect after click “Submit-->Save&Apply”. GRE-2: The modifications will take effect after click “Submit-->Save&Apply”. The comparison between point 1 and point 2 is as following picture: RT_UG_R2000_v.1.2.0 15.12.2015...

  • Page 111: Chapter 5 Introductions For Cli

    Robustel GoRugged R2000 User Guide Chapter 5 Introductions for CLI 5.1 What’s CLI The R2000 command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection.

  • Page 112: How To Configure The Cli

    Robustel GoRugged R2000 User Guide 5.2 How to Configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips Description Typing a question mark “?” will show you the help information.
  • Page 113 Robustel GoRugged R2000 User Guide Downloading R2000-firmware-s 100% |*******************************| 5018k 0:00:00 ETA Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success # config save_and_apply // save and apply current configuration, make you configuration effect...
  • Page 114 Robustel GoRugged R2000 User Guide # set link_manager primary_link (space+?) Enum Primary Link (wwan1/wwan2/wan/WiFi) # set link_manager primary_link wwan1 //select “wwan1” as primary_link //setting succeed # set link_manager link 1 type Type desc Description connection_type Connection Type wwan WWAN Settings...
  • Page 115 Robustel GoRugged R2000 User Guide interface = lan0 ip = 192.168.0.1 netmask = 255.255.255.0 mtu = 1500 dhcp { enable = true mode = server relay_server = "" pool_start = 192.168.0.2 pool_end = 192.168.0.100 netmask = 255.255.255.0 gateway = ""...
  • Page 116 Robustel GoRugged R2000 User Guide … # config save_and_apply // save and apply current configuration, make you configuration effect Example 5: CLI for setting Cellular # show cellular all sim { id = 1 card = sim1 phone_number = ""...
  • Page 117 Robustel GoRugged R2000 User Guide band_gsm_850 = false band_gsm_900 = false band_gsm_1800 = false band_gsm_1900 = false band_wcdma_850 = false band_wcdma_900 = false band_wcdma_1900 = false band_wcdma_2100 = false band_lte_800 = false band_lte_850 = false band_lte_900 = false band_lte_1800 = false...

  • Page 118: Commands Reference

    Robustel GoRugged R2000 User Guide band_wcdma_900 WCDMA 900 band_wcdma_1900 WCDMA 1900 band_wcdma_2100 WCDMA 2100 band_lte_800 LTE 800 (band 20) band_lte_850 LTE 850 (band 5) band_lte_900 LTE 900 (band 8) band_lte_1800 LTE 1800 (band 3) band_lte_1900 LTE 1900 (band 2) band_lte_2100...

  • Page 119: Glossary

    Robustel GoRugged R2000 User Guide Glossary Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting...
  • Page 120 Robustel GoRugged R2000 User Guide Abbreviations Description kbps kbits per second L2TP Layer 2 Tunneling Protocol local area network Light Emitting Diode Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network Password Authentication Protocol...
  • Page 121 Robustel GoRugged R2000 User Guide Abbreviations Description Universal Serial Bus USSD Unstructured Supplementary Service Data Volts Direct current VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network RT_UG_R2000_v.1.2.0 15.12.2015 120 /120 Confidential...
