Connect the External Antenna (SMA Type)

2.2
Connect the SMA external antenna connector to the router's antenna interface and twist tightly. Make sure the
antenna is within the correct frequency range provided by the operator and with 50 Ohm impedance.
Note: Recommended torque for mounting is 0.35N.m.

POE Connection

2.3
R2000 Dual supports for POE function (Voltage Range: 48 to 57 VDC) , which can electrify the network terminal

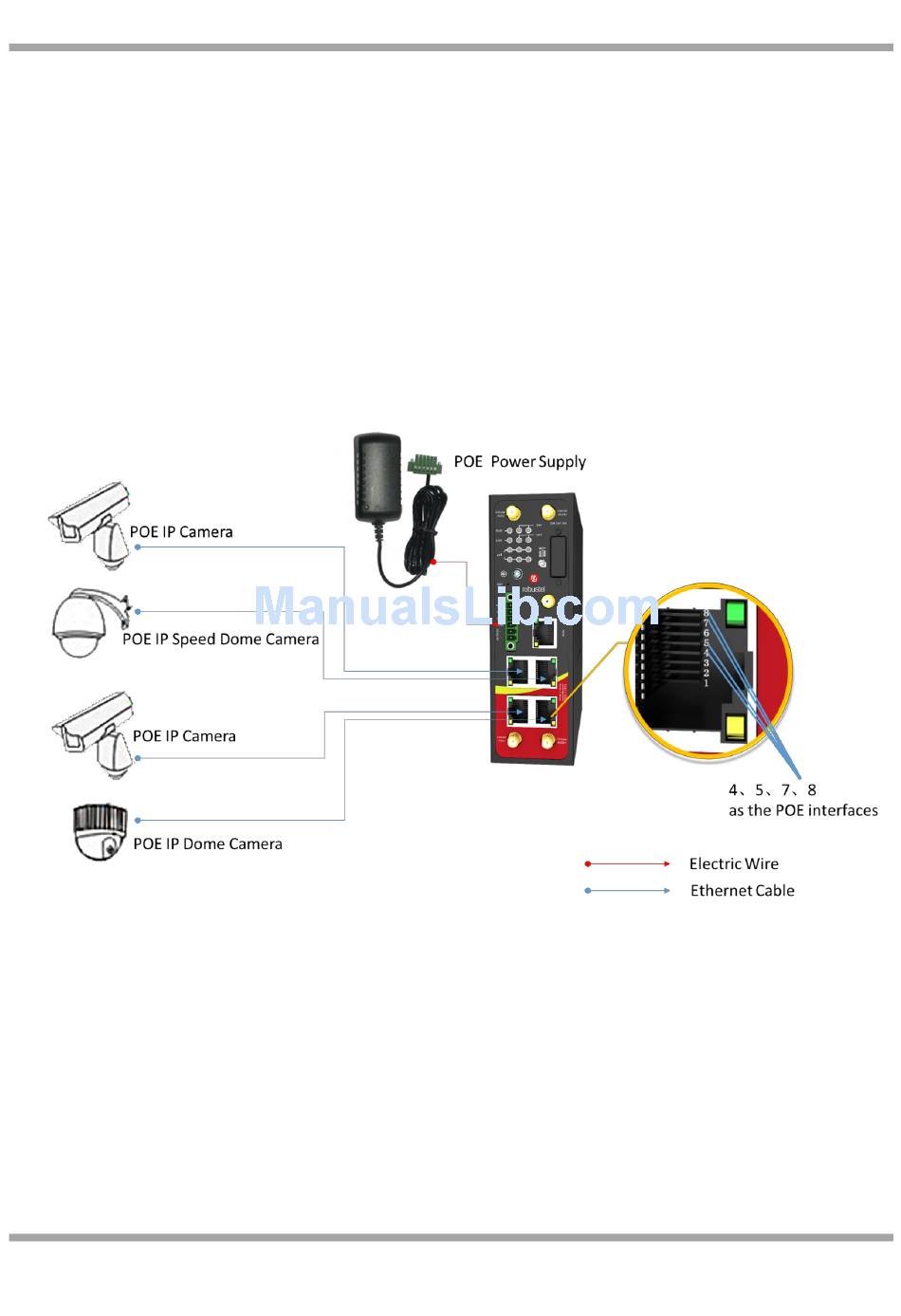

devices such as IP camera and other WLAN AP etc. See figure below for more details:

Ground the Router

2.4
Router grounding helps prevent the effects of noise due to electromagnetic interference (EMI). Connect the router to
the site ground wire by the ground screw before powering on.
Note: This product is appropriate to be mounted on a sound grounded device surface, such as a metal panel.
