User Manual
Package Contents
Before installing your R2000 Ent Router, verify the kit contents as following.

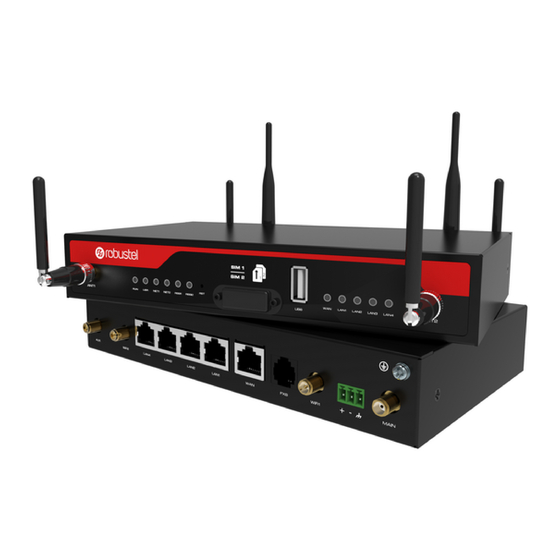

1 x Robustel R2000 Ent Industrial Dual Module Cellular VPN Router
with Voice
1 x Quick Start Guide with download link of other documents or tools
Note: If any of the above items is missing or damaged, please contact your
Robustel sales representative.
Environmental Requirements
Input voltage: 9 to 36V DC
Power consumption: 350 mA@12 V in idle state, 500 mA (peak) @12 V in communication state
Operating temperature: -25 to +70 °C
Relative humidity: 5 to 95% RH
Installation and Configuration Quick Guide
Industrial Dual Module Cellular VPN Router with Voice
5 Eth + 1 Voice/RS-232/RS-485 + 1 USB Host
Optional Accessories (sold separately)
3G/4G SMA cellular antenna
(stubby/magnet optional)
RP-SMA WiFi antenna
(stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
L-type screwdriver
-1-
R2000 Ent
Ethernet cable
RJ11 to RJ11 phone
connectivity cable
AC/DC power adapter
(12V DC, 1.0 A; EU/US/
UK/AU plug optional)
Advertisement
Table of Contents
Related Manuals for Robustel R2000 Ent
Summary of Contents for Robustel R2000 Ent
- Page 1 R2000 Ent Industrial Dual Module Cellular VPN Router with Voice 5 Eth + 1 Voice/RS-232/RS-485 + 1 USB Host Package Contents Before installing your R2000 Ent Router, verify the kit contents as following. Optional Accessories (sold separately) ...
-
Page 2: Hardware Introduction
Hardware Introduction 1. Overview 2. Dimensions 3. RJ11 Interface Voice Direction RINGD/RDC TIPD/TDC... -
Page 3: Led Indicators
Name Color Status Description RS-232 Direction NET2 Green On, solid Network is joined successfully by using the Module2 card and worked (Represents for in an optimum one the Module2) Router Device On, blinking Network is joined successfully but worked in a lower-level than Router ... -
Page 4: Usb Interface
7. Ethernet Port R2000 Ent Router has five Ethernet ports, including WAN, ETH1, ETH2, ETH3 and ETH4. And every Ethernet port corresponds to a specific LED indicator in the bottom view of the router. For details about status, see the table below. -
Page 5: Hardware Installation
Hardware Installation 1. Insert or Remove SIM Card Note: Recommended torque for inserting is 0.5 N.m, and the maximum allowed is 0.7 N.m. Use the specific M2M SIM card when the device is working in extreme temperature (temperature exceeding 40 °C), because the regular card for long-time working in harsh environment will be disconnected frequently. -
Page 6: Mount The Router
Wall mounting (measured in mm) Connect an Ethernet cable to any port marked ETH1~4 at the top of the R2000 Ent, and connect the other end of the cable to your computer. 6. Power Supply Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall. - Page 7 PC Configuration There are two methods to get IP address for the PC. One is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the same subnet of the router. Please refer to the steps below. Here take Windows 7 as example, and the configuration for windows system is similar.
-
Page 8: Router Configuration
Note: If enter the wrong username or password over six times, the online. The Ping detection increases the reliability and also costs the login web will be locked for 5 minutes. data traffic. After logging in, the home page of the R2000 Ent Router’s web interface is displayed, for example. - Page 9 Click on the right-most of WWAN1 to enter the configuration window. When finished, click Submit > Save & Apply for the configuration to take effect. 3. Check the Cellular Connection Status The window is displayed as below when enabling the “Automatic APN Click Interface >...
- Page 10 Configure Lan1 Click Interface > Ethernet > Ports, click eth1’s edit button, choose lan1 There are five Ethernet ports on R2000 Ent Router, including WAN, as the assigned port, and click “Submit”. ETH1, ETH2, ETH3 and ETH4. The WAN on the router can only be configured as a WAN port, while ETH1~ETH4 can only be configured as LAN ports.
- Page 11 Choose lan1 as the interface, and configure its IPv4 address and Configure WAN Netmask. Click Interface > Link Manager > General Settings, choose “WAN” as the primary link, and choose “None” as the backup link. Click the edit button of WAN to enter its configuration window. When finished, click Submit >...
- Page 12 When finished, click Submit > Save & Apply for the configuration to take effect. Guangzhou Robustel LTD Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel: 86-20-29019902 Email: info@robustel.com Web: www.robustel.com -12-...
