Robustel R2000 dual Installation And Configuration Quick Manual

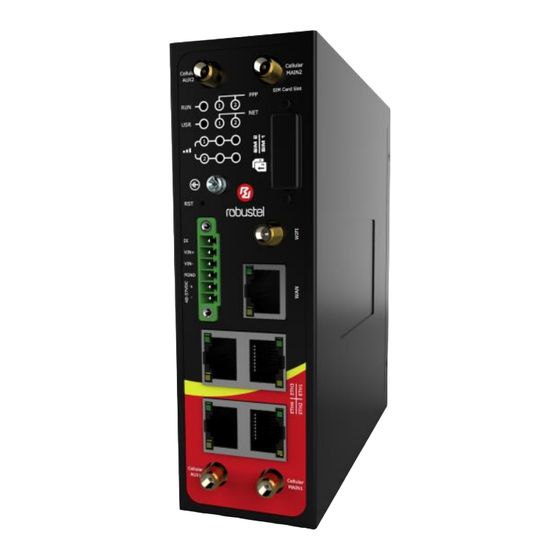

Dual module industrial cellular vpn router
Hide thumbs Also See for R2000 dual:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Robustel GoRugged R2000 Dual Quick Guide
Installation and Configuration
Quick Guide
R2000 Dual--
Dual Module Industrial Cellular VPN Router
Package List
Before installing the R2000 Dual router, verify the kit contents as following:
Robustel R2000 Dual router
Power terminal block
Document and software CD
Optional Accessories
AC/DC power supply adapter, POE power supply adapter
35mm DIN rail mounting kit or wall mounting kit
SMA cellular antenna (HSPA+/LTE)
RP-SMA Wi-Fi antenna (stubby or magnetic)
Notify your sales representative if any of the above items is missing or damaged.

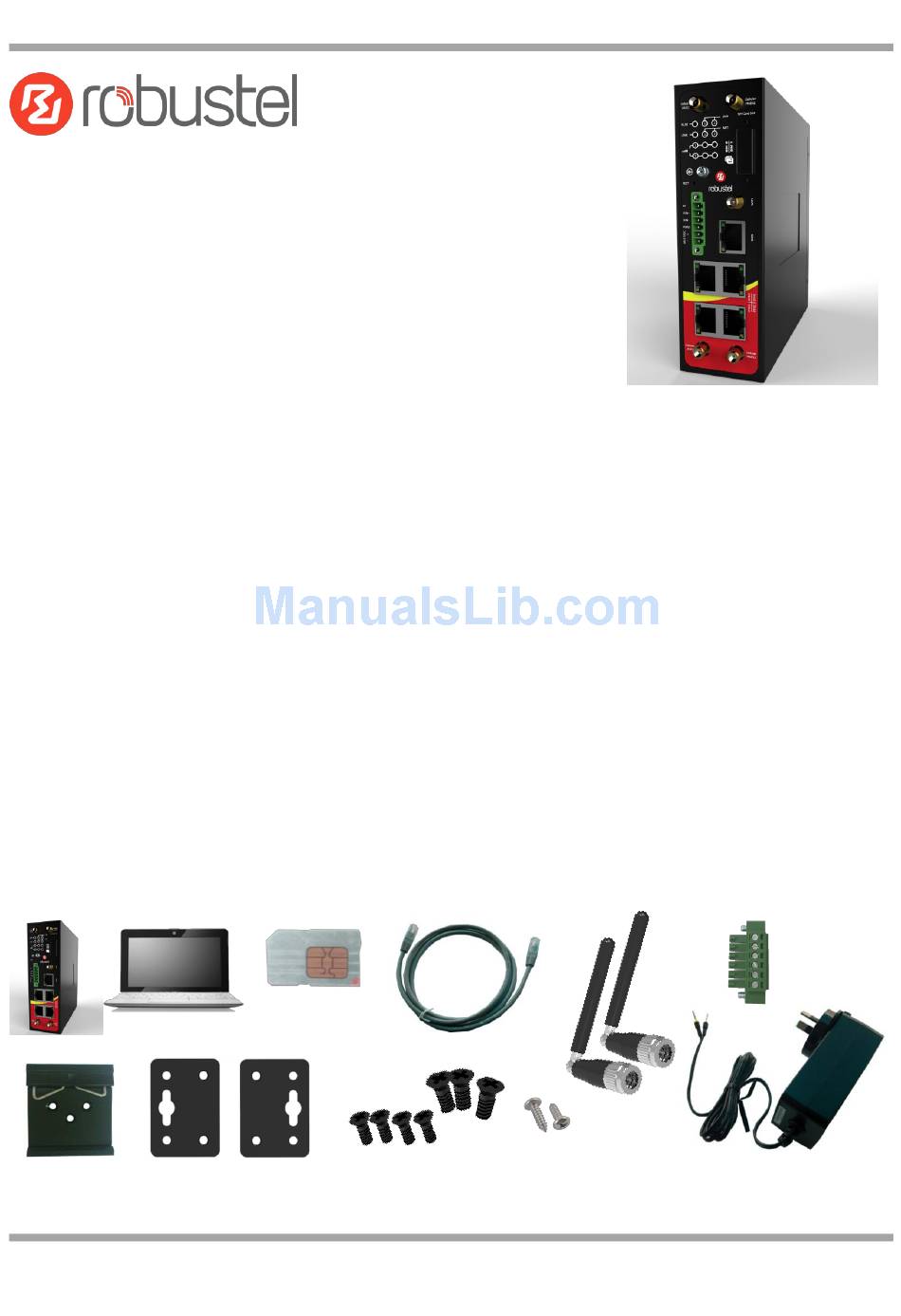

Preparation before Testing
R2000 Dual router x1, PC x1, SIM card x1, Ethernet cable x1, SMA antenna x2, power supplies with terminal block x1
(35mm DIN rail mounting kit x1, M3*6 cross recessed countersunk head screw x3; or wall mounting kit x2, M2.5*4
cross recessed countersunk head screw x4, M3 drywall screw x2)
RT_QG_R2000 Dual_v.1.0.2
Confidential
11.11.2016
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2000 dual and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel R2000 dual

Summary of Contents for Robustel R2000 dual

  • Page 1 Preparation before Testing R2000 Dual router x1, PC x1, SIM card x1, Ethernet cable x1, SMA antenna x2, power supplies with terminal block x1 (35mm DIN rail mounting kit x1, M3*6 cross recessed countersunk head screw x3; or wall mounting kit x2, M2.5*4 cross recessed countersunk head screw x4, M3 drywall screw x2) RT_QG_R2000 Dual_v.1.0.2...

  • Page 2: Environment Requirements

    Robustel GoRugged R2000 Dual Quick Guide Environment Requirements Power input: 9 to 48 VDC Power consumption: 100 mA @ 12 V in idle state, 800 mA (peak) @ 12 V in communication state Operating temperature: -40 to +70°C Relative humidity: 5 to 95% RH RT_QG_R2000 Dual_v.1.0.2...

  • Page 3: Chapter 1 Hardware Introduction

    Robustel GoRugged R2000 Dual Quick Guide Chapter 1 Hardware Introduction 1.1 Overview RT_QG_R2000 Dual_v.1.0.2 11.11.2016 3/21 Confidential...
  • Page 4 OpenVPN: OpenVPN is disconnected. IPSec: IPSec is disconnected. Wi-Fi: Wi-Fi is disconnected. Green Cannot connect to the best network. On, blinking green (LED 1 represents SIM 1, E.g. When R2000 Dual uses the 4G SIM card but RT_QG_R2000 Dual_v.1.0.2 11.11.2016 4/21 Confidential...

  • Page 5: Reset Button

    1.5 Ethernet Port R2000 Dual router has five Ethernet ports, Eth0 is WAN port and Eth1~Eth4 are LAN ports. Four LAN ports support POE function. Every Ethernet port has two LED indicators, and each indicator has three states. The yellow one is Link Indicator and the green one doesn’t mean anything.

  • Page 6: Chapter 2 Hardware Installation

    Robustel GoRugged R2000 Dual Quick Guide Chapter 2 Hardware Installation Install the SIM Card Remove the slot cover  Make sure the router is powered off. To remove the slot cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM card slots.

  • Page 7: Connect The External Antenna (Sma Type)

    Note: Recommended torque for mounting is 0.35N.m. POE Connection R2000 Dual supports for POE function (Voltage Range: 48 to 57 VDC) , which can electrify the network terminal devices such as IP camera and other WLAN AP etc. See figure below for more details: Ground the Router Router grounding helps prevent the effects of noise due to electromagnetic interference (EMI).

  • Page 8: Mount The Router

    Robustel GoRugged R2000 Dual Quick Guide Mount the Router The R2000 Dual router supports for horizontal surface placement, DIN rail mounting and wall mounting. Two methods for mounting the router  Wall mounting: Use 4 pcs of M2.5*4 cross recessed countersunk head screws to fix the router on the two wall mounting kits, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.

  • Page 9: Connect The Router To The Pc

    Connect the router’s Eth1/Eth2/Eth3/Eth4 to a PC via a standard crossed network cable. Power Supply R2000 Dual router supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.

  • Page 10: Chapter 3 Initial Configuration

    There are two methods to configure the IP address on PC, one is to obtain IP address automatically from DHCP server, and another is to configure a static IP address manually within the same subnet of R2000 Dual router. The configuration for Windows system is similar.
  • Page 11 Robustel GoRugged R2000 Dual Quick Guide 2. Click Properties in the window of Local Area Connection Status. 3. Select Internet Protocol Version (TCP/IPv4) and click Properties. RT_QG_R2000 Dual_v.1.0.2 11.11.2016 11/21 Confidential...
  • Page 12 4. Two ways for configuring the IP address of PC: Obtain an IP address automatically: Use the following IP address (configured a static IP address manually within the same subnet of R2000 Dual router): 5. Click OK to finish the configuration.

  • Page 13: Login The Router

    From your web browser, enter the IP address of the router. The default IP address is 192.168.0.1, though the actual address may vary. In the login page, enter the username and password of R2000 Dual router. If enter the wrong username or password six times, the login web will be locked for 5 minutes.
  • Page 14 Robustel GoRugged R2000 Dual Quick Guide After logging in the R2000 Dual, the home page of the R2000 Dual router’s web interface is displayed, as the screenshot below. This section allows users to save configuration, reboot router, logout. When the R2000 Dual is logging in at the first time, there will be a pop-up tab “...
  • Page 15 Robustel GoRugged R2000 Dual Quick Guide browser without a password before timeout. Submit Click to submit the modification on current configuration page. Cancel Click to cancel the modification on current configuration page. Note: The steps of how to modify configuration are as bellow: Modify in one page;...
  • Page 16 Robustel GoRugged R2000 Dual Quick Guide Click of WWAN1 to enter the link configuration window, and then pop up a window as below: Enable Automatic APN Selection, the window is displayed as below: Enable Ping, the window is displayed as below: The modifications will take effect after clicking Submit and Save &...
  • Page 17 3.4 Configure the IP of Router Configure Lan0 For R2000 Dual, the maximum number of LAN interface is four which include lan0, lan1, lan2 and lan3. Lan0~lan3 is available when they were selected randomly by eth1~eth4. All of eth1~eth4 were default to lan0, and the default IP is 192.168.0.1/255.255.255.0.
  • Page 18 Robustel GoRugged R2000 Dual Quick Guide Go to Interface > LAN, for example: Click to edit the configuration of the current LAN interface, modify the IP Address and Netmask of lan0. And then click Submit and Save & Apply button to make the modification take effect.
  • Page 19 Robustel GoRugged R2000 Dual Quick Guide Go to Interface > LAN, and click button: Select the interface as lan1, and configure the IP Address and Netmask of lan1: click to make the modification take effect. Configure Multiple IP Go to Interface > Multiply IP, for example: Click to edit the Multiple IP of the LAN interface.
  • Page 20 Robustel GoRugged R2000 Dual Quick Guide Configure the WAN interface parameters such as the Connection Type as below: Enable Ping, the window is displayed as below: RT_QG_R2000 Dual_v.1.0.2 11.11.2016 20/21 Confidential...
  • Page 21 IP address of R2000 Dual router; Check whether the DHCP server function has been closed factitiously if this is not the first use of this R2000 Dual router. If yes, configure the IP address of the PC’s LAN interface manually or restore to the factory default settings of the R2000 Dual router via the Reset button.
