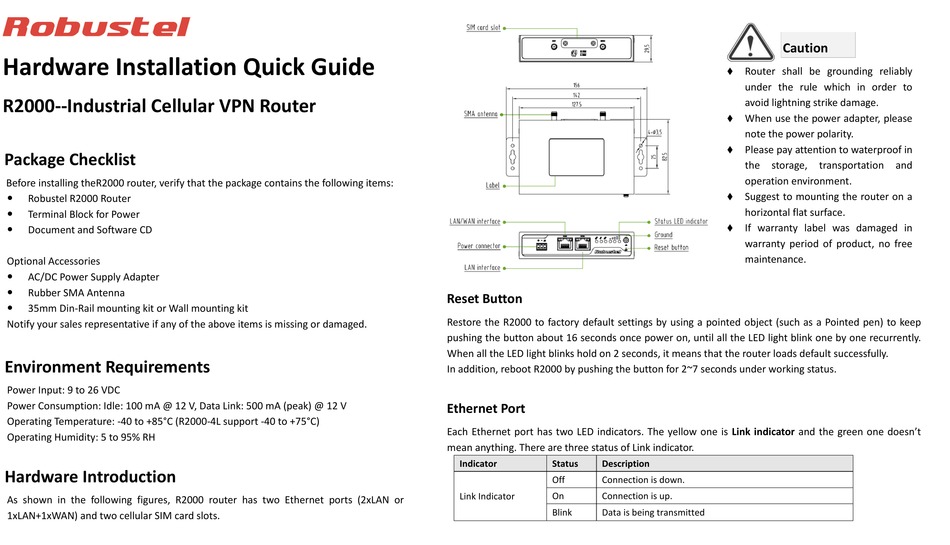

Hardware Installation Quick Guide
R2000--Industrial Cellular VPN Router
Package Checklist
Before installing theR2000 router, verify that the package contains the following items:
Robustel R2000 Router
Terminal Block for Power
Document and Software CD
Optional Accessories
AC/DC Power Supply Adapter
Rubber SMA Antenna
35mm Din-Rail mounting kit or Wall mounting kit
Notify your sales representative if any of the above items is missing or damaged.
Environment Requirements
Power Input: 9 to 26 VDC
Power Consumption: Idle: 100 mA @ 12 V, Data Link: 500 mA (peak) @ 12 V
Operating Temperature: -40 to +85°C (R2000-4L support -40 to +75°C)
Operating Humidity: 5 to 95% RH

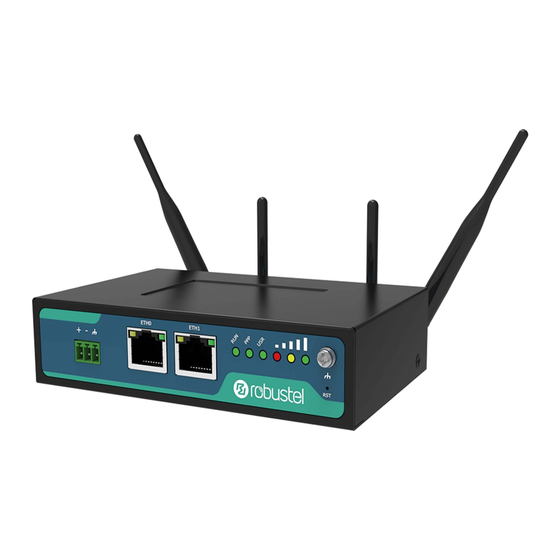

Hardware Introduction
As shown in the following figures, R2000 router has two Ethernet ports (2xLAN or
1xLAN+1xWAN) and two cellular SIM card slots.
Reset Button
Restore the R2000 to factory default settings by using a pointed object (such as a Pointed pen) to keep
pushing the button about 16 seconds once power on, until all the LED light blink one by one recurrently.
When all the LED light blinks hold on 2 seconds, it means that the router loads default successfully.
In addition, reboot R2000 by pushing the button for 2~7 seconds under working status.
Ethernet Port
Each Ethernet port has two LED indicators. The yellow one is Link indicator and the green one doesn't
mean anything. There are three status of Link indicator.
Indicator
Status
Description
Off
Connection is down.
Link Indicator
On
Connection is up.
Blink
Data is being transmitted
Caution
Router shall be grounding reliably
under the rule which in order to
avoid lightning strike damage.
When use the power adapter, please
note the power polarity.
Please pay attention to waterproof in
the storage, transportation and
operation environment.
Suggest to mounting the router on a
horizontal flat surface.
If warranty label was damaged in
warranty period of product, no free
maintenance.
