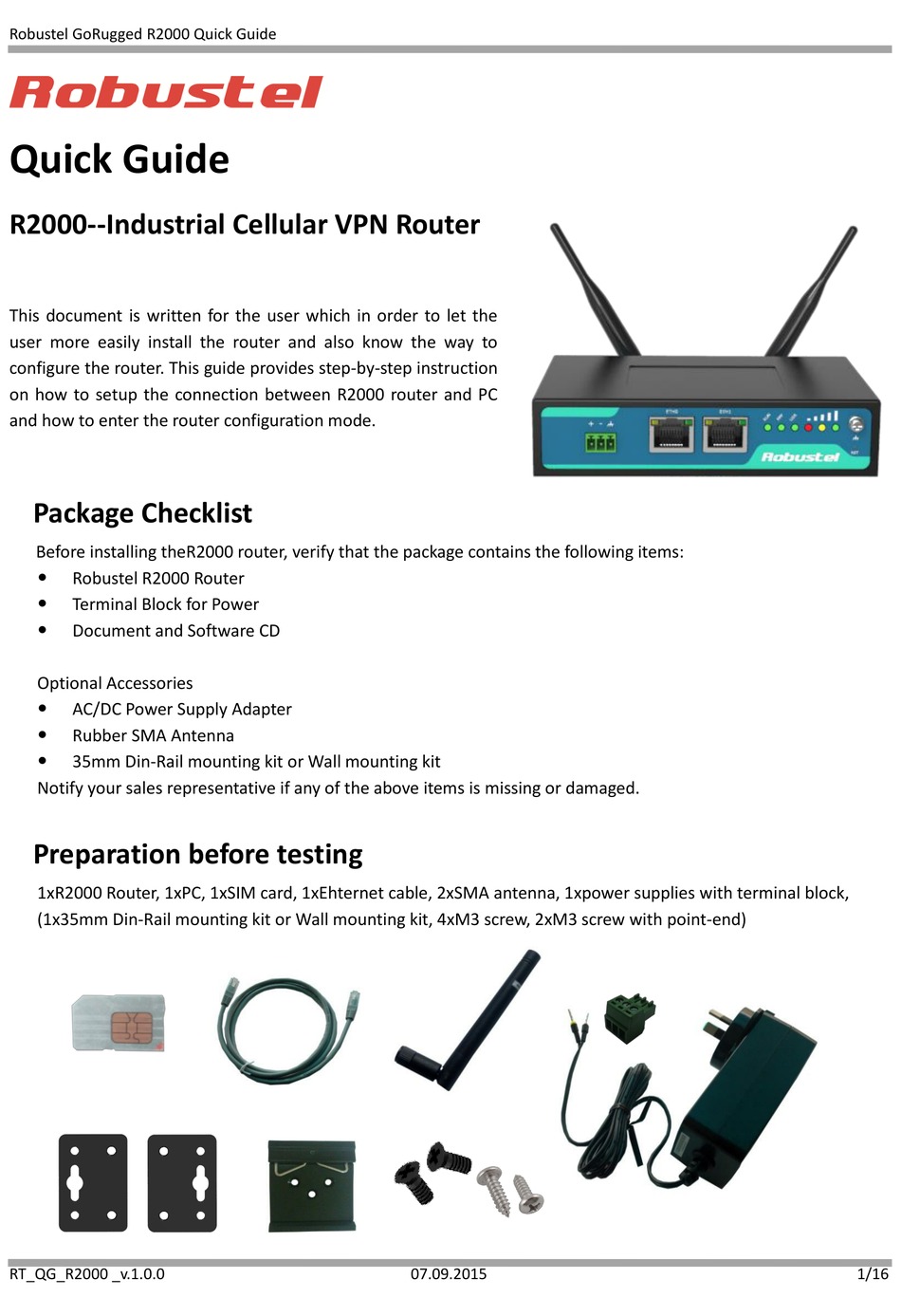

Robustel GoRugged R2000 Quick Guide
Quick Guide
R2000--Industrial Cellular VPN Router
This document is written for the user which in order to let the
user more easily install the router and also know the way to
configure the router. This guide provides step-by-step instruction
on how to setup the connection between R2000 router and PC
and how to enter the router configuration mode.
Package Checklist
Before installing theR2000 router, verify that the package contains the following items:

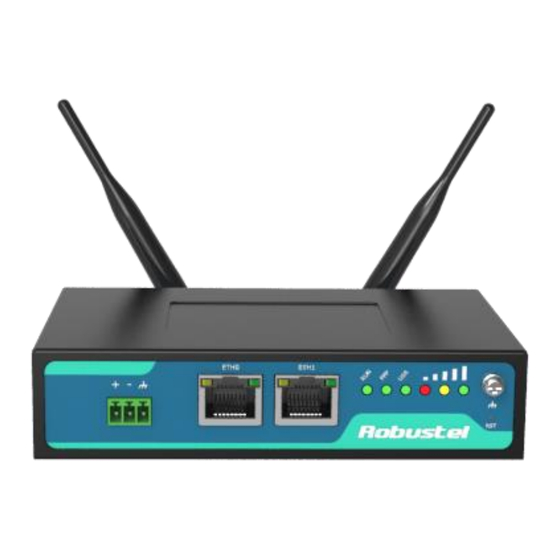

Robustel R2000 Router
Terminal Block for Power
Document and Software CD
Optional Accessories
AC/DC Power Supply Adapter
Rubber SMA Antenna
35mm Din-Rail mounting kit or Wall mounting kit
Notify your sales representative if any of the above items is missing or damaged.
Preparation before testing
1xR2000 Router, 1xPC, 1xSIM card, 1xEhternet cable, 2xSMA antenna, 1xpower supplies with terminal block,
(1x35mm Din-Rail mounting kit or Wall mounting kit, 4xM3 screw, 2xM3 screw with point-end)
RT_QG_R2000 _v.1.0.0
07.09.2015
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel GoRugged R2000

Summary of Contents for Robustel GoRugged R2000

  • Page 1 Robustel GoRugged R2000 Quick Guide Quick Guide R2000--Industrial Cellular VPN Router This document is written for the user which in order to let the user more easily install the router and also know the way to configure the router. This guide provides step-by-step instruction on how to setup the connection between R2000 router and PC and how to enter the router configuration mode.

  • Page 2: Environment Requirements

    Robustel GoRugged R2000 Quick Guide Environment Requirements Power Input 9 to 26 VDC Power Consumption: Idle: 100 mA @ 12 V, Data Link: 500 mA (peak) @ 12 V Operating Temperature -40 to +85°C Operating Humidity 5 to 95% RH Chapter 1 Interface Introduction 1.1 Overview...

  • Page 3: Reset Button

    Robustel GoRugged R2000 Quick Guide Blinking PPP Indicator: Null Green PPP Indicator: PPP connection is up. PPP Indicator: PPP connection is down. SIM: using backup SIM card. Blinking NET: register to a low level network. SIM: working fine. Off after blinking NET: working fine.

  • Page 4: Chapter 2 Hardware Installation

    Robustel GoRugged R2000 Quick Guide Indicator Status Description Connection is down. Link Indicator Connection is up. Blink Data is being transmitted Chapter 2 Hardware Installation Install SIM Card Remove slot cover  Make sure power supply is disconnected. Use a screwdriver to unscrew the screw on the cover, and then remove the cover, you could find the SIM Card slots.

  • Page 5: Ground The Router

    Robustel GoRugged R2000 Quick Guide Ground the Router Grounding and wire router helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground by screwing to the grounding surface before connecting devices. Note: This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel.

  • Page 6: Chapter 3 Initial Configuration

    Robustel GoRugged R2000 Quick Guide Power Supply The power supply range is 6 to 26 VDC. Note: Please take care about the polarity, and do not make reverse connection. There are two lines connecting to the power supply adapter, as it illustrates on the power supply adapter label, the line printed with letters needs to be connected with the positive polarity, and the striped line needs to be connected with the negative polarity.
  • Page 7 Robustel GoRugged R2000 Quick Guide The configuration for windows system is similar. 1. Go to Start \Control Panel \Network and Internet\Network Connections. Double-click Local Area Connection. 2. In the Local Area Connection Status window, click Properties. RT_QG_R2000 _v.1.0.0 07.09.2015 7/16...
  • Page 8 Robustel GoRugged R2000 Quick Guide 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Configure the IP address of PC. Automatically obtain IP address from DHCP server RT_QG_R2000 _v.1.0.0 07.09.2015 8/16...

  • Page 9: Login Router

    Robustel GoRugged R2000 Quick Guide Manually configured static IP address within the same subnet of R2000 router 5. Click OK to finish the configuration. 3.2 Login Router Before configuring your router, you need to know the following default settings. Item...
  • Page 10 Robustel GoRugged R2000 Quick Guide Input the username and password and login the R2000. After logging in the R2000, the home page of the R2000 router’s web interface is displayed, just like the screenshot below. This section allows users to save configuration, reboot router, logout.

  • Page 11: Troubleshoot

    Robustel GoRugged R2000 Quick Guide Control Panel Item Description Button Click to save the current configuration into router’s flash and apply Save & Apply the modification on every configuration page, to make the modification taking effect. Reboot Click to reboot the router.

  • Page 12: Check The Network Connection

    Robustel GoRugged R2000 Quick Guide If the IP of R2000 is forgot, how to do? Press the “RST” button to restore the router to factory default configuration, then login R2000 with the IP: “192.168.0.1”. (Reset process please refer to Interface Introduction->Reset button section) 3.4 Check the network connection...
  • Page 13 Robustel GoRugged R2000 Quick Guide If R2000 fail to obtain IP from ISP, please check the cellular setting. Go to tab Interface->Cellular->WWAN1, click Switch button to “OFF”, disable Automatic APN Selection. And then enter the user name and password which were provided by the ISP.

  • Page 14: Configure Lan1

    Robustel GoRugged R2000 Quick Guide Configure lan1 Go to the Interface->Ethernet tab click to configure eth0 or eth1. Choose lan1 as the port assignment, click to make the modification take effect. Note: lan1 is available only when it was chosen by Eth0 or Eth1 in Interface->Ethernet tab.

  • Page 15: Configure Wan

    Robustel GoRugged R2000 Quick Guide Configure WAN Go to the Interface->Ethernet tab click to configure eth0 as WAN.Click on the right of port Assignment item, then click “here” . Switch “ON” to enable eth0 as WAN. Click and reboot device to make the modification take effect.
