Chapter 2 Hardware Installation

Install the SIM Card

2.1

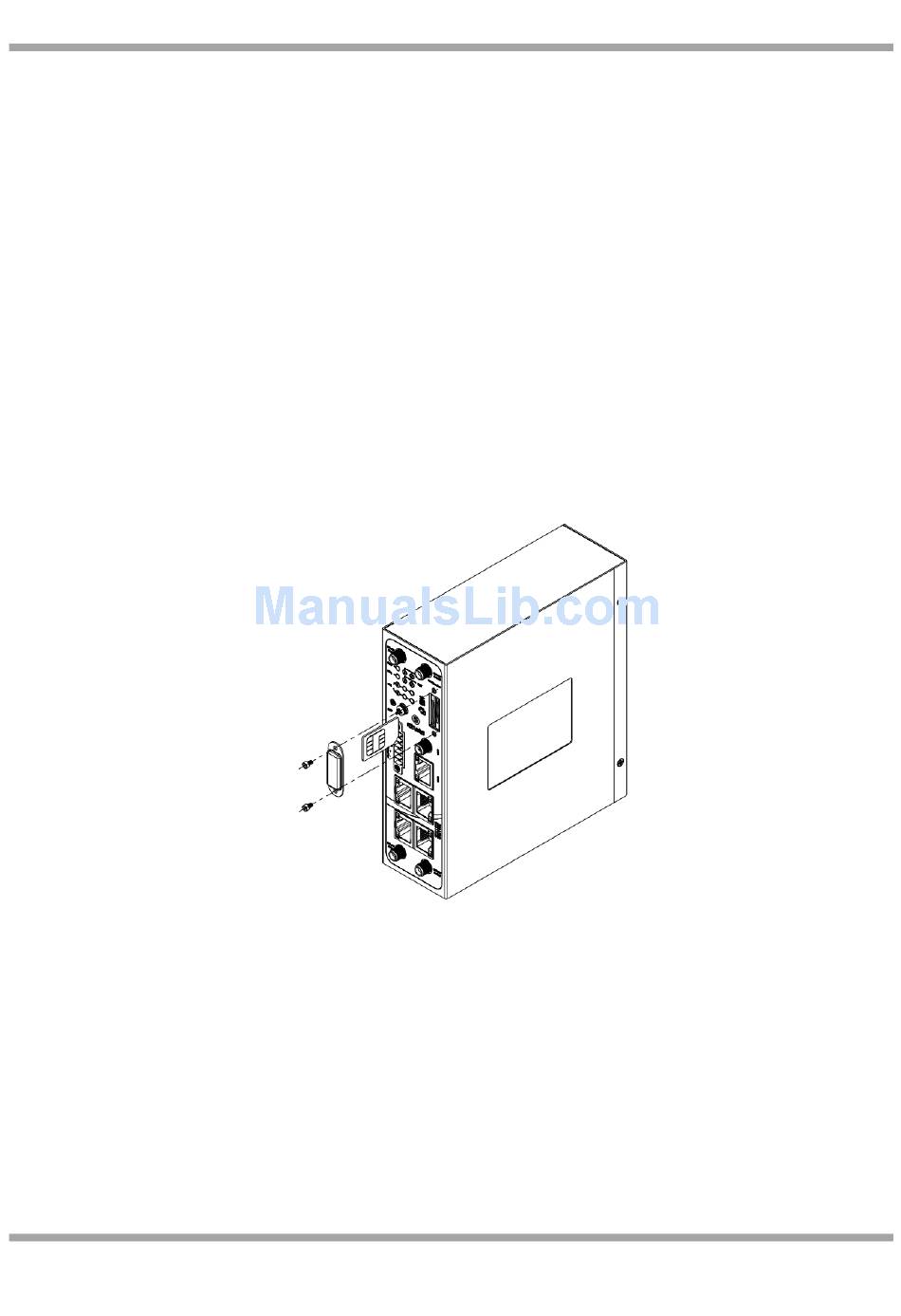

Remove the slot cover

1. Make sure the router is powered off.
2. To remove the slot cover, loosen the screws associated with the cover by using a screwdriver and then find the
SIM card slots.
Insert the SIM Card

3. To insert the SIM card, press the card with fingers until snap on and then tighten the screws associated with the
cover by using a screwdriver.
Remove the SIM Card

4. Make sure the router is powered off.
5. To remove the SIM card, press the card with fingers until pop out and then take out the SIM card.
Note:
1. Recommended torque for inserting is 0.5N.m, and the maximum allowed is 0.7N.m.
2. Use the specific M2M SIM card when the device is working in extreme temperature (temperature exceeding
0-40℃), because the regular SIM card for long-time working in harsh environment (temperature exceeding
0-40℃) will be disconnected frequently.
3. Do not forget to twist the cover tightly to avoid being stolen.
4. Do not touch the metal of the SIM card surface in case information in the card will lost or be destroyed.
5. Do not bend or scratch the SIM card.
6. Keep the SIM card away from electricity and magnetism.
7. Make sure router is powered OFF before inserting or removing the SIM card.
