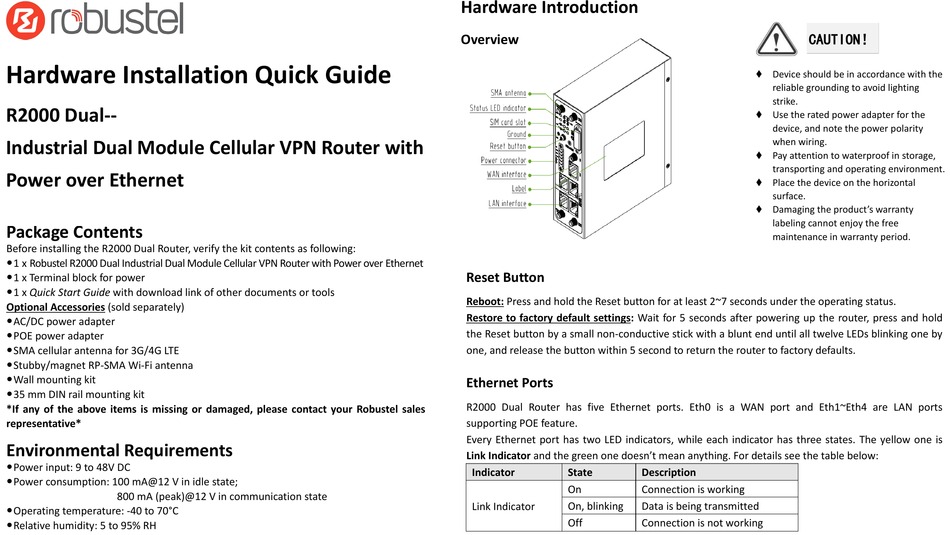

Robustel R2000 Dual Hardware Installation Quick Manual

Hardware Installation Quick Guide
R2000 Dual--
Industrial Dual Module Cellular VPN Router with

Power over Ethernet

Package Contents

Before installing the R2000 Dual Router, verify the kit contents as following:
1 x Robustel R2000 Dual Industrial Dual Module Cellular VPN Router with Power over Ethernet
1 x Terminal block for power
1 x Quick Start Guide with download link of other documents or tools
Optional Accessories (sold separately)
AC/DC power adapter
POE power adapter
SMA cellular antenna for 3G/4G LTE
Stubby/magnet RP-SMA Wi-Fi antenna
Wall mounting kit
35 mm DIN rail mounting kit
*If any of the above items is missing or damaged, please contact your Robustel sales
representative*

Environmental Requirements

Power input: 9 to 48V DC
Power consumption: 100 mA@12 V in idle state;
800 mA (peak)@12 V in communication state
Operating temperature: -40 to 70°C
Relative humidity: 5 to 95% RH

Hardware Introduction

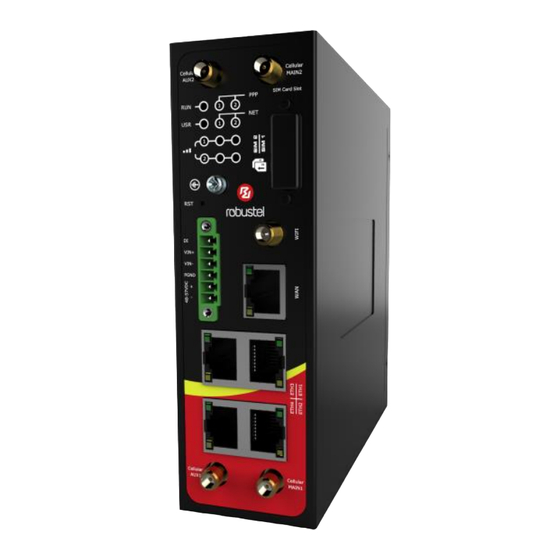

Overview
Reset Button
Reboot: Press and hold the Reset button for at least 2~7 seconds under the operating status.
Restore to factory default settings: Wait for 5 seconds after powering up the router, press and hold
the Reset button by a small non-conductive stick with a blunt end until all twelve LEDs blinking one by
one, and release the button within 5 second to return the router to factory defaults.
Ethernet Ports
R2000 Dual Router has five Ethernet ports. Eth0 is a WAN port and Eth1~Eth4 are LAN ports
supporting POE feature.
Every Ethernet port has two LED indicators, while each indicator has three states. The yellow one is
Link Indicator and the green one doesn't mean anything. For details see the table below:
Indicator State
On
Link Indicator On, blinking
Off
CAUTION！

Device should be in accordance with the
reliable grounding to avoid lighting
strike.

Use the rated power adapter for the
device, and note the power polarity
when wiring.

Pay attention to waterproof in storage,
transporting and operating environment.

Place the device on the horizontal
surface.
 Damaging the product's warranty
labeling cannot enjoy the free
maintenance in warranty period.
Description
Connection is working
Data is being transmitted
Connection is not working
