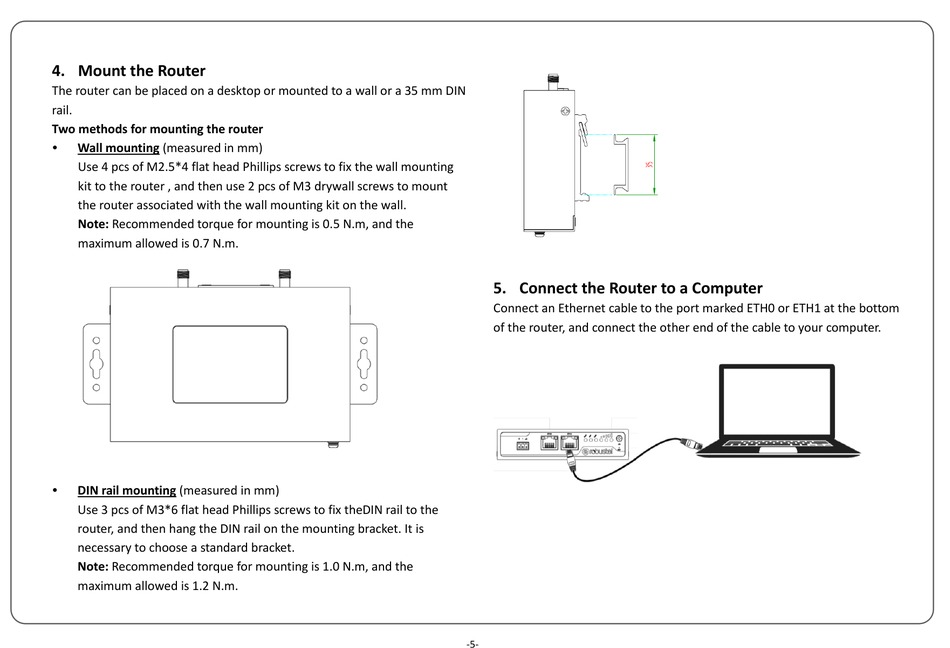

4. Mount the Router

The router can be placed on a desktop or mounted to a wall or a 35 mm DIN
rail.
Two methods for mounting the router

Wall mounting (measured in mm)
Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting
kit to the router , and then use 2 pcs of M3 drywall screws to mount
the router associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 0.5 N.m, and the
maximum allowed is 0.7 N.m.

DIN rail mounting (measured in mm)
Use 3 pcs of M3*6 flat head Phillips screws to fix theDIN rail to the
router, and then hang the DIN rail on the mounting bracket. It is
necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the
maximum allowed is 1.2 N.m.
5. Connect the Router to a Computer
Connect an Ethernet cable to the port marked ETH0 or ETH1 at the bottom
of the router, and connect the other end of the cable to your computer.
-5-
