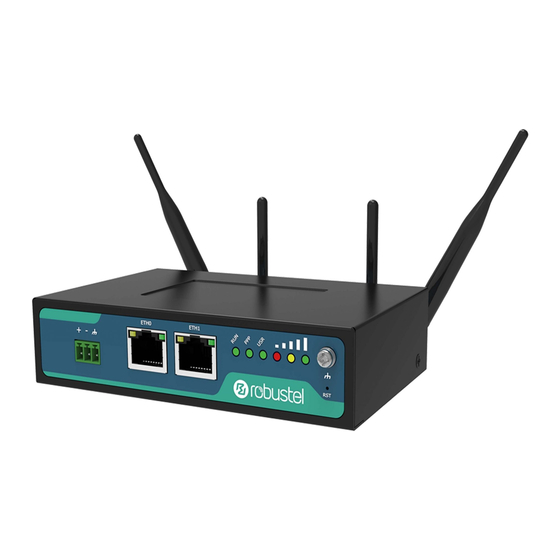

Robustel R2000 Installation And Configuration Quick Manual
Industrial dual sim cellular
Hide thumbs
Also See for R2000:
- User manual (124 pages) ,
- Installation and configuration quick manual (24 pages) ,
- Installation and configuration manual (18 pages)
Table of Contents
Advertisement
Quick Links

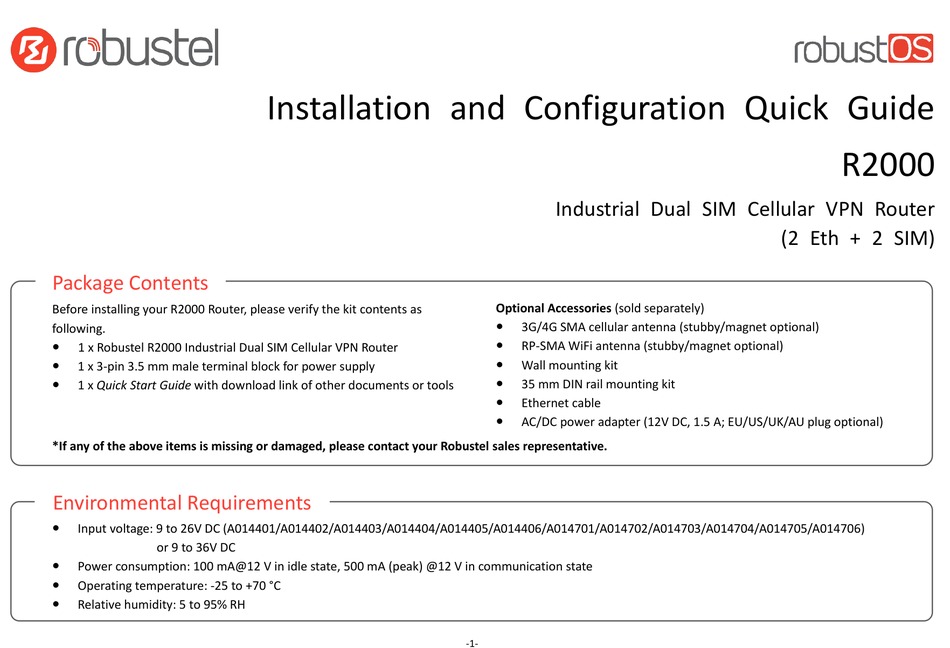

Package Contents
Before installing your R2000 Router, please verify the kit contents as
following.
1 x Robustel R2000 Industrial Dual SIM Cellular VPN Router
1 x 3-pin 3.5 mm male terminal block for power supply
1 x Quick Start Guide with download link of other documents or tools
*If any of the above items is missing or damaged, please contact your Robustel sales representative.
Environmental Requirements
Input voltage: 9 to 26V DC (A014401/A014402/A014403/A014404/A014405/A014406/A014701/A014702/A014703/A014704/A014705/A014706)
or 9 to 36V DC
Power consumption: 100 mA@12 V in idle state, 500 mA (peak) @12 V in communication state
Operating temperature: -25 to +70 °C
Relative humidity: 5 to 95% RH
Installation and Configuration Quick Guide
Industrial Dual SIM Cellular VPN Router
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
RP-SMA WiFi antenna (stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
Ethernet cable
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
-1-
R2000
(2 Eth + 2 SIM)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robustel R2000
Summary of Contents for Robustel R2000
-
Page 1: Package Contents
Ethernet cable AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional) *If any of the above items is missing or damaged, please contact your Robustel sales representative. Environmental Requirements Input voltage: 9 to 26V DC (A014401/A014402/A014403/A014404/A014405/A014406/A014701/A014702/A014703/A014704/A014705/A014706) or 9 to 36V DC ... -
Page 2: Hardware Introduction
Hardware Introduction 1. Overview 2. PIN Assignment Function Polarity Positive Negative 3. LED Indicators Name Color Status Description Green On, fast blinking Router is powered on (System is initializing) (250 mSec blink time) On, blinking Router starts operating (500 mSec blink time) Router is powered off Green On, solid... -
Page 3: Reset Button
WiFi is enabled and working properly 5. Ethernet Port WiFi is disabled or not working properly There are two Ethernet ports on R2000 Router, including ETH0 and ETH1. The Green On, solid High Signal strength (21-31) is available ETH0 on the router can be configured as either a WAN port or LAN port, also... -
Page 4: Hardware Installation
Hardware Installation 1. Insert or Remove SIM Card Note: Recommended torque for inserting is 0.5 N.m, and the maximum allowed is 0.7 N.m. Use the specific card when the device is working in extreme temperature (temperature exceeding 40 °C), because the regular card for long-time working in harsh environment will be disconnected frequently. -
Page 5: Mount The Router
4. Mount the Router The router can be placed on a desktop or mounted to a wall or a 35 mm DIN rail. Two methods for mounting the router Wall mounting (measured in mm) Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting kit to the router , and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall. -
Page 6: Power Supply
6. Power Supply If you would like to power the R2000 Router through the Ethernet port, please refer to the following topology to connect the R2000 to a PSE (Power Sourcing Equipment). The range of PoE power voltage is 48~57V DC. - Page 7 PC Configuration There are two methods to get IP address for the PC. One is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the same subnet of the router. Please refer to the steps below. Here take Windows 7 as example, and the configuration for windows system is similar.
-
Page 8: Router Configuration
Router Configuration 1. Log in the Router After logging in, the home page of the R2000 Router’s web interface is displayed, for example. To log in to the management page and view the configuration status of your router, please follow the steps below. - Page 9 Click on the right-most of WWAN1 to enter the configuration window. When finished, click Submit > Save & Apply for the configuration to take effect. 3. Check the Cellular Connection Status The window is displayed as below when enabling the “Automatic APN Selection”...
- Page 10 Configure Lan1 Click Interface > Ethernet > Ports, click eth0’s edit button, choose There are two Ethernet ports on R2000 Router, including ETH0 and “lan1” as the assigned port, and click “Submit”. ETH1. The ETH0 on the router can be configured as either a WAN port Note: By default, there is a LAN port (lan0) in the list.
- Page 11 Configure Multiple IP Click Interface > LAN > Multiple IP, and click the edit button of lan0. Click the edit button of WAN to enter its configuration window. Note: You may click to edit the multiple IP of the LAN port, or click to delete the multiple IP of the LAN port.
- Page 12 When finished, click Submit > Save & Apply for the configuration to take effect. Guangzhou Robustel Technologies Co., Ltd. Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel: 86-20-29019902 Email: info@robustel.com Web: www.robustel.com -12-...
