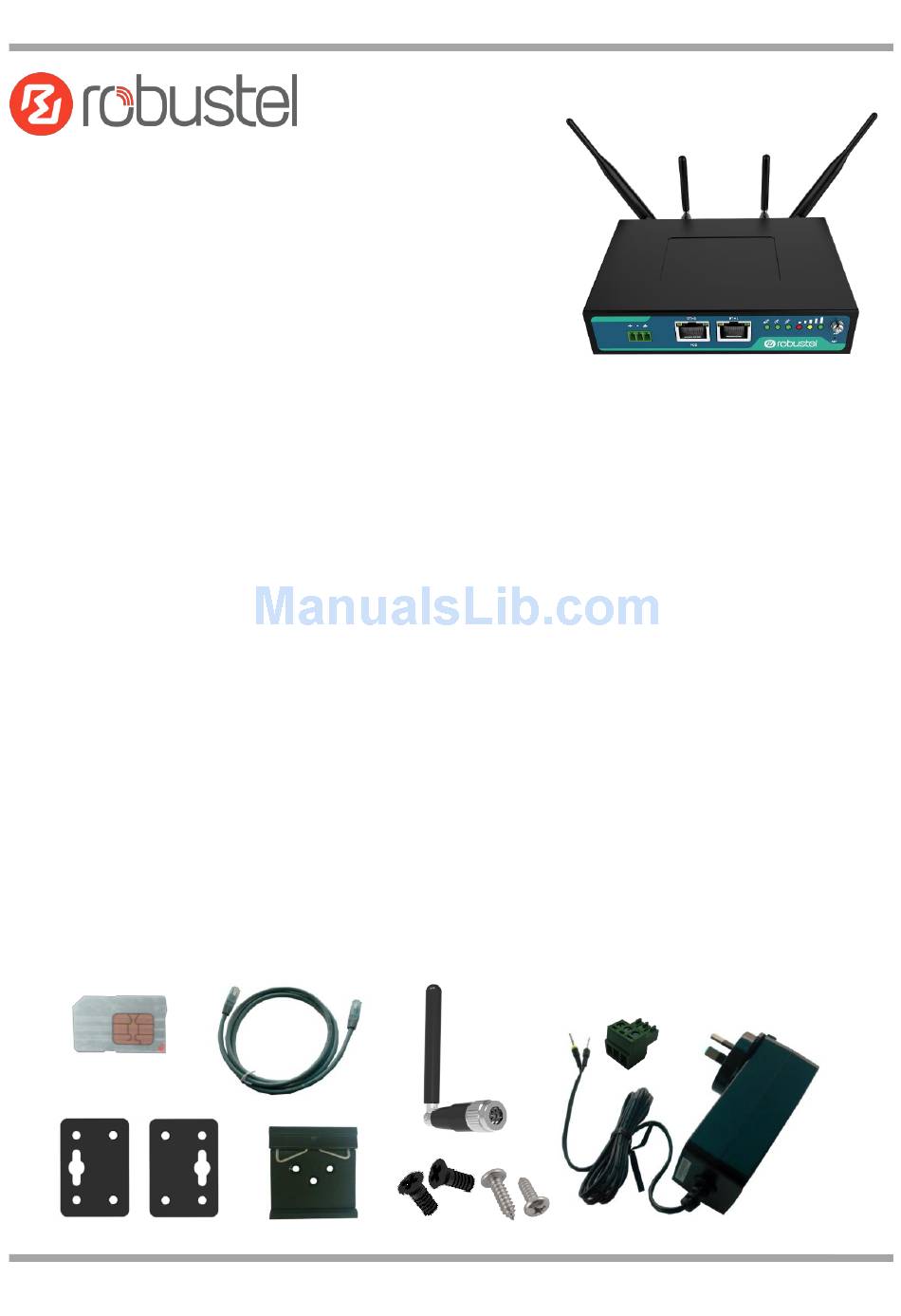

Robustel GoRugged R2000 Quick Guide
Installation and Configuration
Quick Guide

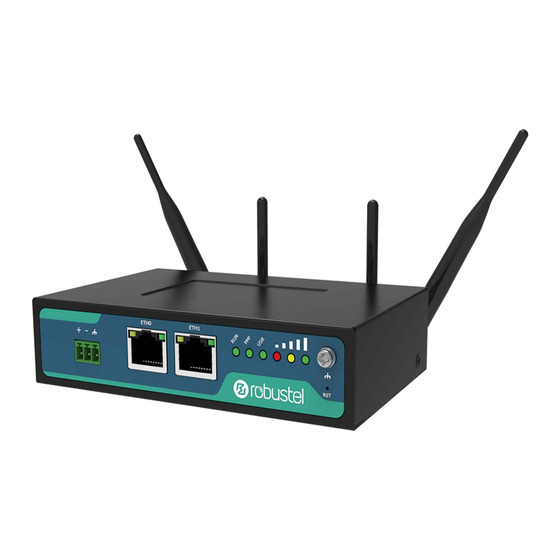

R2000--Industrial Cellular VPN Router
This document is written for the user which in order to let the user more easily install the router and also know the
way to configure the router. This guide provides step-by-step instruction on how to setup the connection between
R2000 router and PC and how to enter the router configuration mode.
Package Checklist
Before installing theR2000 router, verify that the package contains the following items:
Robustel R2000 Router
Terminal Block for Power
Document and Software CD
Optional Accessories
AC/DC Power Supply Adapter
35mm Din-Rail mounting kit or Wall mounting kit
SMA cellular antenna (HSPA+/LTE)
RP-SMA Wi-Fi antenna (stubby or magnet)
Notify your sales representative if any of the above items is missing or damaged.
Preparation before testing
1xR2000 Router, 1xPC, 1xSIM card, 1xEhternet cable, 2xSMA antenna, 1xpower supplies with terminal block,
(1x35mm Din-Rail mounting kit or Wall mounting kit, 4xM3 screw, 2xM3 screw with point-end)
RT_QG_R2000 Installation and Configuration_v.2.0.2
18.11.2016
1/17
