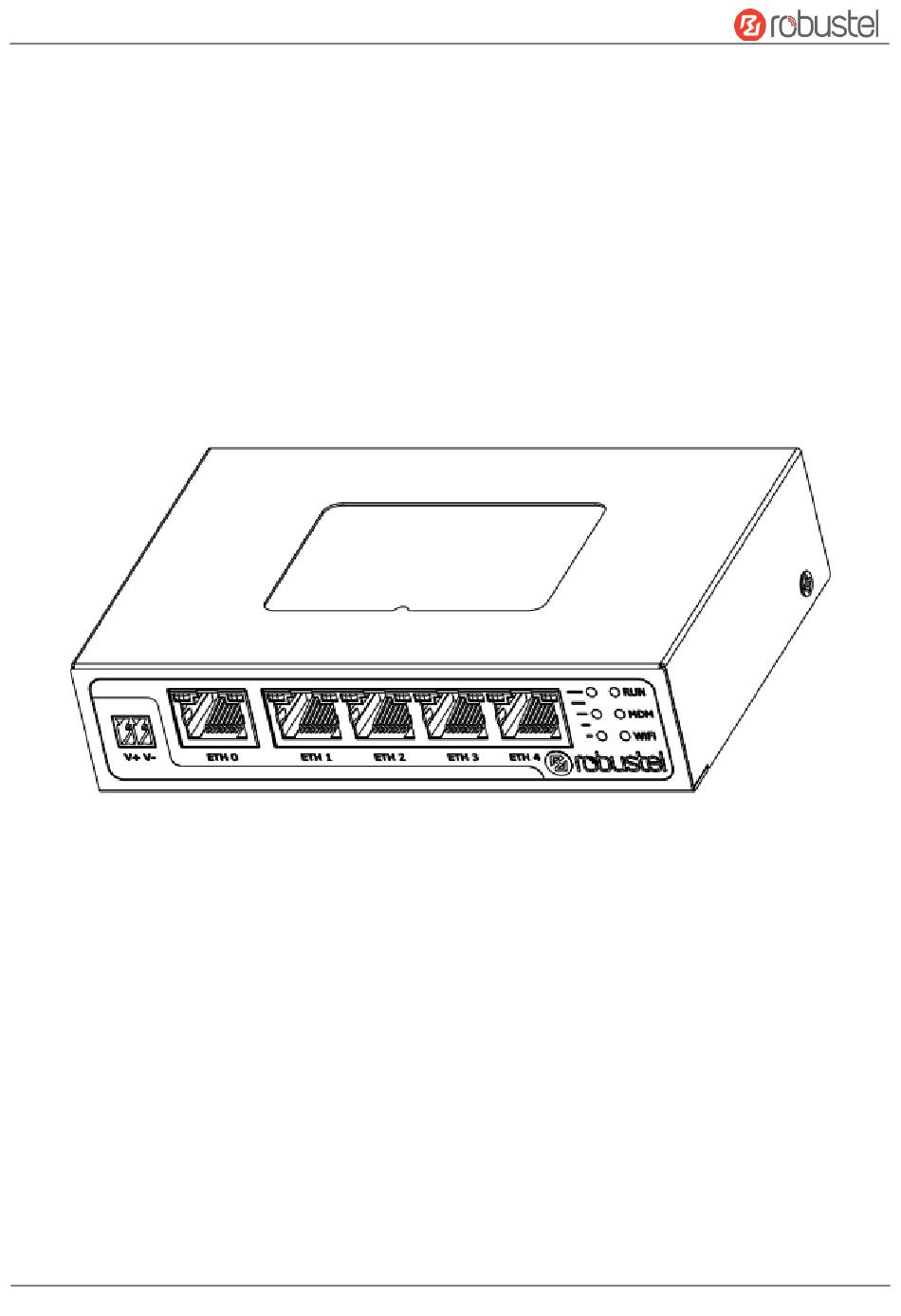

- Page 1 Robustel R2011 Hardware Manual R2011 Hardware Manual Version: 1.0.1 Date: Nov. 28, 2022 RT070_HM_R2011 1/12...
- Page 2 Robustel R2011 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel R2011 Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel R2011 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 6, 2022 5.0.0...

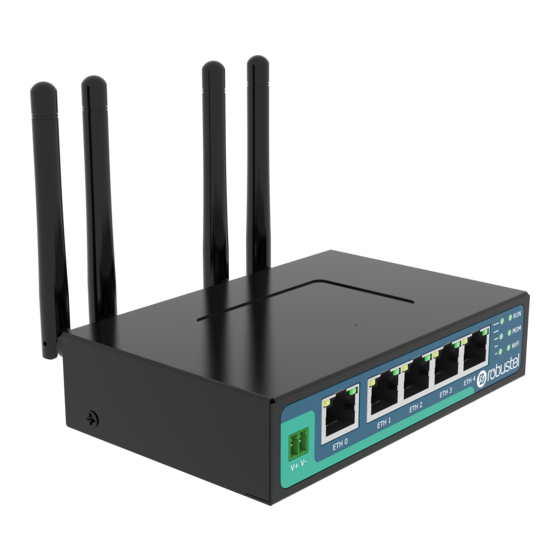

- Page 6 Robustel R2011 Hardware Manual Overview Robustel R2011 Industrial Cellular Router is a rugged, versatile 4G router with 5 Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications. Package Checklist...
-
Page 7: Interface Descriptions
Robustel R2011 Hardware Manual Interface Descriptions Power Supply. 2-pin 3.5 mm male terminal block Description Note Positive Negative Note: Voltage input range:9-36V LED Indicator Name Color Status Description Green On, solid Router is powered on (System is initializing) On, blinking... -
Page 8: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are five Ethernet ports on R2011 Gateway, including ETH0 (WAN/LAN) and ETH1, ETH2, ETH3, ETH4. Each has two LED indicators. The green one is a link indicator but the yellow one doesn’t mean anything. -
Page 9: Hardware Installation
Robustel R2011 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular antenna as example. - Page 10 Robustel R2011 Hardware Manual Mounting Kit installation. ① Wall mounting ② DIN rail mounting Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector. RT070_HM_R2011 10/12...
- Page 11 Robustel R2011 Hardware Manual Connect the Router to a Computer. Use a standard network cable to connect the Ethernet port of the router to a PC, when it is configured as 5 LAN, it can be connected to (ETH0~ETH4); when it is configured as 1 WAN+4 LAN, it can be connected to (ETH1~ETH4) ).
- Page 12 Robustel R2011 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
