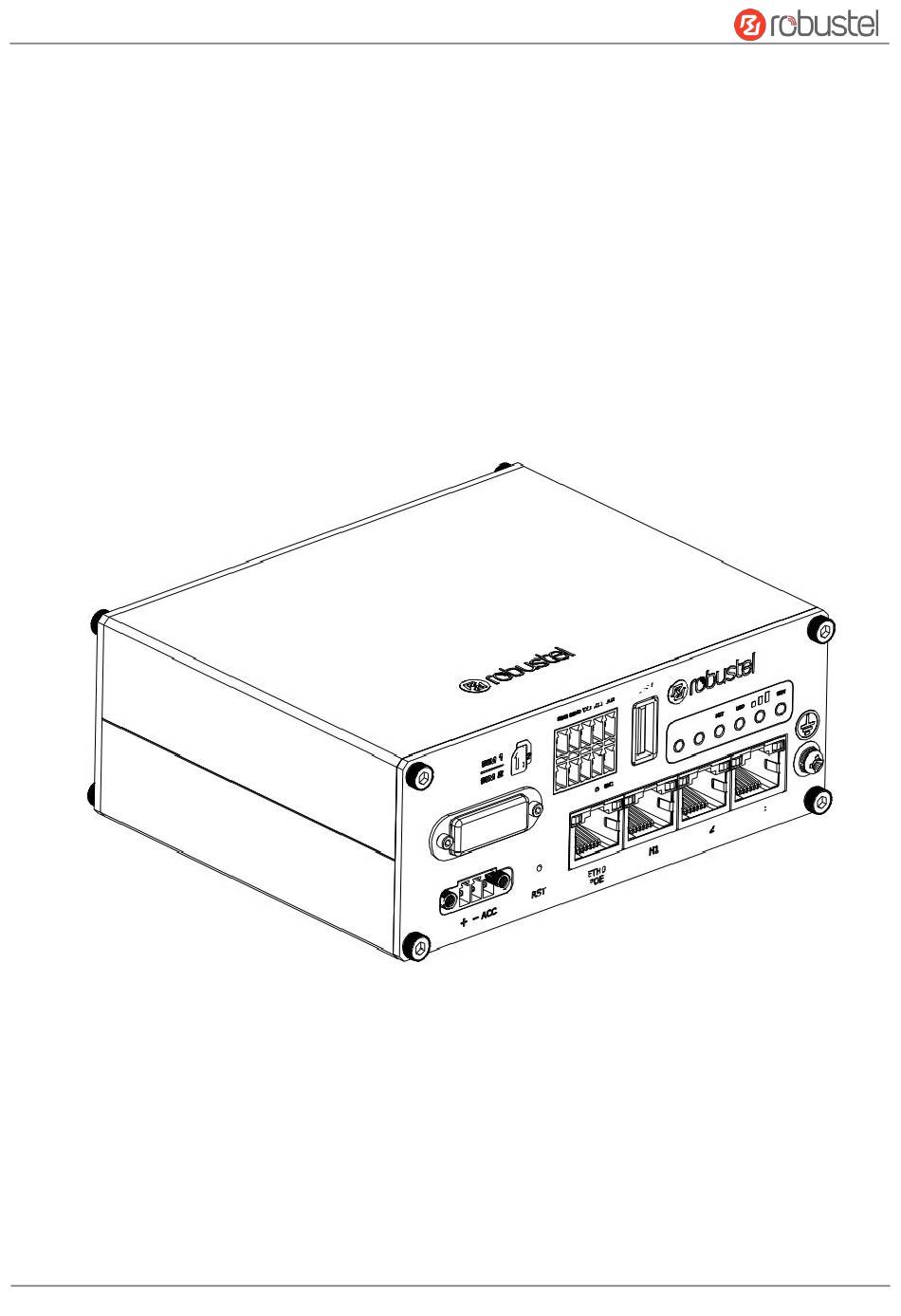

- Page 1 Robustel R2110 Hardware Manual R2110 Hardware Manual Version: 1.0.0 Date: Aug. 03, 2022 RT044_HM_R2110 1/11...
- Page 2 People's Republic of China, and can also be used for reference in the logistics process of electronic and electrical products. The orange logo below is used for Robustel products: Indicates its warning attribute, that is, some hazardous substances are contained in the product.
- Page 3 Robustel R2110 Hardware Manual Table 3: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit modules Cables and cable assemblie...
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel R2110 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description Aug. 03, 2022 5.0.0...

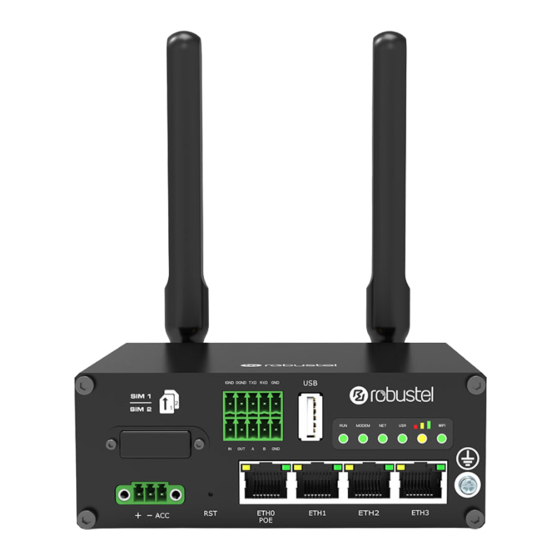

- Page 6 Robustel R2110 Hardware Manual Overview The Robustel Industrial Cellular Bluetooth Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications. Package Checklist Before commencing installation ensure your package has the following components: 3PIN Terminal...
-
Page 7: Interface Descriptions
Robustel R2110 Hardware Manual Interface Descriptions Power Supply. 3PIN 3.5mm pitch terminal block. Description Note Connect adapter or battery positive (red line) Connect adapter or battery negative (yellow line) Car ignition and flameout detection (green line) Note: when the car ignition and flameout detection function... -
Page 8: Usb Interface
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are four Ethernet ports on R2110-4L, including ETH0 (POE), ETH1, ETH2, ETH3. Each has two LED indicators. The yellow one is a link indicator but the green one doesn’t mean anything. For details about status, see the table below. -
Page 9: Hardware Installation
Robustel R2110 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular antenna as example. - Page 10 Connect the Router to a Computer. Connect an Ethernet cable to the port marked ETH1~ETH3 at the front of the R2110 Router, and connect the other end of the cable to your computer. RT044_HM_R2110...
- Page 11 Robustel R2110 Hardware Manual Login to the Device After logging in, the home page of the web Connect the router’s Ethernet port to a PC with a standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the device.
