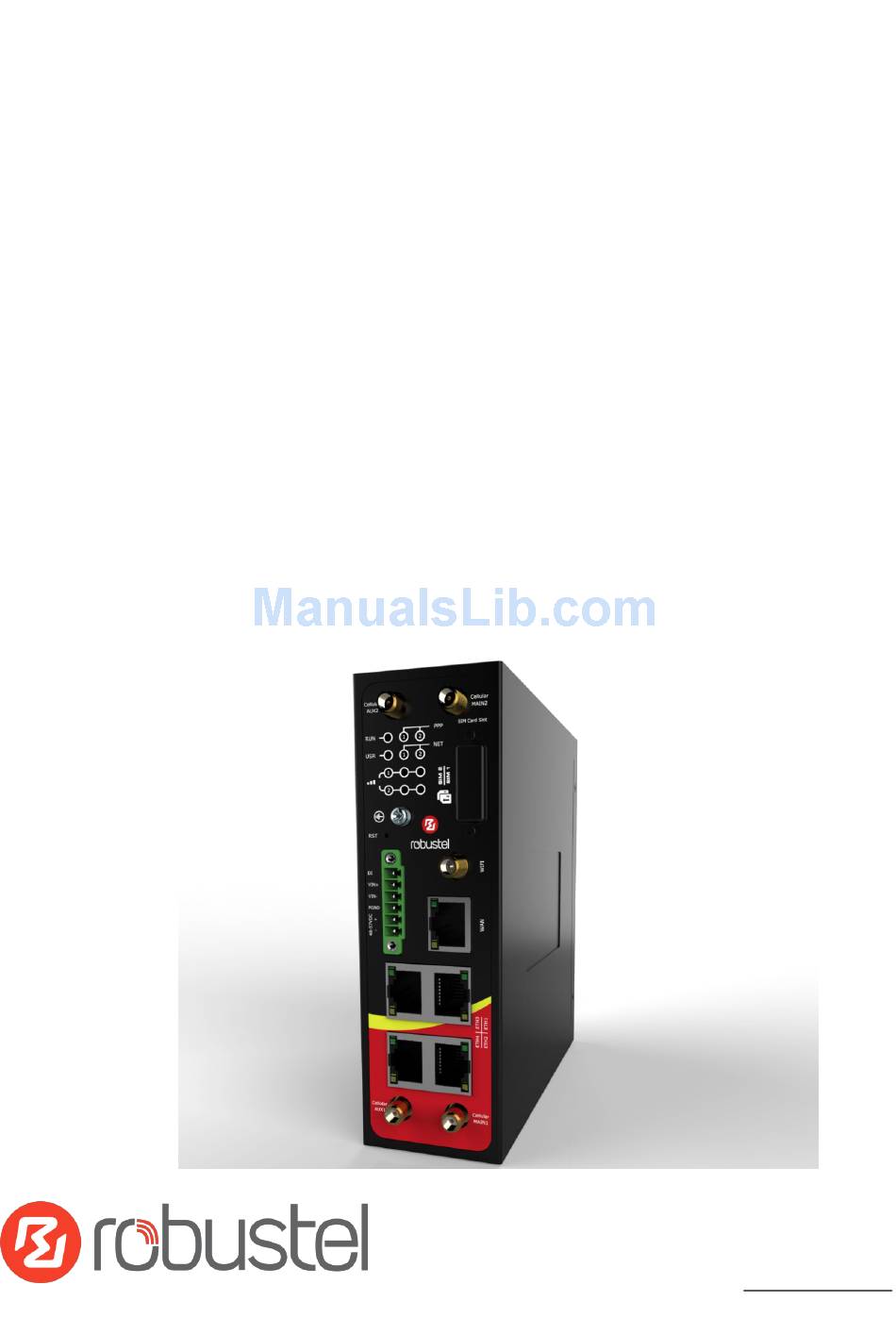

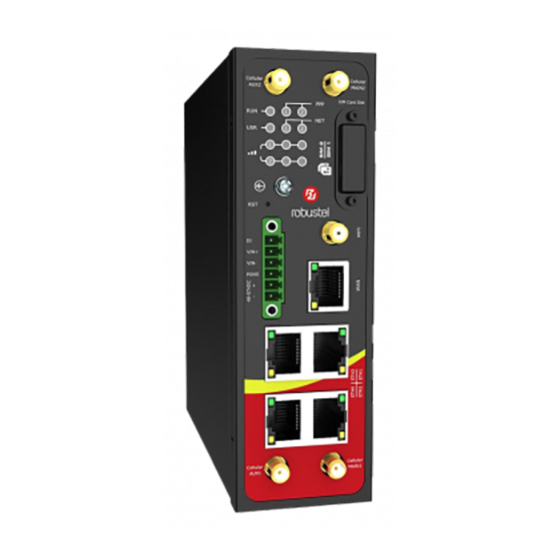

Robustel GoRugged R2000 Dual
Industrial Dual Module Cellular VPN Router with

Power over Ethernet

For GSM/GPRS/EDGE/UMTS/WCDMA/HSPA+/LTE Networks

User Guide

Name:
Firmware:
Date:
Status:
Doc ID:
User Guide
2.0.0
2017-04-25
Confidential
RT_UG_R2000 Dual_v.1.0.5
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R2000 Dual and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel GoRugged R2000 Dual

Summary of Contents for Robustel GoRugged R2000 Dual

  • Page 1: Power Over Ethernet

    Robustel GoRugged R2000 Dual Industrial Dual Module Cellular VPN Router with Power over Ethernet For GSM/GPRS/EDGE/UMTS/WCDMA/HSPA+/LTE Networks User Guide Name: User Guide Firmware: 2.0.0 Date: 2017-04-25 Status: Confidential Doc ID: RT_UG_R2000 Dual_v.1.0.5 www.robustel.com...
  • Page 2 The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R2000 Dual User Guide Protecting your router To ensure error-free usage, please install and operate your router with care. Do remember the following: Do not expose the router to extreme conditions such as high humidity/rain, high temperature, direct sunlight, ...
  • Page 5 Robustel GoRugged R2000 Dual User Guide Regulatory and Type Approval Information Table 1: Directives 2011/65/EC Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R2000 Dual User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description 2016-06-06 2.0.0 v.1.0.0 Initial Release 2016-07-22 2.0.0 v.1.0.1...

  • Page 7: Table Of Contents

    Robustel GoRugged R2000 Dual User Guide Contents Chapter 1 Product Concept ............................8 Key Features ............................... 8 Package Contents ............................9 Specifications ............................11 Dimensions ............................... 12 Ordering Information ..........................13 Chapter 2 Hardware Installation ..........................14 Overview ..............................14 LEDs ................................
  • Page 8 Robustel GoRugged R2000 Dual User Guide 3.24 Services > Advanced ..........................82 3.25 System > Debug ............................83 3.26 System > Update ............................84 3.27 System > APP Center ..........................84 3.28 System > Tools ............................85 3.29 System > Profile ............................89 3.30...

  • Page 9: Chapter 1 Product Concept

    Chapter 1 Product Concept 1.1 Key Features Robustel’s R2000 Dual Industrial Dual Module Cellular VPN Router with Power over Ethernet provides fast and reliable communication for monitoring and controlling remote equipment. The added new feature, Power over Ethernet, makes installing or expanding much simpler and cheaper for both power and data transmission.

  • Page 10: Package Contents

    Quick Start Guide with download link of other documents or tools x 1  *If any of the above items is missing or damaged, please contact your Robustel sales representative* Optional Accessories (sold separately): SMA cellular antenna for 3G/4G LTE ...
  • Page 11 Robustel GoRugged R2000 Dual User Guide RP-SMA Wi-Fi antenna (Stubby antenna or magnet antenna optional)  Stubby antenna Magnet antenna Ethernet cable  Wall mounting kit  35 mm DIN rail mounting kit  AC/DC power adapter (12V DC, 1.5 A; EU, US, UK, AU plug optional) ...

  • Page 12: Specifications

    Robustel GoRugged R2000 Dual User Guide 1.3 Specifications Cellular Interface Standards: GSM/GPRS/EDGE/UMTS/WCDMA/HSPA/  HSDPA/HSUPA/HSPA+/DC-HSPA+/LTE  FDD LTE: max. 150/50 Mbps (DL/UL) @20M BW cat4  TDD LTE: max. 100/50 Mbps (DL/UL)  DC-HSPA+: 42/5.76 Mbps (DL/UL)  HSPA+: max. 21.6/5.76 Mbps (DL/UL) ...

  • Page 13: Dimensions

    Robustel GoRugged R2000 Dual User Guide Software Network protocols: PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, SSH, Telnet,  SNMP, AAA etc. VPN tunnel: IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN  Firewall: SPI, anti-DoS, Filter, Access Control ...

  • Page 14: Ordering Information

    Robustel GoRugged R2000 Dual User Guide 1.5 Ordering Information Model R2000-D3P1 R2000-D3P2 R2000-D4L1 R2000-D4L2 Router Type HSPA+ router HSPA+ router LTE router LTE router Module Number Air Interface GSM/GPRS/EDGE/HSD GSM/GPRS/EDGE/HSD GSM/GPRS/EDGE/WC GSM/GPRS/EDGE/WC PA/HSUPA/HSPA+ PA/HSUPA/HAPA+ DMA/HSDPA/HSUPA/ DMA/HSDPA/HSUPA/ HSPA+/DC-HSPA+/TD- HSPA+/DC-HSPA+/TD- SCDMA/CDMA (CDMA...

  • Page 15: Chapter 2 Hardware Installation

    Robustel GoRugged R2000 Dual User Guide Chapter 2 Hardware Installation 2.1 Overview RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 14/116 Confidential...

  • Page 16: Leds

    Robustel GoRugged R2000 Dual User Guide 2.2 LEDs Name Color State Description Green On, 1/2 sec blink Router is ready. On, 1 sec blink Router is booting. Router is powered off. Green LED 1 is on SIM1 PPP connection is working.

  • Page 17: Reset Button

    Robustel GoRugged R2000 Dual User Guide 2.3 Reset Button Function Operation Reboot Press and hold the Reset button for at least 2~7 seconds under the operating status. Wait for 5 seconds after powering up the router, press and hold the Reset button by a...

  • Page 18: Attach External Antenna (Sma Type)

    Robustel GoRugged R2000 Dual User Guide Remove SIM Card  Make sure the router is powered off. To remove SIM card, press the card with fingers until pop out and then take out the SIM card. Put back the slot cover and tighten the screws associated with the cover by using a screwdriver.

  • Page 19: Ground The Router

    Robustel GoRugged R2000 Dual User Guide Two methods for mounting the router  Wall mounting: Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting kits to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.

  • Page 20: Connect The Router To The Pc

    Robustel GoRugged R2000 Dual User Guide 2.10 Connect the Router to the PC Connect the router’s Ethernet port (Eth1/Eth2/Eth3/Eth4) to a PC via a standard cross-over cable. 2.11 Power Supply R2000 Dual Router supports reverse polarity protection, but always refers to the figure below to connect the power adapter correctly.
  • Page 21 Robustel GoRugged R2000 Dual User Guide R2000 Dual Router also supports POE feature. Please refer to the figure below to connect the power adapter correctly. Note: The range of power voltage is 48 to 57V DC. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017...

  • Page 22: Chapter 3 Initial Configuration

    Robustel GoRugged R2000 Dual User Guide Chapter 3 Initial Configuration The router can be configured through your web browser that including IE 8.0 or above, Chrome and Firefox, etc. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 23 Robustel GoRugged R2000 Dual User Guide 2. Click Properties in the window of Local Area Connection Status. 3. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 22/116 Confidential...
  • Page 24 Robustel GoRugged R2000 Dual User Guide 4. Two ways for configuring the IP address of PC: Obtain an IP address automatically: Use the following IP address (configured a static IP address manually within the same subnet of R2000 Dual Router): 5.

  • Page 25: Factory Default Settings

    Robustel GoRugged R2000 Dual User Guide 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings. Item Description Username admin Password admin Eth0 DHCP Eth1 192.168.0.1/255.255.255.0, lan0, DHCP Server Enabled. Eth2 192.168.0.1/255.255.255.0, lan0, DHCP Server Enabled.

  • Page 26: Control Panel

    Robustel GoRugged R2000 Dual User Guide 3.4 Control Panel After logging in the R2000 Dual, the home page of the R2000 Lite router’s web interface is displayed, for example. Using the original password to log in the router, the page will pop up the following tab click to close the pop-up tab.
  • Page 27 Robustel GoRugged R2000 Dual User Guide Control Panel Item Description Button Save & Apply Click to save the current configuration into router’s flash and apply the modification on every configuration page, to make the modification taking effect. Reboot Click to reboot the router. If the Reboot button is yellow, it means that some completed configurations will take effect only after reboot.

  • Page 28: Status

    Robustel GoRugged R2000 Dual User Guide 3.5 Status This section displays the router’s status, which shows you a number of helpful information such as System Information, Internet Status and LAN Status. System Information System Information Item Description Device Model Show the model name of this device.

  • Page 29: Interface > Link Manager

    Robustel GoRugged R2000 Dual User Guide Internet Status Item Description Active Link Show the current WAN link: WWAN1, WWAN2 or WAN. Uptime Show how long the current WAN have been working. IP Address Show the current WAN IP address. Gateway Show the current gateway.
  • Page 30 Robustel GoRugged R2000 Dual User Guide Link Manager Item Description Default Select from “WWAN1”, “WWAN2”, “WAN”, “WLAN”. WWAN1: Select to make SIM1 as the primary wireless link. Note: insert SIM card please refer to the installation quick guide. WWAN2: Select to make SIM2 as the primary wireless link.
  • Page 31 Robustel GoRugged R2000 Dual User Guide WWAN1/WWAN2 When enable “Automatic APN Selection”, the window will display just like the following screenshot. When disable “Automatic APN Selection”, the window will display just like the following screenshot. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017...
  • Page 32 Robustel GoRugged R2000 Dual User Guide WWAN Setting Item Description Default Automatic APN Selection ON: R2000 Dual will recognize the access point name automatically. Dialup Number Dialup number for cellular dial-up connection, provided by local ISP. *99***1# Authentication Type Select from “Auto”, “PAP” and “CHAP” as the local ISP required.
  • Page 33 Robustel GoRugged R2000 Dual User Guide Ping Detection Settings/Advanced Setting Item Description Default To enable “ping detection”. It was a keepalive policy of R2000 Dual Enable Router. Router will ping this primary address/domain name to check that if the Primary Server 8.8.8.8...
  • Page 34 Robustel GoRugged R2000 Dual User Guide Static Item Description Default Set the IP address with Netmask which can access the internet. IP Address Null IP address with Netmask, e.g. 192.168.1.1/24 Gateway Set the gateway of the WAN IP. Null Primary DNS Set the Primary DNS.
  • Page 35 Robustel GoRugged R2000 Dual User Guide Ping Detection Setting/Advance Setting Item Description Default Enable To enable “ping detection”. It was a keepalive policy of R2000 Dual Router. OFF Router will ping this primary address/domain name to check that if the Primary Server 8.8.8.8...
  • Page 36 Robustel GoRugged R2000 Dual User Guide When choose the WLAN Connection Type as DHCP, R2000 Dual will obtain IP automatically from the WLAN AP. Complete the SSID parameters configuration in the window below. WLAN Setting Item Description Default Enter SSID of the access point which R2000 Dual want to connect.
  • Page 37 Robustel GoRugged R2000 Dual User Guide Ping Detection Setting/Advance Setting Item Description Default Enable To enable “ping detection”. It was a keepalive policy of R2000 Dual Router. OFF Router will ping this primary address/domain name to check that if the Primary Server 8.8.8.8...
  • Page 38 Robustel GoRugged R2000 Dual User Guide Status Click the button which is in the top right of the Link Status window. Select the connection status of the current link. Click the row of the link, and it will show the details information of the current link connection under the row.

  • Page 39: Interface > Lan

    Robustel GoRugged R2000 Dual User Guide Click button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will display only if enable the Data Allowance function in Link Manager > Link Setting > WWAN Setting. 3.7 Interface > LAN This section allows user to set the LAN and the related parameters.
  • Page 40 Robustel GoRugged R2000 Dual User Guide Enable DHCP function, when configure DHCP Mode as Server, the window will display as the following screenshot. DHCP Server Item Description Default Enable Click the switch to show “ON” and to enable DHCP function.
  • Page 41 Robustel GoRugged R2000 Dual User Guide DHCP Server Item Description Default You can enter some other options of DHCP server in this field. Expert Options Null format: config-desc;config-desc, e.g. log-dhcp;quiet-dhcp Debug Enable Enable this function; it will output the DHCP information to syslog.
  • Page 42 Robustel GoRugged R2000 Dual User Guide Multiple IP Item Description Default ETH1~ETH4 in 3.8 Interface > Ethernet section. All of ETH1~ETH4 were default to lan0, and the default IP is 192.168.0.1/255.255.255.0. IP Address Set the multiple IP Address of the LAN interface.

  • Page 43: Interface > Ethernet

    Robustel GoRugged R2000 Dual User Guide Status This section shows the Ethernet port status and connected devices. Click every row, the details status information will be display under the row. Please refer to the screenshot below. 3.8 Interface > Ethernet R2000 Dual has four LAN Ethernet ports and one WAN Ethernet port.
  • Page 44 Robustel GoRugged R2000 Dual User Guide Click button, configure the port setting. Ethernet Item Description Default Index The index of Ethernet port, cannot edit. Select from ETH1 to ETH4. Port Note: Only ETH0 can be assigned as wan. One of ETH1~ETH4 port should be assigned to lan0 a least.

  • Page 45: Interface > Cellular

    Robustel GoRugged R2000 Dual User Guide Click the row of the Ethernet port, the details of the port will show below. 3.9 Interface > Cellular R2000 Dual has two wireless module, support two modules work in same time. When it is the first time to insert single SIM card, SIM card 1 and SIM card 2 slots are available.
  • Page 46 Robustel GoRugged R2000 Dual User Guide When choose “Network Type” is “Auto”; When choose “band select type” is “Specify”. Cellular Item Description Default Index Show the index of the SIM. SIM Card Set the current SIM card. SIM1 Link Name Set the current Link Name.
  • Page 47 Robustel GoRugged R2000 Dual User Guide Cellular Item Description Default Select from “All”, “Specify”. When select “Specify”, user can choose Band Select Type certain bands. This section allow user to check the cellular status information. Click the row of SIM card, the details information will show below, please refer to the following screenshot.

  • Page 48: Interface > Wifi

    Robustel GoRugged R2000 Dual User Guide Status Item Description Registration Show the current network status. Network Provider Show the name of Network Provider. Network Type Show the current network service type, e.g. GPRS. Signal Strength Show the current signal strength.
  • Page 49 Robustel GoRugged R2000 Dual User Guide Access Point Item Description Default Enable Click to “ON” side, enable the WiFi access point function. Select from “11bgn Mixed”, “11b only”, “11g only” and “11n only”. 11bgn Mixed: Three protocols mixed in order to backward compatibility...
  • Page 50 Robustel GoRugged R2000 Dual User Guide Access Point Item Description Default 13 - 2472 MHz SSID (service set identifier) is the network name of the WiFi. The SSID of a client and the SSID of the AP must be identical for the client and AP to be...
  • Page 51 Robustel GoRugged R2000 Dual User Guide Advanced Item Description Default Max Associated Stations Set the max number of association station to access the router AP. Set the frequency of the router AP broadcast Beacon, which was used for Beacon Interval wireless network synchronization.
  • Page 52 Robustel GoRugged R2000 Dual User Guide Advanced Item Description Default Click “ON” to enable Short GI (Short Guard Interval), short GI is a blank time between two symbols, it can provide a long buffer time to delay Enable Short GI signal.

  • Page 53: Wifi Client

    Robustel GoRugged R2000 Dual User Guide WiFi Client Configure R2000 Dual as a WiFi client R2000 Dual Router support both WiFi AP and WiFi client. The factory default setting of R2000 Dual is as WiFi AP. This section allow user to configure the R2000 Dual Router as a WiFi client and set the related parameters.
  • Page 54 Robustel GoRugged R2000 Dual User Guide RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 53/116 Confidential...

  • Page 55: Network > Route

    Robustel GoRugged R2000 Dual User Guide User can scan the surrounding SSIDs in this section. Please click , and then click “Scan” to scan the surrounding SSIDs. 3.11 Network > Route This section allows user to set the static route. (The maximum number of the static route is twenty.) Click to add static routes, the maximum number of static routes is 20.

  • Page 56: Network > Firewall

    Robustel GoRugged R2000 Dual User Guide Static Route Item Description Default Netmask Define the Netmask of the destination. Null Gateway Define the gateway of the destination. Null Interface Select from “LAN”, “WAN”, “TUN” This section allow user to check all the route of R2000 Dual.
  • Page 57 Robustel GoRugged R2000 Dual User Guide Click to add filtering rules. (The maximum number of the filtering rule is twenty. Filtering Item Description Default Enable Filtering Enable filtering rules. Select from “Accept” and “Drop”. Accept: Router will accept all the connecting requests except the hosts Default Filtering Policy which fit the filter list.

  • Page 58: Port Mapping

    Robustel GoRugged R2000 Dual User Guide Filtering Item Description Default Defines if access is allowed to one or a range of IP addresses which are Target Address Null defined by Target IP Address, or every IP addresses. Select from “All”, “TCP”, “UDP”, “ICMP”, “TCP-UDP”.

  • Page 59: Network > Ip Passthrough

    Robustel GoRugged R2000 Dual User Guide Item Description Default Select to enable the DMZ function. Enable DMZ DMZ host is a host on the internal network that has all ports exposed, except those ports otherwise forwarded. Host IP Address Enter the IP address of the DMZ host which on the internal network.

  • Page 60: Vpn > Ipsec

    Robustel GoRugged R2000 Dual User Guide 3.14 VPN > IPsec This section allows users to set the IPsec and the related parameters. General General Item Description Default Tick to enable NAT Traversal for IPsec. This item must be enabled when Enable NAT Traversal router under NAT environment.
  • Page 61 Robustel GoRugged R2000 Dual User Guide Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable IPsec Tunnel. Description Enter some simple words about the IPsec Tunnel. Null Gateway Enter the address of remote side IPsec VPN server.
  • Page 62 Robustel GoRugged R2000 Dual User Guide When choose “Authentication Type” to “CA”. When choose “Authentication Type” to “xAuth PSK”. When choose “Authentication Type” to “xAuth CA”. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 61/116 Confidential...
  • Page 63 Robustel GoRugged R2000 Dual User Guide IKE Settings Item Description Default Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1. If the IP address of one end of an IPsec tunnel is obtained dynamically, Negotiation Mode Main the IKE negotiation mode must be aggressive.
  • Page 64 Robustel GoRugged R2000 Dual User Guide IKE Settings Item Description Default Set the lifetime in IKE negotiation. Before an SA expires, IKE negotiates a new SA. As soon as the new SA is set IKE Lifetime 86400 up, it takes effect immediately and the old one will be cleared automatically when it expires.
  • Page 65 Robustel GoRugged R2000 Dual User Guide SA Settings Item Description Default Select from “PFS (N/A)”, “MODP (1024)” and“MODP (1536)”. PFS (N/A): Disable PFS Group MODP PFS Group MODP (1024): Uses the 1024-bit Diffie-Hellman group. (1024) MODP (1536): Uses the 1536-bit Diffie-Hellman group.

  • Page 66: Vpn > Openvpn

    Robustel GoRugged R2000 Dual User Guide x509 Item Description Default Tunnel Name Select the name of the tunnel. Tunnel 1 Choose the correct file to import the certificate into the router. The correct file format as followings: @ca.crt Certificate Files @remote.crt...
  • Page 67 Robustel GoRugged R2000 Dual User Guide When choose “Authentication Type” to “None”. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 66/116 Confidential...
  • Page 68 Robustel GoRugged R2000 Dual User Guide When choose “Authentication Type” to “Password”. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 67/116 Confidential...
  • Page 69 Robustel GoRugged R2000 Dual User Guide When choose “Authentication Type” to “X509CA”. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 68/116 Confidential...
  • Page 70 Robustel GoRugged R2000 Dual User Guide When choose “Authentication Type” to “X509CA Password”. Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable OpenVPN tunnel. Description Enter some simple words about the OpenVPN Tunnel. Null Mode Select from “P2P”, “Client”.
  • Page 71 Robustel GoRugged R2000 Dual User Guide Tunnel Settings Item Description Default When the “Mode” is “P2P”. Remote IP Null Define the remote IP address of OpenVPN tunnel. User name used for Authentication Type “Password” or “X509CA Username Null Password”. Password used for Authentication Type “Password” or “X509CA...
  • Page 72 Robustel GoRugged R2000 Dual User Guide Enable the PKCS#12 certificate. It is an exchange of digital certificate Enable PKCS#12 encryption standard, used to describe personal identity information. Require that peer certificate was signed with an explicit nsCertType Enable nsCertType designation of "server".

  • Page 73: Vpn > Gre

    Robustel GoRugged R2000 Dual User Guide 3.16 VPN > GRE This section allows users to set the OpenVPN and the related parameters. Click to add tunnel settings. (The maximum number of the tunnel is three.) Item Description Default Index Show the index of the tunnel.

  • Page 74: Services > Syslog

    Robustel GoRugged R2000 Dual User Guide This section allow user to check the status of GRE tunnel. 3.17 Services > Syslog This section allows users to set the syslog parameters. Syslog Syslog Settings Item Description Default Enable Click to enable Syslog setting.

  • Page 75: Services > Event

    Robustel GoRugged R2000 Dual User Guide 3.18 Services > Event This section allows users to set the Event parameters. Event @ Event Item Description Default Signal Quality Router will generate log event when signal quality less than the threshold, 0 Threshold means disable.
  • Page 76 Robustel GoRugged R2000 Dual User Guide Notification@ Event Item Description Default Index The index of event notification group. Description Enter some simple words to describe the Notify Group. Null Click to enable router to send event notification SMS. Set the phone number Sent SMS that is used for receiving event notification, and use ‘;’to separate each...

  • Page 77: Services > Ntp

    Robustel GoRugged R2000 Dual User Guide Query @ Event Item Description Default Select the events’ save position from “RAM”, “NVM”. Save Position RAM: Random-access memory. NVM: Non-Volatile Memory. Event will be filtered according to the Filter Message that the user set. Click the Filter Message Refresh button, the filtered event will be displayed in the follow box.

  • Page 78: Services > Sms

    Robustel GoRugged R2000 Dual User Guide p.org Secondary NTP Server Enter secondary NTP Server’s IP address or domain name. Null Enter the interval (minutes) which NTP client synchronize the time from NTP NTP Update interval server. Minutes wait for next update, 0 means update only once.
  • Page 79 Robustel GoRugged R2000 Dual User Guide Item Description Default Both: use both the “Password” and “Phonenum” for authentication. User should set the Phone Number that is allowed for SMS management. The format of the SMS should be “username: password; cmd1; cmd2; …”...

  • Page 80: Services > Email

    Robustel GoRugged R2000 Dual User Guide 3.21 Services > Email R2000 Dual’s Email function support send the event notifications in an Email to specified recipients. Email Item Description Default Enable Click to enable Email function. Disable Outgoing server Enter the SMTP server IP Address or domain name.

  • Page 81: Services > Ssh

    Robustel GoRugged R2000 Dual User Guide 3.22 Services > SSH This section allow user to configure SSH parameter. Item Description Default Enable Enable the function that user can access R2000 Dual Router via SSH. Port Set the port of the SSH access.

  • Page 82: Services > Web Server

    Robustel GoRugged R2000 Dual User Guide 3.23 Services > Web Server This section allows users to modify the parameters of Web Server. Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R2000 Dual’s Web Server.

  • Page 83: Services > Advanced

    Robustel GoRugged R2000 Dual User Guide Certificate Management Item Description Default Select from “CA” and “Private Key”. Import Type CA: a digital certificate issued by CA center. Private Key: a private key file. Click “Browse” to select the certificate file in your computer, and then click HTTPS Certificate “Import”...

  • Page 84: System > Debug

    Robustel GoRugged R2000 Dual User Guide 3.25 System > Debug This section allow user to check and download the syslog details. Syslog Details @ Syslog Item Description Default Select form “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to Log Level Debug high.

  • Page 85: System > Update

    Robustel GoRugged R2000 Dual User Guide Select from “Manual Refresh”, “5 Seconds”, “10 Seconds”, “20 Seconds”and“30 Seconds”. User can select these intervals to refresh the log Manual Refresh information displayed in the follow box. Select “manual refresh”, user should Refresh click the refresh button to refresh the syslog.

  • Page 86: System > Tools

    Robustel GoRugged R2000 Dual User Guide App Center Item Description Default Choose the correct App file from your PC, and click button to import File to R2000 Dual Router. File format: xxx.rpk, e.g. r2000-robustlink-1.0.0.rpk. Install Apps Those Apps which had installed in R2000 Dual will be listed in Installed Apps.
  • Page 87 Robustel GoRugged R2000 Dual User Guide Ping @ Tools Item Description Default IP address Enter the ping destination IP address or domain name. Null Number of requests Specify the number of ping requests. Timeout Specify timeout of ping request. Specify the local IP from cellular WAN, Ethernet WAN or Ethernet LAN. Null...
  • Page 88 Robustel GoRugged R2000 Dual User Guide Traceroute @ Tools Item Description Default Trace Address Enter the trace destination IP address or domain name. Null Specify the max trace hops. Router will stop tracing if the trace hops has met Trace Hops max value no matter the destination has been reached or not.
  • Page 89 Robustel GoRugged R2000 Dual User Guide Sniffer @ Tools Item Description Default Select form “all”, “wwan1”, “wwan2”, “lan0”, “lan1”, “lan2”, “lan3” and “wlan0”. wwan0/wwan1: available wwan0 or wwan1 had been set as Primary Link or Interface Backup Link. lan0~1an3: available lan0~lan3 had been set to Ethernet port.

  • Page 90: System > Profile

    Robustel GoRugged R2000 Dual User Guide 3.29 System > Profile This section allows users to import or export the configuration file, and restore the router to factory default setting. Import Configuration File @ Profile Item Description Default Define what to do about the configs that is not contained in the imported file.

  • Page 91: System > User Management

    Robustel GoRugged R2000 Dual User Guide 3.30 System > User Management This section allows users to modify or add management user accounts. Super User Item Description Default One router has only one super user account. Under this account, user has the Super User highest authority include modify, add and manage those user accounts.
  • Page 92 Robustel GoRugged R2000 Dual User Guide Common User Item Description Default Select from “Visitor” and “Editor”. Role Visitor: Users only can view the configuration of router under this level; Visitor Editor: Users can view and set the configuration of router under this level.

  • Page 93: Chapter 4 Configuration Examples

    Robustel GoRugged R2000 Dual User Guide Chapter 4 Configuration Examples 4.1 Cellular 4.1.1 Cellular Backup This section shows users how to configure the primary and backup SIM card of Cellular Dial-up. Go to Interface > Link Manager > General Setting Select WWAN1 as Primary Link and WWAN2 as Backup Link, set the Backup Mode to Warm Backup.
  • Page 94 Robustel GoRugged R2000 Dual User Guide The modifications will take effect after click “Submit” and “save and apply” button. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 93/116 Confidential...

  • Page 95: Sms Remote Control

    Robustel GoRugged R2000 Dual User Guide Go to Interface > Cellular Click to set the SIM card’s parameter according to the application requirement. The modifications will take effect after click “Submit” and “save and apply” button. 4.1.2 SMS Remote Control R2000 Dual supports remote control via SMS.
  • Page 96 Robustel GoRugged R2000 Dual User Guide to generate the XML Go to System > Profile > Export Configuration File, select Export type as Full, click file and then click to export the XML file. XML command: <lan> <network max_entry_num="2"> <id>1</id>...
  • Page 97 Robustel GoRugged R2000 Dual User Guide serial_number = 15090140040008 uptime = "0 days, 00:04:07" system_time = "Tue Dec 22 15:02:36 2015" admin:admin;reboot In this command, username is admin, password is admin, and the command is reboot R2000 Dual. SMS received: admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false...

  • Page 98: Network

    Robustel GoRugged R2000 Dual User Guide 4.2 Network 4.2.1 IPsec VPN Note: the configuration of server and client is as follows. RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 97/116 Confidential...
  • Page 99 Robustel GoRugged R2000 Dual User Guide IPsecVPN_SERVER: Cisco 2811: RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 98/116 Confidential...
  • Page 100 Robustel GoRugged R2000 Dual User Guide IPsecVPN_CLIENT: VPN > IPsec > Tunnel Then click RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 99/116 Confidential...
  • Page 101 Robustel GoRugged R2000 Dual User Guide The modification will take effect after “Submit > Save & Apply > Reboot”. The comparison between server and client is as following picture: RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 100/116 Confidential...

  • Page 102: Openvpn

    Robustel GoRugged R2000 Dual User Guide 4.2.2 OPENVPN Note: the configuration of two points is as follows. OPENVPN (p2p): Point 1 VPN > OpenVPN > OpenVPN Click RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 101/116 Confidential...
  • Page 103 Robustel GoRugged R2000 Dual User Guide The modifications will take effect after click “Submit > Save & Apply”. Point 2 VPN > OpenVPN > OpenVPN Click RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 102/116 Confidential...
  • Page 104 Robustel GoRugged R2000 Dual User Guide The modifications will take effect after click “Submit > Save & Apply”. The comparison between point 1 and point 2 is as following picture: RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 103/116 Confidential...

  • Page 105: Gre Vpn

    Robustel GoRugged R2000 Dual User Guide 4.2.3 GRE VPN VPN > GRE > GRE Click GRE-1： The modifications will take effect after click “Submit > Save & Apply”. GRE-2: RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 104/116 Confidential...
  • Page 106 Robustel GoRugged R2000 Dual User Guide The modifications will take effect after click “Submit > Save & Apply”. The comparison between point 1 and point 2 is as following picture: RT_UG_R2000 Dual_v.1.0.5 25 April, 2017 105/116 Confidential...

  • Page 107: Chapter 5 Cli Introduction

    Robustel GoRugged R2000 Dual User Guide Chapter 5 CLI Introduction 5.1 What’s CLI The R2000 Dual command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection.

  • Page 108: How To Use Cli Configure Router

    Robustel GoRugged R2000 Dual User Guide 5.2 How to Use CLI Configure Router Following is a list about the description of help and the error should be encountered in the configuring program. Commands/tips Description Typing a question mark “?” will show you the help information.
  • Page 109 Robustel GoRugged R2000 Dual User Guide Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success # config save_and_apply // save and apply current configuration, make you configuration effect Example 3: Set link-manager # set...
  • Page 110 Robustel GoRugged R2000 Dual User Guide Enum Primary Link (wwan1/wwan2/wan/WiFi) # set link_manager primary_link wwan1 //select “wwan1” as primary_link //setting succeed # set link_manager link 1 type Type desc Description connection_type Connection Type wwan WWAN Settings static_addr Static Address Settings...
  • Page 111 Robustel GoRugged R2000 Dual User Guide Example 5: Set LAN IP address # show lan all network { id = 1 interface = lan0 ip = 192.168.0.1 netmask = 255.255.255.0 mtu = 1500 dhcp { enable = true mode = server relay_server = ""...
  • Page 112 Robustel GoRugged R2000 Dual User Guide dhcp DHCP Settings # set lan network 1 interface lan0 # set lan network 1 ip 172.16.99.22 //set IP address for lan //setting succeed # set lan network 1 netmask 255.255.0.0 … # config save_and_apply...
  • Page 113 Robustel GoRugged R2000 Dual User Guide sim { id = 2 card = sim2 phone_number = "" extra_at_cmd = "" network_type = auto band_select_type = all band_gsm_850 = false band_gsm_900 = false band_gsm_1800 = false band_gsm_1900 = false band_wcdma_850 = false...

  • Page 114: Commands Reference

    Robustel GoRugged R2000 Dual User Guide network_type Network Type band_select_type Band Select Type band_gsm_850 GSM 850 band_gsm_900 GSM 900 band_gsm_1800 GSM 1800 band_gsm_1900 GSM 1900 band_wcdma_850 WCDMA 850 band_wcdma_900 WCDMA 900 band_wcdma_1900 WCDMA 1900 band_wcdma_2100 WCDMA 2100 band_lte_800 LTE 800 (band 20)

  • Page 115: Glossary

    Robustel GoRugged R2000 Dual User Guide Glossary Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network Application ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting...
  • Page 116 Robustel GoRugged R2000 Dual User Guide Abbreviations Description IPsec Internet Protocol Security kbps kbits per second L2TP Layer 2 Tunneling Protocol local area network Light Emitting Diode Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network...
  • Page 117 Robustel GoRugged R2000 Dual User Guide Abbreviations Description USSD Unstructured Supplementary Service Data Volts Direct current VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network WWAN Wireless Wide Area Network WLAN Wireless local area network RT_UG_R2000 Dual_v.1.0.5...
