Robustel GoRugged R2000 Quick Guide

Chapter 2 Hardware Installation

Install SIM Card

2.1

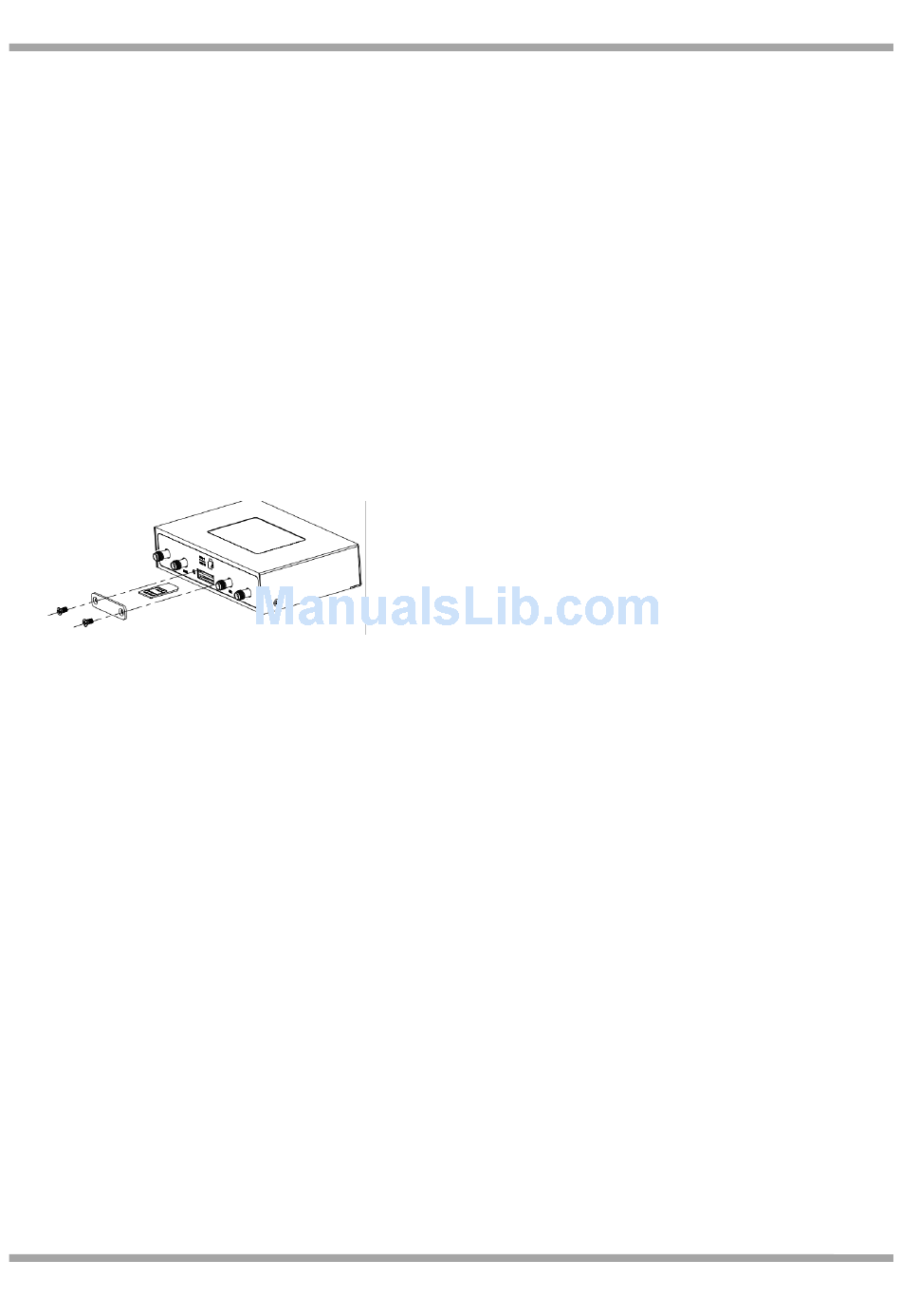

Remove slot cover

1. Make sure power supply is disconnected.
2. Use a screwdriver to unscrew the screw on the cover, and then remove the cover, you could find the SIM Card
slots.
Inserting SIM Card

3. Insert the SIM card, and you need press the card with your fingers until you hear "a cracking sound". Then use a
screwdriver to screw the cover.
Removing SIM Card

4. Make sure router is power off.
5. Press the card until you hear "a cracking sound", when the card will pop up to be pulled out.
Note:
1. Recommended torque for inserting is 0.5N.m and the maximum torque is 0.7N.m.
2. Please use the specific M2M SIM card when the device works in extreme temperature (temperature exceeding
℃
0-40 ), because the long-time working of regular SIM card in harsh environment (temperature exceeding
℃
0-40 )may increase the possibility of SIM card failure.
3. Don't forget screw the cover for again-theft.
4. Don't touch the metal surface of the SIM card in case information in the card is lost or destroyed.
5. Don't bend or scratch your SIM card. Keep the card away from electricity and magnetism.
6. Make sure router is power off before inserting or removing your SIM card.

Connect the External Antenna

2.2
Connect router with an external antenna connector. Make sure the antenna is within correct frequency range and is
screwed tightly. Recommended torque for mounting is 0.35N.m

Ground the Router

2.3
Grounding and wire router helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground
connection from the ground by screwing to the grounding surface before connecting devices.
Note: This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel.
RT_QG_R2000 Installation and Configuration_v.2.0.2 18.11.2016 5/17
