Figure 4–32: Print Menu - Tektronix MTD200 User Manual

MTD200 MPEG Test Decoder User Manual
PRINT Menu. The PRINT menu provides all functions required for the output
of test reports, program contents and device settings to a printer. The output is in
the form of ASCII text via the RS–232 interface (see Set up RS232 Menu on
page 4–33). Only common control characters are used. The page length is fixed
to 60 lines. At the end of each line a <carriage return> (0Dhex) and a <line feed
> (0Ahex) is sent, and at the end of the page <form feed> (0Chex). With this
configuration any printer equipped with a serial interface can be used.

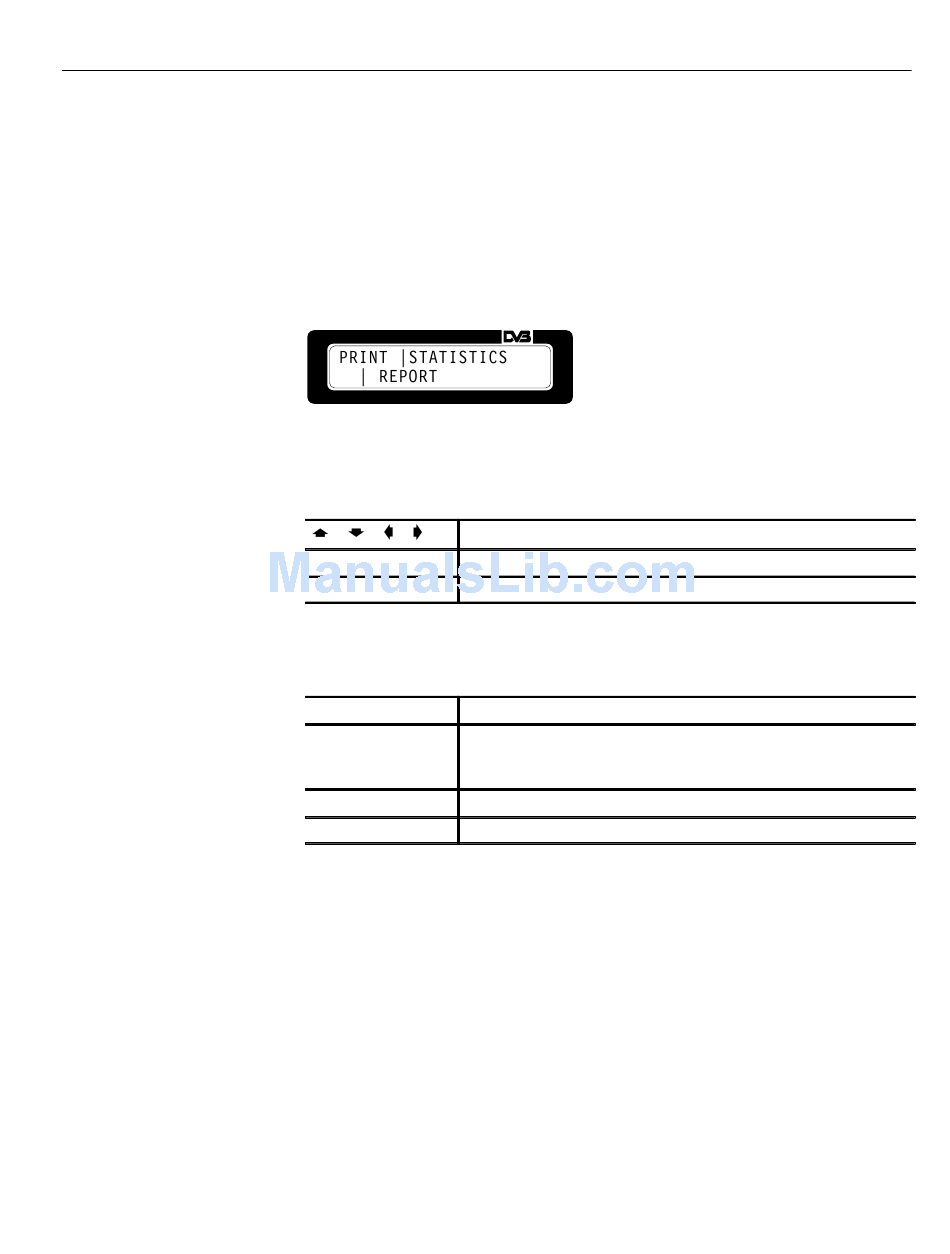

Figure 4–32: PRINT menu
Set cursor to required item
ENTER The submenu for starting or stopping the desired printout is called up.
ESC Returns to MAIN menu
The following information can be printed:
STATISTICS Hardcopy of currently displayed MONITORING/STATISTICS menu
REPORT Content of MONITORING/REPORT Menu. The range to be printed is
selectable. The range added to the report since the last printout is
preset.
PROGRAM INFO List of detailed contents of applied data stream.
CONFIG Current settings of MPEG2 Measurement Decoder DVMD.
