MTD200 MPEG Test Decoder User Manual
MONITORING/PARAMETER GROUP Menu. For monitoring the transport stream, the
measurement parameters (see Table 2–1 on page 2–3) can be activated individu-
ally in an M-out-of-N selection. Only error seconds for active parameters are
signaled to LEDs, indicated in the MONITORING/STATISTICS Menu and
entered in the report (refer to MONITORING/REPORT Menu on page 4–13).
Activated for Parameter
monitoring

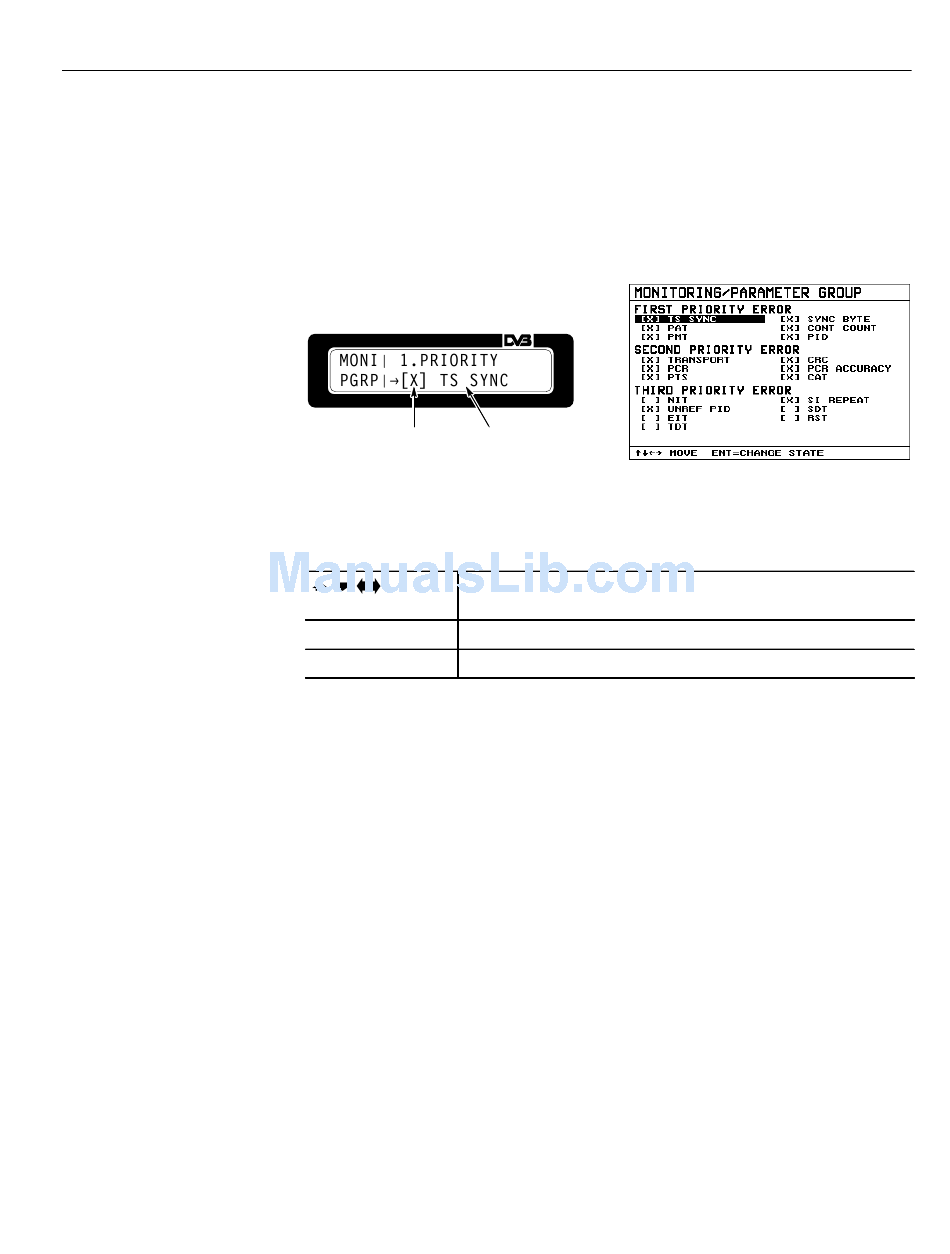

Figure 4–18: MONITORING/PARAMETER GROUP menu
Set cursor to desired parameter (for example, FIRST PRIORITY
ERROR: TS SYNC)
ENTER Switches monitoring for the selected parameter on '[X]' or off '[ ]'
ESC Returns to the MONITORING menu
The structure of this menu is identical to that of the MONITORING/STA-
TISTICS Menu. Instead of the error counter, the marker for parameter moni-
toring on '[X]' or off '[ ]' is displayed in front of each parameter.
MONITORING/LIMITS Menu. In addition to active state of individual parameters,
the limits for the distances of PCR values and PSI and SI tables can be indicated
(see Table 4–1). When a limit is exceeded, the error condition is considered
fulfilled and an error is entered in the report and error seconds in the statistics for
active parameters.
Manual Operation
4–15
