TS INPUT ROUTE Menu
MTD200 MPEG Test Decoder User Manual
The TS INPUT menu provides the functions required for selecting the input for
the MPEG2 transport stream and for configuring synchronization to the transport
stream.
Parallel
Serial front Root
Serial rear

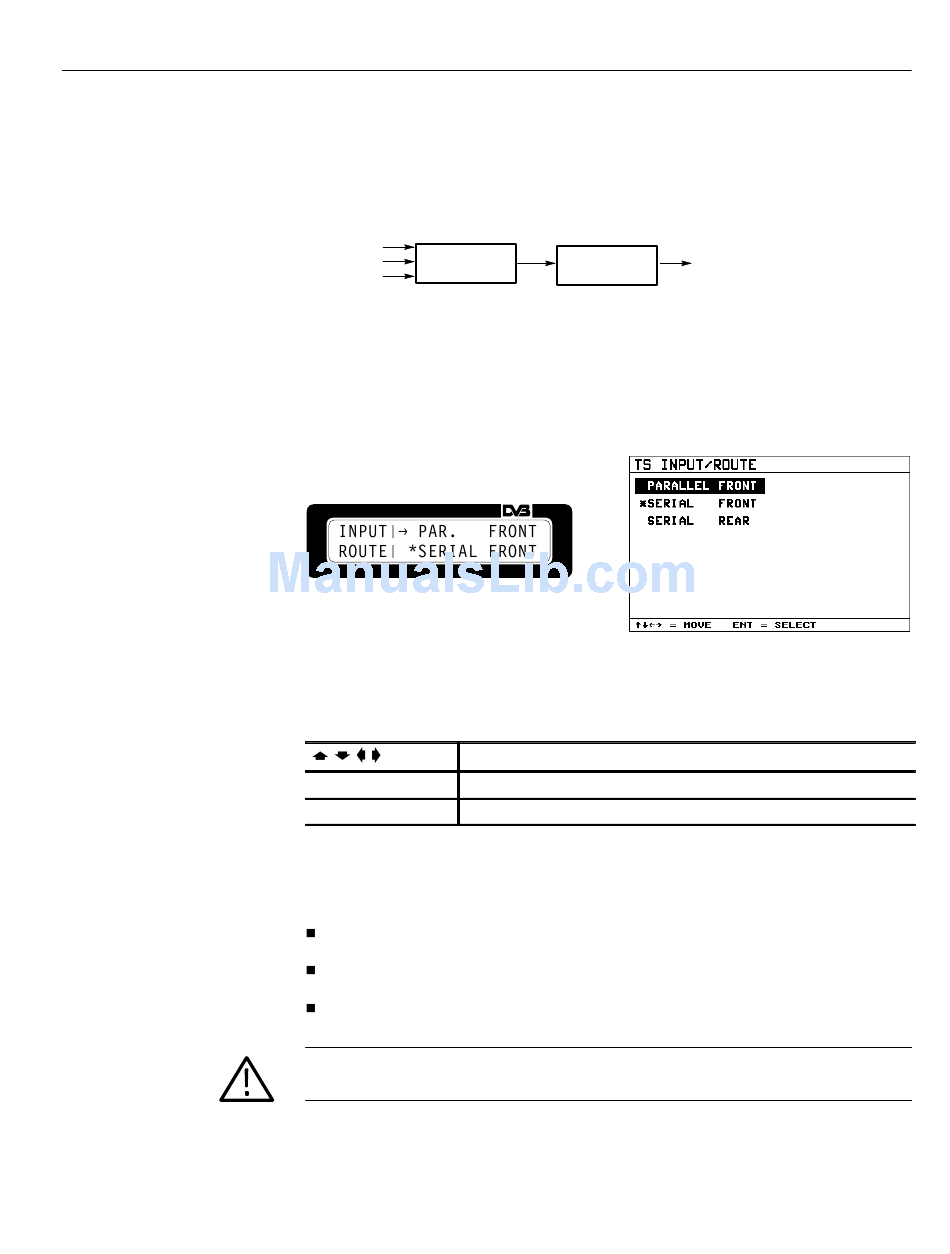

Figure 4–29: Interaction of functions in the TS INPUT menu
TS INPUT/ROUTE Menu. In the TS INPUT/ROUTE menu, the input for the
transport stream can be selected.
Figure 4–30: TS INPUT/ROUTE menu
Set cursor to desired transport stream input
ENTER Selects the desired input, and marks it with an asterisk (*).
ESC Returns to the TS INPUT menu
The following three inputs are provided on the MPEG test decoder for the
MPEG2 data stream:
PARALLEL
SERIAL FRONT
SERIAL REAR
CAUTION. The maximum data rate may be 54 Mbit/s. A packet may have a length
of 188 Byte or 204 Byte (188 data bytes + 16 error-correction bytes).
Sync condition
parallel input (LVDS) at front panel
serial, asynchronous input (BNC) on front panel
serial, asynchronous input (BNC) at the rear.
Manual Operation
TS
4–27
