TS INPUT/SYNC CONDITION Menu. The sync lock and sync loss is monitored from
the TS INPUT/SYNC CONDITION menu.

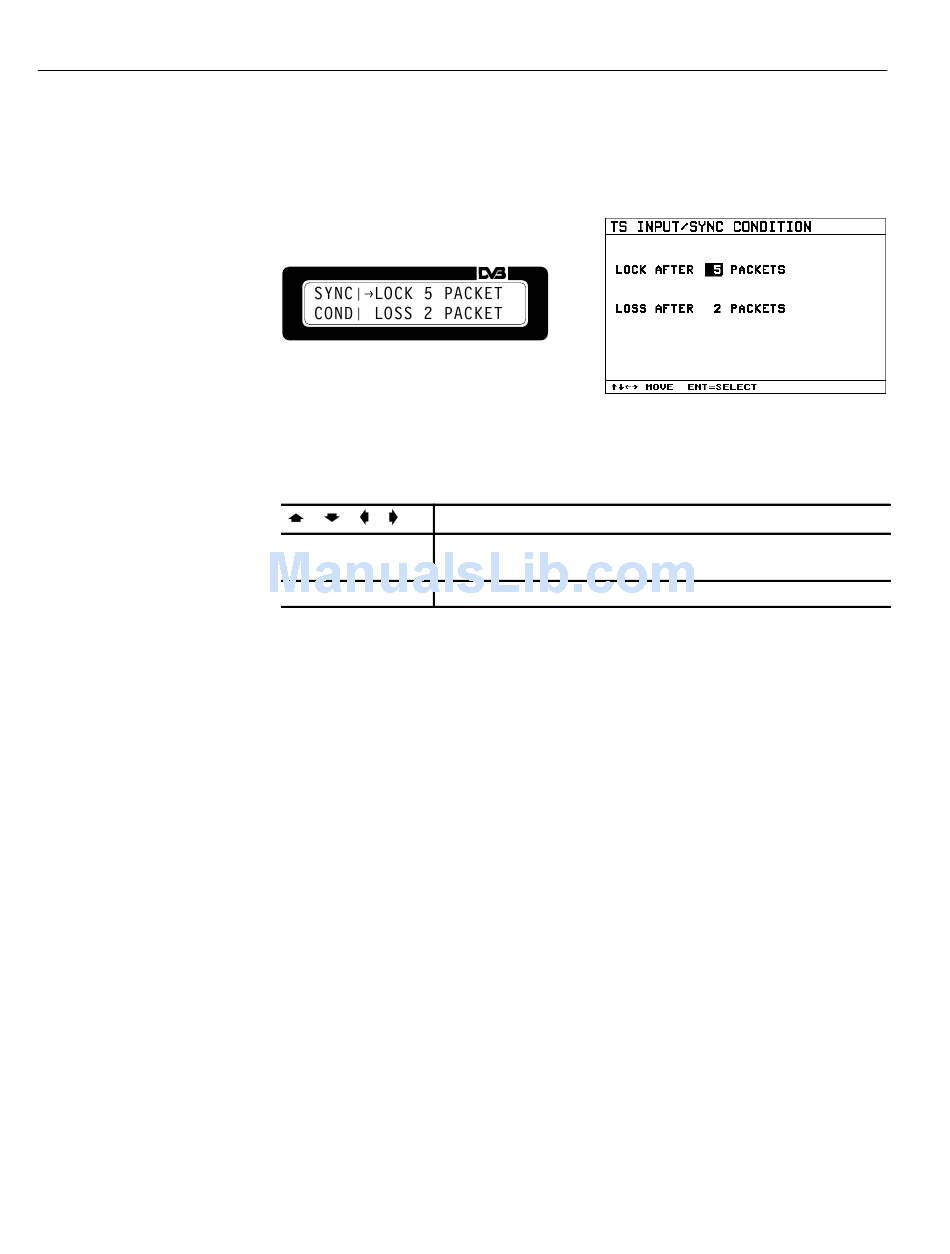

Figure 4–31: TS INPUT/SYNC CONDITION menu
Set cursor to LOCK or LOSS
ENTER Calls up the entry of numerals (refer to Entering Numerals on
page 4–7) and enters the number of sync bytes.
ESC Returns to TS INPUT menu
For monitoring synchronization to the MPEG2 transport stream, a sync
hysteresis can be generated separately for sync lock and sync loss. The sync
hysteresis specifies the number of successive valid/invalid sync words received
before the measurement decoder identifies a sync lock (TS SYNC LOCK) or
sync loss (TS SYNC LOSS).
LOCK Number of valid sync words before TS SYNC LOCK is
recognized, selectable between 1 and 31
LOSS Number of invalid sync words before a TS SYNC LOSS is
recognized, selectable between 1 and 7
