Chapter 2: Jumpers and Connectors

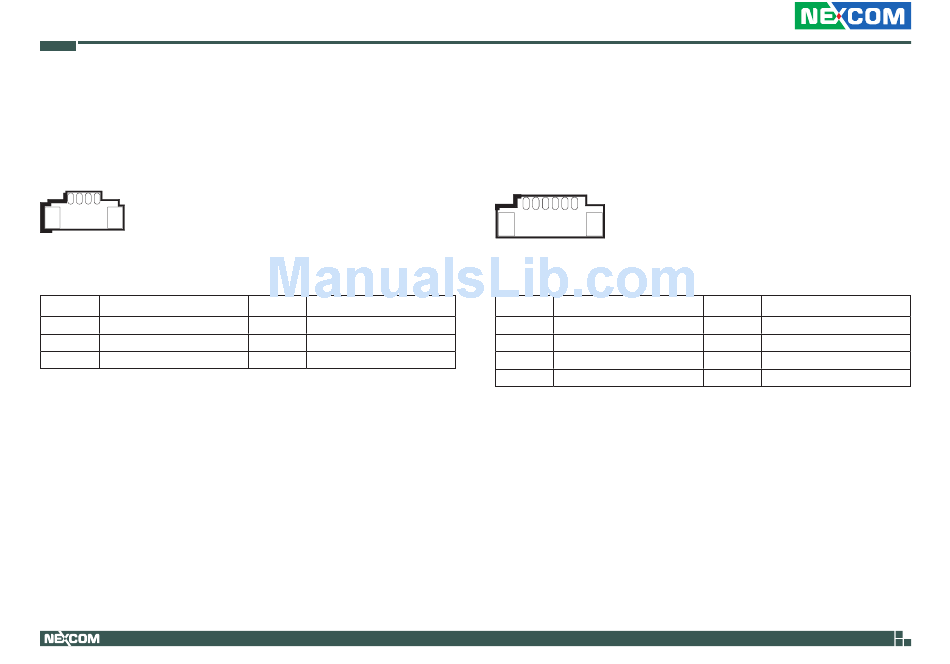

USB Connector

Connector type: 1x4 4-pin header, 1.25mm pitch
Connector location: J3
1 4
Pin Definition
1 5VSB
3 USB2P7
MH1 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2N7
4 GND
MH2 GND

Light Sensor Connector

Connector type: 1x6 6-pin header, 1.25mm pitch
Connector location: J5
1 6
Pin Definition
1 NC
3 GND
5 EC_I2C_CLK
MH1 GND
21
Pin Definition
2 3VSB
4 EC_I2C_DATA
6 INT
MH2 GND
