Chapter 2: Jumpers and Connectors

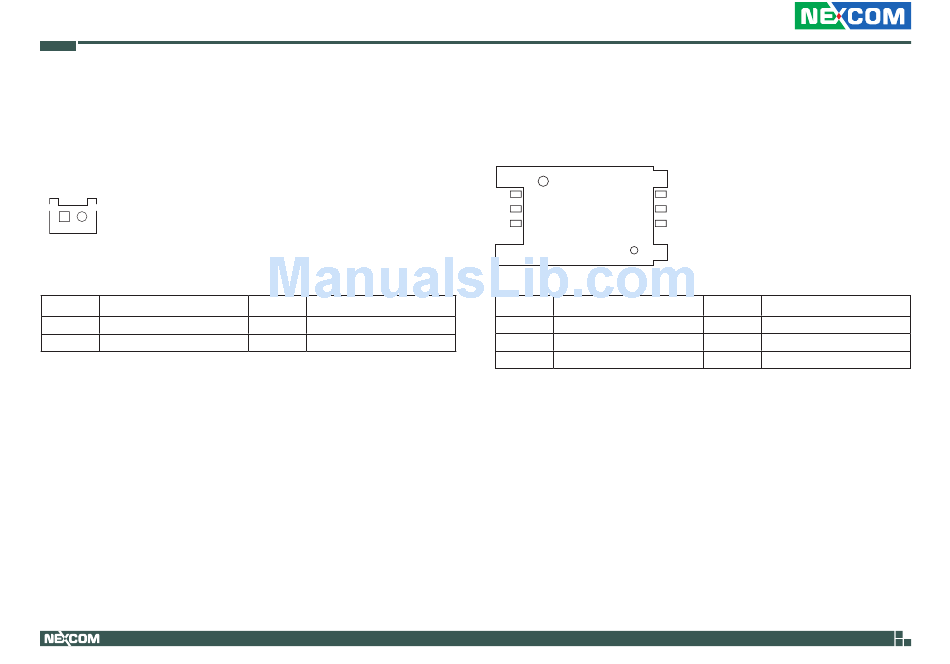

Battery Connector

Connector type: 1x2 2-pin header, JST 1.25mm pitch
Connector location: J8
1 2
Pin Definition
1 GND
MH1 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 RTC
MH2 GND

SIM Card Connector

Connector type: SIM card slot
Connector location: CN5
C5
C6
C7
Pin Definition
C1 UIM_PWR
C3 UIM_CLK
C6 UIM_VPP
25
C1
C2
C3
Pin Definition
C2 UIM_RESET
C5 GND
C7 UIM_DATA
