Chapter 2: Jumpers and Connectors

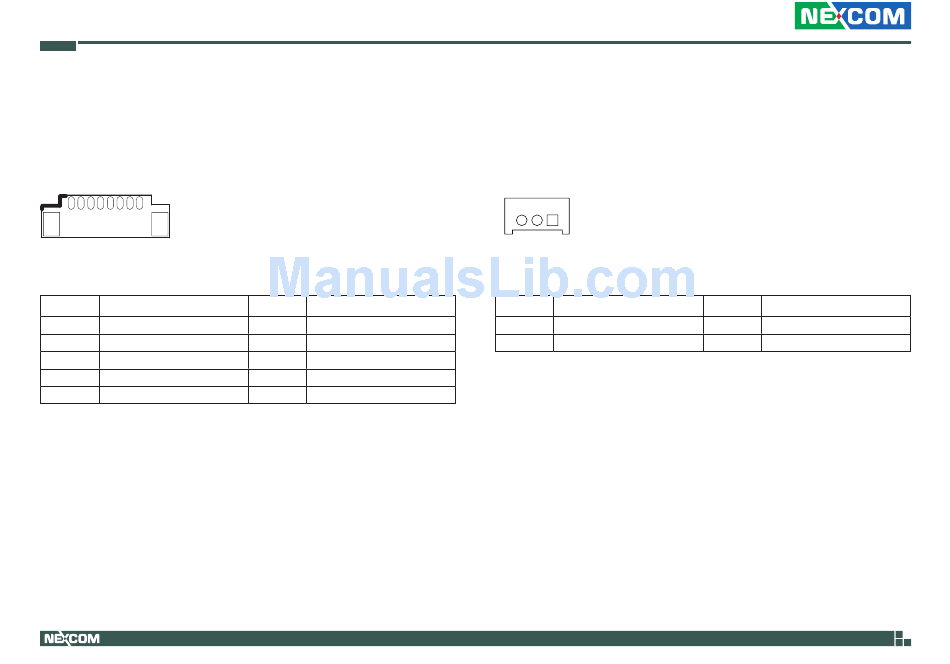

Touch Control Board Connector
Connector type: 1x8 8-pin header, 1.25mm pitch
Connector location: J7
1
8
Pin
Definition
1
VCC3
3
EC_I2C_CLK
5
INT
7
ATXBT#
MH1
GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
EC_I2C_DATA
4
EC_LED_PWM
6
GND
8
RSTBTN#
MH2
GND
FAN Connector
Connector type: 1x3 3-pin header, 1.0mm pitch
Connector location: J9
3
1
Pin
Definition
1
GND
3
FAN_12V_FB
22
Pin
Definition
2
FAN_12V
(M)PPC-240T-HW-01 User Manual
