Parallel Port Interface

The MOPSlcdLX incorporates a parallel port that can be set to uni-/bidirectional and supports EPP operating
modes.
10.1

Connector

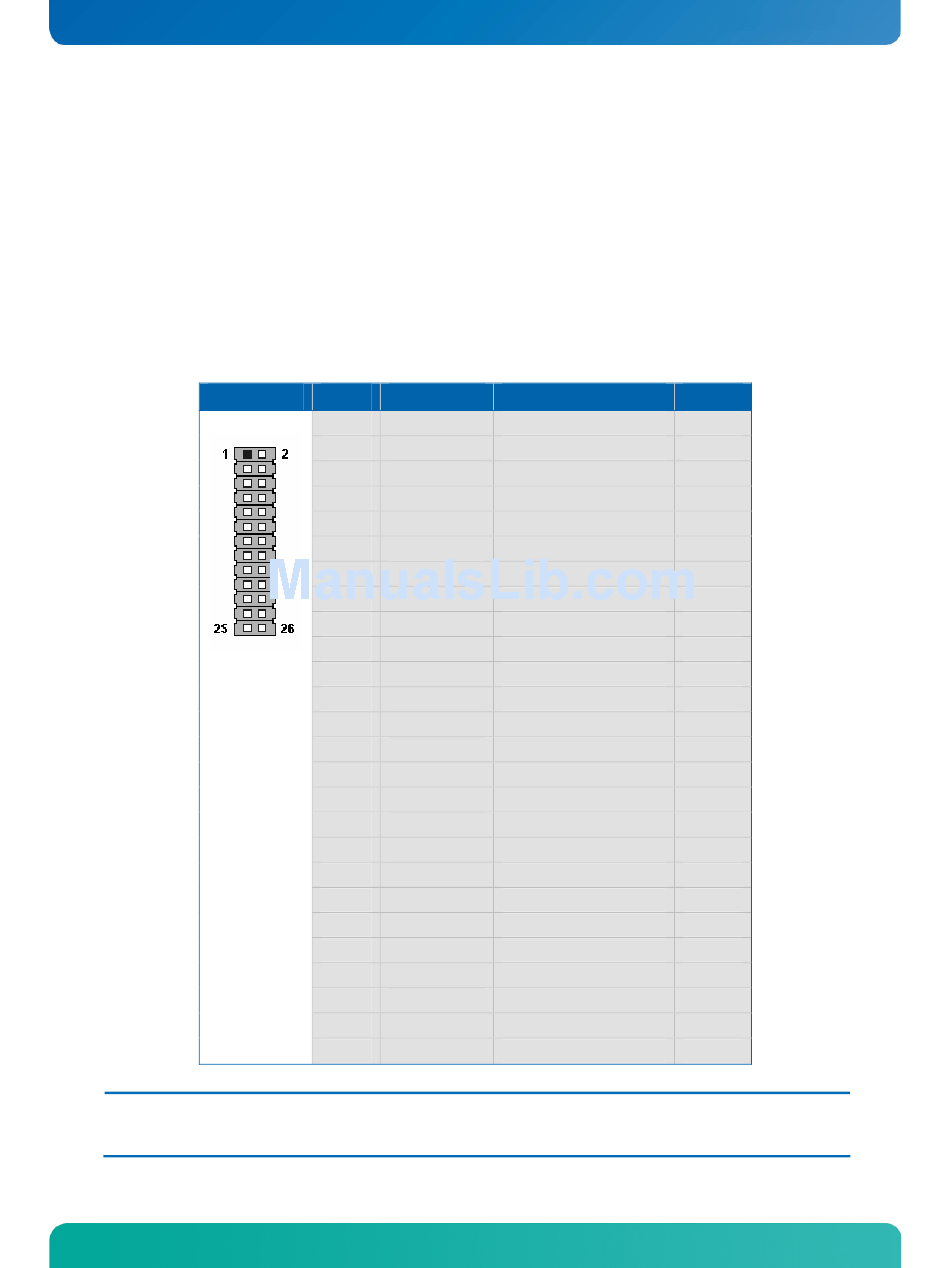

The parallel port is available through the X15004 connector (26 pins). To have the signals available on a
standard parallel interface connector DSUB25 an adapter cable is required which is offered by KONTRON
(KAB-DSUB25-1, part number 96015-0000-00-0).
Header
Note:
To protect the external power lines of peripheral device make sure that
1)
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Page 19
Pin Signal Name
1 /STB
2 /AFD
3 D0
/ERR
4
D1
5
/INIT
6
D2
7
/SLIN
8
D3
9
10 GND
11 D4
12 GND
13 D5
14 GND
D6
15
GND
16
D7
17
GND
18
/ACK
19
GND
20
21 /BUSY
22 GND
23 PE
24 GND
/SLCT
25
1)
26 VCC
MOPSlcdLX User's Guide
Parallel Port Interface
Function DSUB25
Strobe 1
Autofeed 14
Data 0 2
Error 15
Data 1 3
Init 16
Data 2 4
Select in 17
Data 3 5
Ground 18
Data 4 6
Ground 19
Data 5 7
Ground 20
Data 6 8
Ground 21
Data 7 9
Ground 22
Acknowledge 10
Ground 23
Busy 11
Ground 24
Paper out 12
Ground 25
Select out 13
Power +5V ---
