- Page 1 MSM200X/XP/XU & SMA200 Document Revision 100 If it's embedded, it's Kontron.
-
Page 3: Table Of Contents
WEEE Application ........................6 Swiss Quality ..........................6 1.10 The Swiss Association for Quality and Management Systems..............7 Introduction ................. 8 MSM200X/XP/XU & SMA200 Ordering Information................8 MSM200X/XP/XU & SMA200 Applications ..................8 Block Diagram ........................9 Product Photos ........................10 2.4.1 Top View, MSMXP with SMA200 and Heat Spreader HS1..............10 2.4.2... - Page 4 6.1.4 Top of the MSM200X with SMA200 and Passive Cooler..............37 6.1.5 Front of the MSM200X with SMA200 and Passive Cooler ..............37 6.1.6 3D Perspective of the MSM200X with SMA200 and Passive Cooler ............ 38 Thermoscans ........................39 www.kontron.com...
- Page 5 BIOS Setup Utility .................... 41 BIOS Setup .......................... 43 7.3.1 Main Menu.......................... 43 7.3.2 Exit Menu ........................... 44 BIOS Update ........................45 Driver Installation Instructions ....................46 7.5.1 Windows XP SP3 Fresh Installation ................... 46 Appendix A: Document Revision History ..........47 Index..................48 www.kontron.com...
-
Page 6: User Information
Kontron AG will not be responsible for any defects or damages to other products not supplied by Kontron AG that are caused by a faulty Kontron AG product. -
Page 7: Technical Support
MSM200X/XP/XU & SMA200 / User Information Technical Support Technicians and engineers from Kontron AG and/or its subsidiaries are available for technical support. We are committed to making our products easy to use and will help you use our products in your systems. -
Page 8: Rohs Compatible Product Design
Directive. Components and sub-assemblies are not subject to product compliance. In other words, since Kontron Compact Computers AG does not deliver ready-made products to end users the WEEE directive is not applicable for KCC. Users are nevertheless encouraged to properly recycle all electronic products that have reached the end of their life cycle. -
Page 9: The Swiss Association For Quality And Management Systems
The SQS Certificate ISO 9001:2008 has been issued to Kontron Compact Computers AG in the field of development, manufacturing and sales of embedded computer boards, embedded computer modules and computer systems. The certification is valid for three years at which time an audit is performed for recertification. -
Page 10: Introduction
MSM200X/XP/XU & SMA200 / Introduction Introduction MSM200X/XP/XU & SMA200 Ordering Information Part / Option Part Nr. Description MSM200X 802370 PCI/104 board, without SMA200 MSM200XP 802372 PCI/104express board, without SMA200 MSM200XU 802371 PCI/104express board, without SMA200 Option WLAN MCex 807414 PCIexpress MiniCard assembled, with antenna cable... -
Page 11: Block Diagram
MSM200X/XP/XU & SMA200 / Introduction Block Diagram Z510 / Z530 www.kontron.com... -
Page 12: Product Photos

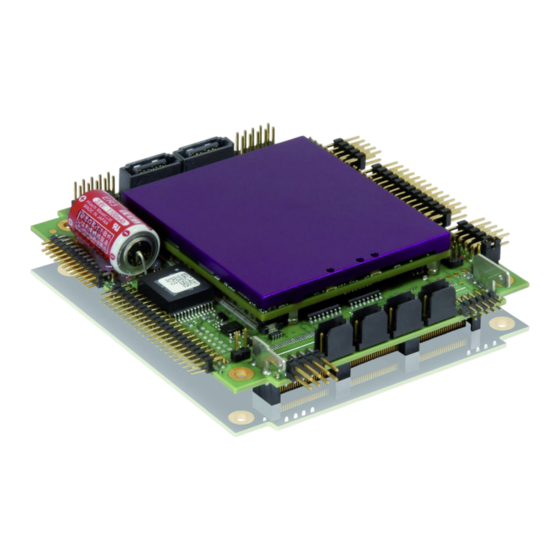

MSM200X/XP/XU & SMA200 / Introduction Product Photos 2.4.1 Top View, MSMXP with SMA200 and Heat Spreader HS1 2.4.2 Bottom View, MSMXU www.kontron.com... -
Page 13: Standards
PCI Express www.pcisg.com www.smbus.org www.intel.com /labs/manage/wfm Wired for management baseline ALC882 www.developer.intel.com/ial/scalableplatforms/audio www.developer.intel.com/design/chipset/industry/lpc.htm ATA/ATAPI-6 www.t13.org ACPI www.acpi.info Power management Peripheral Incompatibilities The following peripherals are incompatible with the MSM200X/XP/XU & SMA200. MSMMX104ex » MSMG104ex » MSMG104+ » MSMJ104+ » www.kontron.com... -
Page 14: Specifications
MSM200X/XP/XU & SMA200 / Specifications Specifications Intel Atom Z510 1.10GHz with 0.5MB L2-cache Intel Atom Z530 1.60GHz with 0.5MB L2-cache Clock 1.1 or 1.6GHz 1st Level Cache 2x 32kByte 2nd Level Cache 0.54MByte (on die) Technology 40nm VCCCore @ 1.6GHz 1.050V... - Page 15 MSM200X/XP/XU & SMA200 / Specifications Intel US15W PCIe BUS 2x x1 lane EIDE BUS 1x Ultra PATA 100 SATA BUS USB V2.0 8 channel USB APIC Intel I/O APIC V2.0 SMBus controller FirmWare Hub for BIOS devices Serialized BUS (no ISA) used for external SuperI/O Sound 2.3 HDA interface with 192kHz sampling rate and 8 channels...
- Page 16 MSM200X/XP/XU & SMA200 / Specifications Physical Characteristics Length: 102mm Dimensions Depth: 90mm Height: 33.5mm maximum with all options Weight 250 grams Operating Environment Relative Humidity 5-90% non-condensing Depends on the CPU and the cooling concept. See Section 6.3. Operating Temperature Standard (with heat spreader): -25°C - +70°C...
-
Page 17: Connectors & Jumpers
MSM200X/XP/XU & SMA200 / Connectors & Jumpers Connectors & Jumpers Assembly Views 4.1.1 Top Side, MSMX Version 1.0 www.kontron.com... -
Page 18: Bottom Side, Msmx Version 1.0
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.1.2 Bottom Side, MSMX Version 1.0 www.kontron.com... -
Page 19: Connector References
MSM200X/XP/XU & SMA200 / Connectors & Jumpers Connector References Connector Structure Remarks Power Input 5V Power Connector 2.54mm Power Input GND VGA Connector 5 x 2 2.54mm LVDS Interface 6/8bit 15 x 2 Sound Port 5 x 2 Printer (LPT1) 13 x 2 2.54mm... -
Page 20: X1/X4 Or X2 Power Supply
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.1 X1/X4 or X2 Power Supply Recommended: X1 Power Supply VCC 5V (mounting tab 2.8mm) Signal Information Main supply +5V www.compona.ch Part Nr. 236 712-1 (mounting tab 4.75mm) X4 Power Supply GND Signal Information www.compona.ch... -
Page 21: X10 Vga Monitor (Crt-Signals)
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.3 X10 VGA Monitor (CRT-signals) 10 Pin-M 15 Pin HiDensity DSUB Signal Signal VGA red VGA green Green VGA blue Blue Horizontal Synch H-Synch Vertical Synch V-Synch 5 + 11 Bridged Ground 5, 6, 7, 8... -
Page 22: X11 Lvds
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.4 X11 LVDS Terminated: 100 Ohm on each differential pair EMI-Protection: None Signal Signal LVDS_DATA0- LVDS_DATA0+ LVDS_DATA1- LVDS_DATA1+ LVDS_DATA2- LVDS_DATA2+ LVDS_DATA3- LVDS_DATA3+ LVDS_CLK- LVDS_CLK+ 5V Output 3.3V Output LVDS_DDC_CLK LVDS_DDC_DATA PCIE_RST# LVDS_Backlight_Enable LVDS_Backlight_Control... -
Page 23: X30 Printer Port (Centronics)
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.6 X30 Printer Port (Centronics) The printer connector provides an interface for 8bit Centronics printers. Protection: None Header onboard D-SUB connector Signal Pin 1 Pin 1 Strobe Pin 3 Pin 2 Data 0... -
Page 24: X33 Lan Interface
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.8 X33 LAN Interface Termination: 1000Base-T compliant EMI Protection: None Overvoltage Protection: None Signal Signal MDI_A-X MDI_A+X MDI_B-X MDI_B+X LED0 +V3.3A_RTC VCC3 (+3.3V_82574) LED1 LED2 MDI_C-X MDI_C+X MDI_D-X MDI_D+X 4.2.9 X38 Serial Port COM1... -
Page 25: X40 Serial Port Com4
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.11 X40 Serial Port COM4 Protection: None Header onboard D-SUB connector Signal RS422 RS485 Pin 1 Pin 1 Pin 2 Pin 6 Pin 3 Pin 2 Pin 4 Pin 7 Pin 5 Pin 3... -
Page 26: X50/X51/X52/X53 Usb0/Usb1/Usb2/Usb3
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.14 X50/X51/X52/X53 USB0/USB1/USB2/USB3 Termination: None EMI-filtered: Yes, with bifilar choke Overvoltage protection: Suppress or diode to GND Signal USB-PX0- USB-PX+ Remarks: Use twisted pair USB cables for USB V2.0 compatibility Components assembled on MSM200 Dubox™... -
Page 27: X62 / X63 Sata0/Sata1
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.16 X62 / X63 SATA0/SATA1 Termination: None EMI-filtered: None Overvoltage protection: None Signal Signal TX_DATA+ TX_DATA- RX_DATA- RX_DATA+ 4.2.17 X101 PC/104+ BUS Interface GND/5.0V KEY2 Reserved AD00 VI/O AD02 AD01 AD05 AD04 AD03... -
Page 28: X102 Pci/104Express Bus (Top View Signal Assignment)
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.18 X102 PCI/104express BUS (Top View Signal Assignment) Signal Signal Reserved (GPIO0) PE_RST# 3.3V 3.3V USB1+ USB0+ USB1- USB0- PEx1_1T+ PEx1_0T+ PEx1_1T- PEx1_0T- PEx1_2T+ PEx1_3T+ PEx1_2T- PEx1_3T- PEx1_1R+ PEx1_0R+ PEx1_1R- PEx1_0R- PEx1_2R+ PEx1_3R+... - Page 29 MSM200X/XP/XU & SMA200 / Connectors & Jumpers Signal Signal SDVO_DAT (PENA#) SDVO_CLK PEx16_0R(8)+ PEx16_0R(0)+ / SDVO_TVCI+ PEx16_0R(8)- PEx16_0R(0)- / SDVO_TVCI- PEx16_0R(9)+ PEx16_0R(1)+ / SDVO_INT+ PEx16_0R(9)- PEx16_0R(1)- / SDVO_INT- PEx16_0R(10)+ PEx16_0R(2)+ / SDVO_STALL+ PEx16_0R(10)- PEx16_0R(2)- / SDVO_STALL- PEx16_0R(11) PEx16_0R(3)+ PEx16_0R(11)- PEx16_0R(3)-...
-
Page 30: X103 Pci/104Express Bus (Bottom View Signal Assignment)
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.19 X103 PCI/104express BUS (Bottom View Signal Assignment) Signal Signal PE_RST# Reserved (GPIO0) 3.3V 3.3V USB0+ USB1+ USB0- USB1- PEx1_0T+ PEx1_1T+ PEx1_0T- PEx1_1T- PEx1_3T+ PEx1_2T+ PEx1_3T- PEx1_2T- PEx1_0R+ PEx1_1R+ PEx1_0R- PEx1_1R- PEx1_3R+ PEx1_2R+... - Page 31 MSM200X/XP/XU & SMA200 / Connectors & Jumpers Signal Signal SDVO_CLK SDVO_DAT (PENA#) PEx16_0R(0)+ / SDVO_TVCI+ PEx16_0R(8)+ PEx16_0R(0)- / SDVO_TVCI- PEx16_0R(8)- PEx16_0R(1)+ / SDVO_INT+ PEx16_0R(9)+ PEx16_0R(1)- / SDVO_INT- PEx16_0R(9)- PEx16_0R(2)+ / SDVO_STALL+ PEx16_0R(10)+ PEx16_0R(2)- / SDVO_STALL- PEx16_0R(10)- PEx16_0R(3)+ PEx16_0R(11) PEx16_0R(3)- PEx16_0R(11)-...
-
Page 32: X110 Lpc-Port
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.2.20 X110 LPC-Port Signal Signal VCC 3.3V LPC AD0 LFRAME# LPC AD1 PCI_RESET# LPC AD2 VCC 3.3V LPC AD3 VCC 5V PCIE_RST# LPC_Clock (33MHz) BIOS_Enable 4.2.21 X140 PCIexpress MiniCard Signal Signal PCIE_WAKE# +V3.3_MiniCard +V1.5S... -
Page 33: Jumpers
Jumpers The following table shows the location of all jumper blocks on the MSM200X/XP/XU & SMA200 board. The numbers shown in this figure are silk screened on the board so that the pins can easily be located. This section refers to the individual pins for these jumpers. -
Page 34: The Jumpers On The Msm200X V1.0
MSM200X/XP/XU & SMA200 / Connectors & Jumpers 4.3.2 The Jumpers on the MSM200X V1.0 Top View (R232) www.kontron.com... - Page 35 MSM200X/XP/XU & SMA200 / Connectors & Jumpers Bottom View www.kontron.com...
-
Page 36: Detailed System Description
MSM200X/XP/XU & SMA200 / Detailed System Description Detailed System Description External Battery Assembly The external battery must be a 3.6Volt type. If the customer wants to connect an external battery (check for the appropriate connector in Chapter 4), some precautions must be taken:... -
Page 37: Design Considerations
MSM200X/XP/XU & SMA200 / Design Considerations Design Considerations Dimensions and Diagrams 6.1.1 Top of the MSM200X with SMA200 www.kontron.com... -
Page 38: Front Of The Msm200X With Sma200
MSM200X/XP/XU & SMA200 / Design Considerations 6.1.2 Front of the MSM200X with SMA200 6.1.3 3D Perspective of the MSM200X with SMA200 www.kontron.com... -
Page 39: Top Of The Msm200X With Sma200 And Passive Cooler
MSM200X/XP/XU & SMA200 / Design Considerations 6.1.4 Top of the MSM200X with SMA200 and Passive Cooler 6.1.5 Front of the MSM200X with SMA200 and Passive Cooler www.kontron.com... -
Page 40: Perspective Of The Msm200X With Sma200 And Passive Cooler
MSM200X/XP/XU & SMA200 / Design Considerations 6.1.6 3D Perspective of the MSM200X with SMA200 and Passive Cooler www.kontron.com... -
Page 41: Thermoscans
MSM200X/XP/XU & SMA200 / Design Considerations Thermoscans 6.2.1 60 Minutes with Heat Spreader (Part Nr. 805840) 6.2.2 60 Minutes with Heat Spreader (Part Nr. 805840) and Passive Cooler (Part Nr. 540185) www.kontron.com... -
Page 42: Thermal Specifications
MSM200X/XP/XU & SMA200 / Design Considerations Thermal Specifications The temperature is specified at 90°C for the BGA case. The MSM200 heat spreader can be used with your own cooling solution or the KCC heat sink can be used. CPU: SMA200 / T (case) = 90°C / Power Consumption: 6-8W... -
Page 43: Bios Operation
MSM200X/XP/XU & SMA200 / BIOS Operation BIOS Operation ® The module is equipped with a Phoenix BIOS, which is located in an onboard flash memory. The BIOS can be updated using a Flash utility. Determining the BIOS Version ® The Phoenix BIOS version can be determined on the BIOS Setup screen. - Page 44 MSM200X/XP/XU & SMA200 / BIOS Operation Menu Bar The menu bar at the top of the window lists different menus. Use the left/right arrow keys to make a selection. Legend Bar Function → or ← Arrow Key Select Screen ↑ or ↓ Arrow Key...
-
Page 45: Bios Setup
MSM200X/XP/XU & SMA200 / BIOS Operation BIOS Setup 7.3.1 Main Menu www.kontron.com... -
Page 46: Exit Menu
MSM200X/XP/XU & SMA200 / BIOS Operation 7.3.2 Exit Menu Feature Description Exit Saving Changes Exit utility and save changes to CMOS. Exit Discarding Changes Exit utility without saving setup data to CMOS. Load Setup Defaults Load default values for all setup items. -
Page 47: Bios Update
MSM200X/XP/XU & SMA200 / BIOS Operation BIOS Update Before downloading a BIOS, please check the following: Make a bootable diskette which includes the following files: DELEP200.exe » Phlash16.exe » Core BIOS (SM200_xxx_FLASHABL.ROM) » Rename the SM200_xxx_FLASHABL.ROM file to bios.rom »... -
Page 48: Driver Installation Instructions
MSM200X/XP/XU & SMA200 / BIOS Operation Driver Installation Instructions 7.5.1 Windows XP SP3 Fresh Installation Follow the instructions in this section if you are performing a new installation of Windows XP SP3 onto the SATA drive. Expand all Files in the 3132_x86_1.0.22.0_logo.zip filer to a diskette and connect a USB Floppy drive to the MSM200. -
Page 49: Appendix A: Document Revision History
MSM200X/XP/XU & SMA200 / Appendix A: Document Revision History Appendix A: Document Revision History Revision Date Edited by Changes 07.Sep.2011 First release of manual. www.kontron.com... -
Page 50: Index
MSM200X/XP/XU & SMA200 / Index Index Applications ............ 8 Dimensions and Diagrams .........35 Assembly Views ..........15 Document Revision History ........47 Documentation ..........4 Driver Installation ...........46 BIOS Operation..........41 BIOS Setup ............ 43 BIOS Setup Guide ..........41 Environmental Protection........5 BIOS Setup Utility ........... - Page 51 MSM200X/XP/XU & SMA200 / Index CPU ..............12 External Interfaces ..........13 Graphics Memory Controller Hub ......12 Technical Support..........5 Intel US15W ............13 Thermal Specifications........40 Power Management ..........13 Thermoscans ..........39 Power Supply ............13 Trademarks ............. 4 Reset ..............
- Page 52 MSM200X/XP/XU & SMA200 / Index Corporate Offices Europe, Middle East & Africa Switzerland Kontron AG Kontron Compact Computers AG Oskar-von-Miller-Strasse 1 Nordstrasse 11/F 85386 Eching/Munich CH – 4542 Luterbach Germany Switzerland Tel.: +49 (0)8165/ 77 777 Tel.: +41 (0)32 681 58 00...
