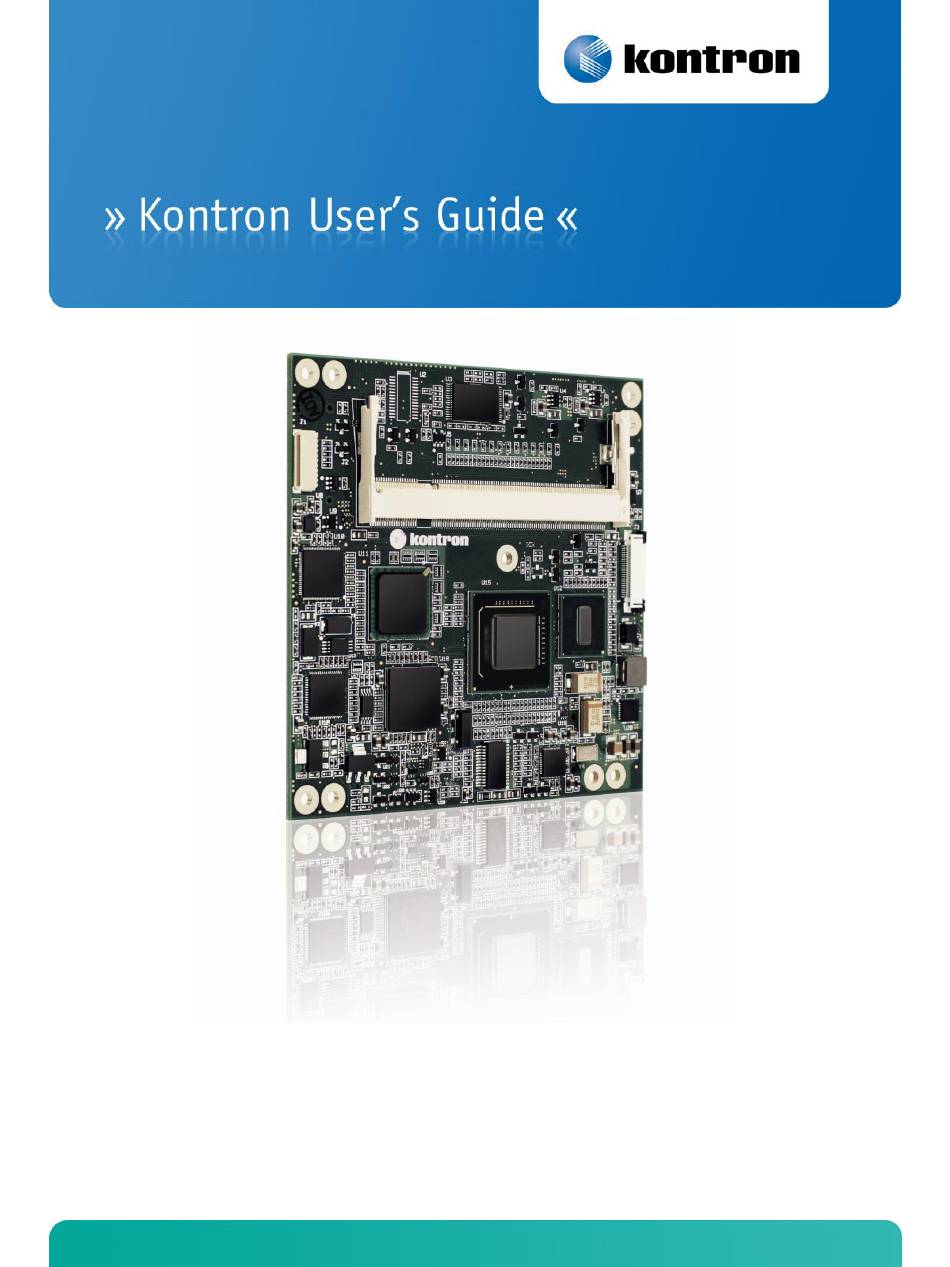

microETXexpress®-SP
Document Revision 1.12
If it's embedded, it's Kontron.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the microETXexpress-SP and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron microETXexpress-SP

Summary of Contents for Kontron microETXexpress-SP

  • Page 1 Document Revision 1.12 If it‘s embedded, it‘s Kontron.

  • Page 3: Table Of Contents

    Supply Voltage ........................11 3.4.2 Supply Current (Windows XP SP3) .................... 12 3.4.3 External RTC Battery ......................12 Environmental Specification ....................13 MTBF ..........................14 microETXexpress®-SP COM Express® Connector ........15 Connector Locations ......................15 Pinout List ........................... 16 www.kontron.com...
  • Page 4 ACPI Suspend Modes and Resume Events ..................53 Design Consideration ..............54 Thermal Management ......................54 Heatspreader Dimensions ....................... 54 microETXexpress®-SP onboard fan connector ................55 6.3.1 Location and Pin-out of fan connector ..................55 6.3.2 BIOS Settings for fan control ....................56 www.kontron.com...
  • Page 5 8.3.4 PCI/PnP Settings........................99 8.3.5 Boot Settings ........................100 8.3.6 Security Settings........................ 102 8.3.7 Exit Options ........................104 Appendix A: JIDA Standard ............105 JIDA Information ........................ 105 10 Appendix B: Architecture Information ..........106 10.1 Buses ..........................106 www.kontron.com...
  • Page 6 10.1.2 PCI/104 ........................... 106 10.2 General PC Architecture ......................106 10.3 Ports ..........................107 10.3.1 RS-232 Serial ........................107 10.3.2 Serial ATA ......................... 107 10.3.3 USB ..........................107 10.4 Programming ........................107 11 Appendix C: Document Revision History ..........108 www.kontron.com...

  • Page 7: User Information

    ―as-is‖ and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned.

  • Page 8: Warranty

    This Kontron Embedded Modules GmbH product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron Embedded Modules GmbH will at its discretion decide to repair or replace defective products.

  • Page 9: Introduction

    Intel® System Controller Hub US15W without having to stray from the secure development path of utilizing an established and future-proof industry standard. The Kontron microETXexpress®-SP offers LVDS as well as more sophisticated graphics support with SDVO. SDVO delivers additional video signals for DVI monitor outputs, SDTV and HDTV television outputs and TV tuner inputs that greatly simplify system graphics design.

  • Page 10: Understanding Microetxexpress®-Sp Functionality

    Understanding microETXexpress®-SP functionality All Kontron microETXexpress® and ETXexpress® modules contain two connectors; each of it has two rows. The primary connector has two rows called Row A and Row B. The secondary connector has two rows called Row C and Row D. The primary connector (Row A and Row B) feature the following legacy-free functionality: »...

  • Page 11: Com Express® Benefits

    microETXexpress®-SP / Introduction COM Express® Benefits Computer on modules express (COM Express) modules in compact formfactor are very compact (95 x 95 mm), highly integrated computers. All (micro)ETXexpress® modules feature a standardized form factor and a standardized connector layout that carry a specified set of signals. Each microETXexpress module is based on connector type 2 of the COM Express specification.

  • Page 12: Specification

    microETXexpress®-SP / Specification Specification Functional Specification Processor: Intel® Atom™ Zxx » CPU: 45nm Silverthorne Z510 (1.1 GHz) or Z530 (1.6 GHz) » Cores: » Bus Speed: 400 / 533 MHz » Bus/Core Ratio: 11 / 12 » Cache: 32 kByte Instruction Cache + 24 kByte L1 Cache 512 kByte L2 Cache »...
  • Page 13 microETXexpress®-SP / Specification Display Interfaces » CRT: VGA is not supported my the US15W System Controller Hub » Flat Panel: Single Channel LVDS 18/24 Bit, resolution up to 1366 x 768 (WXGA), no dithering. » Digital Display: Only SDVO supported on SDVO/PEG Interface on connector CD with resolution up to FullHD 1920x1080.

  • Page 14: Available Modules

    microETXexpress®-SP / Specification Power Management & Misc » JIDA: » K-Station: » Bootlogo: » MARS: Yes, Charger & Manager Support » HWM: Temperature Monitoring for CPU and Board Temperature (onboard W83L786 HWM) HWM for external Winbond 83627 » Passive Cooling: Passive and Critical Trip Point »...

  • Page 15: Block Diagram

    microETXexpress®-SP / Specification Block Diagram microETXexpress®-SP Intel® Atom™ (Silverthorne Z510, Z530) FSB 400/533 SDVO GMA500 SD/MMC Socket 1x18/24bit LVDS SDIO #0 Graphics (J4) PwrCtrl / Battery JTAG (J3) Intel® SCH HD Audio Connector DDR2 400/533MHz SO-DIMM System Controller Hub 5 x USB 1.1/2.0 Socket 1 x USB Client (J2)

  • Page 16: Mechanical Specification

    microETXexpress®-SP / Specification Mechanical Specification Module Dimensions » 95 mm x 95 mm ±0.2 mm Height on Top » Maximum approx. 5 mm (without printed circuit board) » Highest component: memory socket » Height is depending upon optionally CPU cooler/heatpreader Height on Bottom »...

  • Page 17: Electrical Specification

    2.5mm hardware. The pads should be tied to the PCB ground plane. Gray circles represent the mechanical mounting holes. Black circles represent the mounting holes required by the PICMG COM Express® standard. Note: A complete SolidWorks eDrawing package is available at EMD Customer Section http://emdcustomersection.kontron.com Electrical Specification 3.4.1 Supply Voltage »...

  • Page 18: Supply Current (Windows Xp Sp3)

    3.4.2 Supply Current (Windows XP SP3) The tested boards were mounted on a Kontron Evaluation Board with both a mouse and keyboard connected. The power consumption tests were executed during Windows XP SP3 by using a tool to stress the CPU (100 % load). The power measurements values were acquired after the units were subjected to a 15 minute full load test or had reached a stable CPU core temperature of 90°C.

  • Page 19: Environmental Specification

    / Specification Environmental Specification Temperature Operating: (with Kontron Embedded Modules GmbH heat-spreader plate assembly): » Ambient temperature: 0 to +60 °C » Maximum heatspreader-plate temperature: 0 to +60 °C (*) » Non-operating: -30 to +85 °C Note: *The maximum operating temperature with the heatspreader plate is the maximum measurable temperature on any spot on the heatspreader‘s surface.

  • Page 20: Mtbf

    (no fan). Estimated RTC battery life (as opposed to battery failures) is not accounted for in the above figures and needs to be considered separately. Battery life depends on both temperature and operating conditions. When the Kontron unit has external power, the only battery drain is from leakage paths.

  • Page 21: Microetxexpress®-Sp Com Express® Connector

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector microETXexpress®-SP COM Express® Connector The pinouts for microETXexpress Interface Connectors X1A and X1B are documented for convenient reference. Please see the COM Express® Specification and COM Express® Design Guide for detailed, design-level information. Connector Locations...

  • Page 22: Pinout List

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector Pinout List 4.2.1 General Signal Description Type Description I/O-3,3 Bi-directional 3,3 V IO-Signal I/O-5T Bi-dir. 3,3V I/O (5V Tolerance) I/O-5 Bi-directional 5V I/O-Signal I-3,3 3,3V Input I/OD Bi-directional Input/Output Open Drain I-5T 3,3V Input (5V Tolerance) Output Analog Output Open Drain O-1,8...

  • Page 23: Connector X1A - Row A

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.2.2 Connector X1A - Row A Signal Description Type Termination Comment GND_1 Power Ground GBE0_MDI3- Ethernet Receive Data- DP-I GBE0_MDI3+ Ethernet Receive Data+ DP-I GBE0_LINK100# Ethernet Speed LED 100Mbps O-3.3 GBE0_LINK1000# Ethernet Speed LED 1000Mbps O-3.3 GBE0_MDI2- Ethernet Receive Data-...
  • Page 24 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector USB0- USB Data- Port #0 DP-I/O PD 15k in US15W USB0+ USB Data+ Port #0 DP-I/O PD 15k in US15W VCC_RTC RTC Power Supply +3V EXCD0_PERST# PCIe Express Card 0 Reset O-3.3 EXCD0_CPPE# PCIe Express Card 0 Request I-3.3 PU 8k2 3.3V LPC_SERIRQ...
  • Page 25 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector RSVD1 Reserved RSVD2 Reserved SDIO_Clk SDIO#0 Clock O-3.3 PU 75k in US15W Bus Switch GPO0 General Purpose Output 0 O-3.3 PD 1k PI5C3390 RSVD3 Reserved RSVD4 Reserved GND_13 Power Ground VCC_12V_1 12V VCC VCC_12V_2 12V VCC VCC_12V_3 12V VCC...

  • Page 26: Connector X1A - Row B

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.2.3 Connector X1A - Row B Signal Description Type Termination Comment GND_16 Power Ground GBE0_ACT# Ethernet Activity LED LPC_FRAME# LPC Frame Indicator O-3.3 LPC_AD0 LPC Address / Data Bus IO-3.3 PU 20k in US15W LPC_AD1 LPC Address / Data Bus IO-3.3...
  • Page 27 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector USB5+ USB Data+ Port #5 DP-I/O PD 15k in US15W USB_0_1_OC# USB Overcurrent Pair 0 /1 I-3.3 PU 10k 3.3V USB1- USB Data- Port #1 DP-I/O PD 15k in US15W USB1+ USB Data+ Port #1 DP-I/O PD 15k in US15W EXCD1_PERST#...
  • Page 28 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector RSVD5 Reserved VGA_RED Not Connected not supported GND_25 Power Ground VGA_GRN Not Connected not supported VGA_BLU Not Connected not supported VGA_HSYNC Not Connected not supported VGA_VSYNC Not Connected not supported VGA_I2C_CK Not Connected not supported VGA_I2C_DAT Not Connected not supported...

  • Page 29: Connector X1B - Row C

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.2.4 Connector X1B - Row C Signal Description Type Termination Comment Power Ground IDE_D7 IDE Data Bus I/O-5T IDE_D6 IDE Data Bus I/O-5T IDE_D3 IDE Data Bus I/O-5T IDE_D15 IDE Data Bus I/O-5T IDE_D8 IDE Data Bus I/O-5T IDE_D9...
  • Page 30 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector PCI_AD29 PCI Adress & Data Bus line I/O-5T PCI Bridge PCI_AD31 PCI Adress & Data Bus line I/O-5T PCI Bridge PCI_IRQA# PCI Bus Interrupt Request A I-5T PU 8k2 5V (S0) PCI Bridge PCI_IRQB# PCI Bus Interrupt Request B I-5T PU 8k2 5V (S0)
  • Page 31 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector RSVD n.c. PEG_RX14+ n.c. PEG_RX14- n.c. C100 Power Ground C101 PEG_RX15+ n.c. C102 PEG_RX15- n.c. C103 Power Ground C104 VCC_12V 12V VCC C105 VCC_12V 12V VCC C106 VCC_12V 12V VCC C107 VCC_12V 12V VCC C108 VCC_12V 12V VCC...

  • Page 32: Connector X1B - Row D

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.2.5 Connector X1B - Row D Signal Description Type Termination Comment Power Ground IDE_D5 IDE Data Bus I/O-5T IDE_D10 IDE Data Bus I/O-5T IDE_D11 IDE Data Bus I/O-5T IDE_D12 IDE Data Bus I/O-5T IDE_D4 IDE Data Bus I/O-5T IDE_D0...
  • Page 33 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector PCI_IRQD# PCI Bus Interrupt Request D I-5T PU 8k2 5V (S0) PCI Bridge PCI_CLKRUN# PCI Clock Run O-3,3 PU 8k2 3,3V (S0) PCI_M66EN PCI_M66EN I-5T PU 8k2 5V (S0) PCI Bridge PCI_CLK CLK_PCI_33M_EXT | PCI Clock 33MHz O-3,3 PCI Bridge Power Ground...
  • Page 34 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector PEG_ENABLE# n.c. PEG_TX14+ n.c. PEG_TX14- n.c. D100 Power Ground D101 PEG_TX15+ n.c. D102 PEG_TX15- n.c. D103 Power Ground D104 VCC_12V 12V VCC D105 VCC_12V 12V VCC D106 VCC_12V 12V VCC D107 VCC_12V 12V VCC D108 VCC_12V 12V VCC...

  • Page 35: Onboard Connectors

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.2.6 Onboard Connectors Connector J1 - CPLD Debug The onboard 12pin connector J1 allows accessing the CPLD. Warning: The debug port is for internal use only. Do not connect any devices. Connector J2 - SO-DIMM DDR2 Socket Standard 200pin DDR2 SO-DIMM socket for 400MHz / 533MHz memory modules up to 2GB.

  • Page 36: Signal Description

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector Signal Description 4.3.1 PCIexpress The PCI express x1 lane is a fast connection interface for many different system devices, such as network controllers, I/O controllers or express card devices. The implementation of this subsystem complies with the COM Express® Specification.

  • Page 37: Usb

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.3.2 USB The USB interface comes with three USB controllers (6 USB ports). The USB configuration of the microETXexpress®-SP module is described in the following table: COM Express Port US15W SCH Port Description USB0 USB0 USB 2.0 compliant ports USB1...
  • Page 38 NDIS Network device or as NDIS Network device only in the device manager of the operating system. Please refer to the Kontron download page for microETXexpress®-SP for the driver Configuration The USB controllers are PCI bus devices.

  • Page 39: Sata

    Note: Using a SATA harddisk for operating systems requires a driver during installation. Please visit the Kontron download page for microETXexpress®-SP. Windows XP driver installation via USB floppy when installing from SATA to SATA does not work with this module. The driver must then be integrated into the installation CD before installation.

  • Page 40: Audio

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.3.4 Audio The US15W Intel® System Controller Hub supports Intel® High Definition Audio (HDA). The Intel® High Definition Audio supports up to four audio streams (up to 16 channels each), 32-bit sample depth, and sample rates to 192 KHz. This allows implementation of a hardware codec on your baseboard for 7.1/5.1 audio systems and SDIF ouput.

  • Page 41: Graphics Interface

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.3.6 Graphics Interface The microETXexpress®-SP uses the graphics accelerator GMA500 with 200MHz GPU clock integrated in the Intel® US15W System Controller Hub, which delivers shader-based technologies and high-performance 2D, 3D and video capabilities. The GMA500 graphics engine supports a variety of LCD panels with single clock, color depths of 18/24 bit and resolutions up to WXGA (1366x768).
  • Page 42 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector LVDS Flat Panel Interface (JILI) The user interface for flat panels is the JUMPtec Intelligent LVDS Interface (JILI). The implementation of this subsystem complies with the COM Express® Specification. Implementation information is provided in the COM Express®...

  • Page 43: Ethernet

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.3.7 Ethernet The Ethernet interface of the microETXexpress®-SP uses the latest Intel® 82574L Gigabit Ethernet controller that is connected to the PCIexpress Switch Port #1. The network controller supports a 10/100/1000 Base-T interface. The device auto-negotiates the use of 10 Mbit/sec, 100 Mbit/sec or 1Gbit/sec connections.

  • Page 44: Lpc Bus

    microETXexpress®-SP / microETXexpress®-SP COM Express® Connector 4.3.8 LPC Bus The Low Pin Count (LPC) Interface signals are connected to the LPC Bus bridge, which is located in the Intel® US15W system controller hub. The LPC low speed interface can be used for peripheral circuits such as an external Super I/O Controller, which typically combines legacy-device support into a single IC.
  • Page 45 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector Zero Delay Clock Buffer The use of a zero delay clock buffer leads to problems because it needs approximatley 60 clock cycles before the clock is present on the output. The Intel® USB15W System Controller Hub typically detects if a device is connected to the LPC clock, but it will not wait the 60 clock cycles to stay active.
  • Page 46 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector Overview of LPC Adresses Address (HEX) Device 0000 - 00FF IBM PC compatible devices (IRQ-Controller, Keyboard, RTC etc.) 002E-002F Optional: Super I/O W83627 004e - 004f 01F0 - 01F7 Fixed Disk 03C0 - 03CF VGA/EGA compatible registers 03F6 Fixed Disk...

  • Page 47: Power Control

    Power Supply The microETXexpress-SP has a wide range power input from 8.5 to 18V DC. The supply voltage is applied through 42pins (VCC) of the module connector. In ATX mode with 5V standby voltage the VCC input must be higher than the standby voltage.
  • Page 48 microETXexpress®-SP / microETXexpress®-SP COM Express® Connector ATX Mode / Single Supply Mode ATX Mode: By connecting an ATX power supply, PWR_OK is set to low level and VCC is off. Press the power button to enable the ATX PSU setting PWR_OK to high level and powering on VCC. The ATX PSU is controlled by the PS_ON# signal which is generated by SUS_S3# via inversion.

  • Page 49: Miscellaneous Circuits

    I2C Bus For additional information, refer to the COM Express® Design Guide, I2C application notes and JIDA specifications which are available at the Kontron Web site. See BIOS chapter for supported features and speed of I2C.

  • Page 50: Special Features

    Special Features S5 Eco Kontron‘s new high-efficient power-off state S5 Eco enables lowest power-consumption in soft-off state – less than 1 mA compared to the regular S5 state this means a reduction by at least factor 200! In the "normal" S5 mode the board is supplied by 5V_Stb and needs usually up to 300mA just to stay off. This mode allows to be switched on by power button, RTC event and WakeOnLan, even when it is not necessary.

  • Page 51: Speedstep Technology

    microETXexpress®-SP / Special Features Speedstep Technology The Intel® Atom Processor offers the Intel® Enhanced SpeedStep™ technology that automatically switches between maximum performance mode and battery-optimized mode, depending on the needs of the application being run. It let you customize high performance computing on your applications. When powered by a battery or running in idle mode, the processor drops to lower frequencies (by changing the CPU ratios) and voltage, conserving battery life while maintaining a high level of performance.

  • Page 52: Sd-Card Interface (Sdio)

    microETXexpress®-SP / Special Features SD-card Interface (SDIO) The SD card standard is a standard for removable memory storages designed and licensed by the SD Card Association (http://sdcard.org). The card form factor, electrical interface, and protocol are all part of the SD Card specification. The Intel®...
  • Page 53 / Special Features SD card compatibility Due to the mechanical variability with different SD card manufacturers, Kontron recommends that miniSD cards from the following vendor for use with the microETXexpress-SP: » Transcend » Apacer » Elecom » Hidata The use of miniSD cards from other manufacturers may cause difficulty when ejecting the cards from the on-module mini SD card socket.

  • Page 54: Watchdog

    microETXexpress®-SP / Special Features Watchdog This feature is implemented in the CPLD and offers a single staged watchdog. You can configure the Watchdog Timer (WDT) by JIDA32 Library API (Refer to Appendix: JIDA Standard) or BIOS Setup and directly via register settings. The application software should strobe the WDT to prevent its timeout.
  • Page 55 microETXexpress®-SP / Special Features JIDA32 for Windows: K-Station for Windows:...

  • Page 56: Flash Backup Feature

    microETXexpress®-SP / Special Features Flash Backup Feature The microETXexpress®-SP supports a new functionality called ―Flash Backup‖. This new feature allows saving custom defaults directly into the Flash. With invalid EEPROM data or without a CMOS EEPROM, the module will start up with these custom defaults.
  • Page 57 /p /b /n /c c:\>jidacmos.exe eep /clean Note1: kflash.exe is a shell tool included in Kontron K-Station System Utility Package. Note2: Contact your local sales or support for jidacmos utility. It is also included in the BIOS download package on...

  • Page 58: Fast I2C

    microETXexpress®-SP / Special Features Fast I2C The microETXexpress®-SP integrates two configurable I2C buses. The external I2C provided via US15W GPIOs on COM Express® Connector Pin B33/B34 and the JILI (LVDS) I2C from US15W SCH is available on COM Express® connector pin A83/A84.

  • Page 59: Acpi Suspend Modes And Resume Events

    microETXexpress®-SP / Special Features ACPI Suspend Modes and Resume Events The microETXexpress®-SP only supports the S3 state (=Save to Ram). S4 (=Save to Disk) is not supported by the BIOS (S4_BIOS) but S4_OS is supported by the following operating systems: »...

  • Page 60: Design Consideration

    Design Consideration Thermal Management A heat-spreader plate assembly is available from Kontron Embedded Modules for the microETXexpress-SP. The heatspreader plate on top of this assembly is NOT a heat sink. It works as a COM Express™-standard thermal interface to use with a heat sink or other cooling device.

  • Page 61: Microetxexpress®-Sp Onboard Fan Connector

    ACPI compliant OS is necessary. 6.3.1 Location and Pin-out of fan connector The onboard fan connector (J5) can be found on the left side, on the bottom surface of microETXexpress-SP PCB and it is connected onboard according to the following schematic:...

  • Page 62: Bios Settings For Fan Control

    microETXexpress®-SP / Design Consideration Connector J5 has following specification: » Part number (Molex) J8: 53261-0390 » Mates with: 51021-0300 » Crimp terminals: 50079-8100 6.3.2 BIOS Settings for fan control Please refer to the Module Hardware Monitor Setup for fan control.

  • Page 63: Electrical Characteristics

    microETXexpress®-SP / Design Consideration 6.3.3 Electrical Characteristics » VCC in FANCON: VCC of board, limited to 12V max » Imax: 0.40 A Note: The VCC_in_FANCON output is not short-circuit proof. If necessary, the user has to ensure that the circuit is protected externally (i.e.

  • Page 64: System Ressources

    microETXexpress®-SP / System Ressources System Ressources Interrupt Request (IRQ) Lines 7.1.1 In 8259 PIC mode IRQ # Used For Available Comment Timer0 Keyboard Cascade External SIO - COM2 Yes (No) Note (1) External SIO - COM1 Yes (No) Note (1) for PCI Dynamic (BIOS default) External SIO...

  • Page 65: In Apic Mode

    microETXexpress®-SP / System Ressources 7.1.2 In APIC mode IRQ # Used For Available Comment Timer0 Keyboard Cascade External SIO - COM2 Yes (No) Note (1) External SIO - COM1 Yes (No) Note (1) for PCI Dynamic (BIOS default) External SIO Yes (No) Note (1) External SIO - LPT1...

  • Page 66: Memory Area

    microETXexpress®-SP / System Ressources Memory Area The first 640 kB of DRAM are used as main memory. Using DOS, you can address 1 MB of memory directly. Memory area above 1 MB (high memory, extended memory) is accessed under DOS via special drivers such as HIMEM.SYS and EMM386.EXE, which are part of the operating system.

  • Page 67: I/O Address Map

    microETXexpress®-SP / System Ressources I/O Address Map The I/O-port addresses of the microETXexpress®-SP are functionally identical to a standard PC/AT. All addresses not mentioned in this table should be available. We recommend that you do not use I/O addresses below 0100h with additional hardware for compatibility reasons, even if available.

  • Page 68: Peripheral Component Interconnect (Pci) Devices

    microETXexpress®-SP / System Ressources Peripheral Component Interconnect (PCI) Devices All devices follow the Peripheral Component Interconnect 2.3 (PCI 2.3) respectivily the PCI Express Base 1.0a specification. The BIOS and OS control memory and I/O resources. Please see the PCI 2.3 specification for details. PCI Device PCI IRQ Interface...

  • Page 69: System Management (Sm) Bus

    microETXexpress®-SP / System Ressources System Management (SM) Bus Address Device Comment JIDA Bus Nr. SMART_CHARGER Not to be used with any SM bus deivce except a charger SMART_SELECTOR Not to be used with any SM bus deivce except a selector SMART_BATTERY Not to be used with any SM bus deivce except a battery Winbond W83L786NG HWM...

  • Page 70: K-Station / Jida32 Resources

    microETXexpress®-SP / System Ressources 7.10 K-Station / JIDA32 resources Function I2C 0 Internal / JIDA I2C #1 I2C 1 SM-Bus I2C 2 Internal / JIDA I2C #2 (for slow devices) I2C 3 SDVO I2C I2C 4 JILI I2C Storage Device Function EEPROM 0 JIDA EEPROM Area1 with 32 Bytes (free to use)

  • Page 71: Bios Operation

    » Kontron® BIOS Version <EEP1RXXX> » © Copyright 2002-2008 Kontron Embedded Modules GmbH Setup Guide The AMIBIOS Setup Utility changes system behavior by modifying the BIOS configuration. The setup program uses a number of menus to make changes and turn features on or off.
  • Page 72 microETXexpress®-SP / BIOS Operation Menu Bar The menu bar at the top of the window lists different menus. Use the left/right arrow keys to make a selection. Legend Bar Use the keys listed in the legend bar on the bottom to make your selections or exit the current menu. The table below describes the legend keys and their alternates.

  • Page 73: Bios Setup

    microETXexpress®-SP / BIOS Operation BIOS Setup Note: Default settings are marked bold 8.3.1 Main Menu Feature Option Description System Time [hh:mm:ss] <Tab>, <Shift-Tab>, or <Enter> selects field System Date [mm-dd-yyyy] <Tab>, <Shift-Tab>, or <Enter> selects field 8.3.2 Module Info...
  • Page 74 microETXexpress®-SP / BIOS Operation Module Component Steppings Current LVDS Configuration...

  • Page 75: Advanced Menu

    microETXexpress®-SP / BIOS Operation 8.3.3 Advanced Menu...
  • Page 76 microETXexpress®-SP / BIOS Operation CPU Configuration Feature Option Description Max CPUID Value Limit Disabled Disabled for WindowsXP Enabled CPU TM Functionality Disabled Enables or disables both TM1 and TM2 simultaneously. Enabled CPU Performance Sets the CPU ratio for Z510 / Z530 CPU Middle Low: 600MHz / 800MHz...
  • Page 77 microETXexpress®-SP / BIOS Operation Legacy Devices Configuration Feature Option Description Serial Port1 Address Disabled Selects the serial Port 1 base address 3F8/IRQ4 3E8/IRQ4 2E8/IRQ3 Serial Port2 Address Disabled Selects the serial Port 2 base address 2F8/IRQ3 3E8/IRQ4 2E8/IRQ3 Serial Port2 Mode Normal Selects the mode for serial Port2 IrDA...
  • Page 78 / BIOS Operation Devices - Configuration - Video Configuration Feature Option Description Submenu Kontron JILI Display Solution Video Function Configuration Primary Graphics Adapter Onboard Selects which graphics controller is used as primary boot PCIe/Onboard device (boot sequence) Onboard Graphics Mode...
  • Page 79 microETXexpress®-SP / BIOS Operation Devices - Conficuration - Video Configuration - Video Function Configuration Feature Option Description Boot Display Device Auto Select the Boot Display Device. SDVO LVDS Submenu Internal LVDS Configuration...
  • Page 80 microETXexpress®-SP / BIOS Operation Devices - Conficuration - Video Configuration - Video Function Configuration - Internal LVDS Configuration Feature Option Description Flat Panel Mode Auto Select the Flat Panel Mode Auto: Load settings from Configuration EEPROM and if not Fixed Mode present use settings from ‗Auto Fallback‘...
  • Page 81 microETXexpress®-SP / BIOS Operation PWM Frequency 200 HZ Selects the value of the regarding PWM base frequency. 400 Hz 1 kHz 2 kHz 4 kHz 8 kHz 20 kHz 32 kHz...
  • Page 82 microETXexpress®-SP / BIOS Operation Devices Conficuration - Audio Configuration Feature Option Description Audio Controller Codec Enabled Enable or Disable HDAudio to external Codec Disabled...
  • Page 83 microETXexpress®-SP / BIOS Operation Devices Conficuration - Onboard LAN Feature Option Description Onboard Gigabit Ethernet Enable Allows to enable or disable the onboard Gigabit Ethernet Controller Disable Enable PXE ROM Enable Allows to enable or disable PXE ROM which is needed to boot Disable from LAN...
  • Page 84 microETXexpress®-SP / BIOS Operation Devices Conficuration - USB Configuration Feature Option Description USB Functions Disabled Number of USB ports in the system including the two EHCI 2 Ports ONLY ports. 4 Ports 6 Ports 8 Ports USB EHCI Controller Enabled Controls EHCI (USB 2.0) functionality for all the UHCI ports set to active state Disabled...
  • Page 85 microETXexpress®-SP / BIOS Operation USB Mass Storage Device Configuration Feature Option Description USB Mass Storage Reset Delay 10 Sec Number of seconds POST waits for the USB mass storage 20 Sec device after start unit command. 30 Sec 40 Sec Emulation Type Auto Controls EHCI (USB 2.0) functionality for all the UHCI ports...
  • Page 86 microETXexpress®-SP / BIOS Operation Devices Conficuration - IDE Configuration Feature Option Description ATA/IDE Configuration Disabled Enables or disables the IDE interface of US15W SCH. Enabled Submenu While entering setup, BIOS auto detects the presence of IDE Primary IDE Master devices. This displays the status of autodetection of IDE Devices Submenu While entering setup, BIOS auto detects the presence of IDE...
  • Page 87 microETXexpress®-SP / BIOS Operation Devices Conficuration - IDE Configuration - IDE Master/Slave Submenu Feature Option Description Type Not Installed Selects the type of the IDE Devices connected to the system Auto CD/DVD ARMD LBA/Large Mode Disabled Disables the LBA mode or enables it, when a device supports Auto Block (Multi-Sector Transfer) Disabled...
  • Page 88 microETXexpress®-SP / BIOS Operation Devices Conficuration - On-Module SDIO Configuration Feature Option Description Enable SDIO Host Controller Disable Disable/Enable SDIO host controllers. Numbers refer to the three possible HC‘s (named 0, 1 and 2) HC0+1 SDIO Controller GPIO SDIO Slot 1 lines may be routed as secondary SDIO channel or as generic I/O.
  • Page 89 microETXexpress®-SP / BIOS Operation Devices Conficuration - SATA Configuration Feature Option Description SATA device active Enabled This setting allows to switch the SATA device on or off or disable its boot capability while using it later as a data disk Disabled SATA device mode Generic mode...
  • Page 90 microETXexpress®-SP / BIOS Operation Devices Conficuration - PCI Express Configuration Feature Option Description PCIe Port 0 Auto Enables or disables PCIe Port 0 Enabled Note: This Port is used for onboard PCIe Switch Disabled PCIe Port 1 Auto Enables or disables PCIe Port 1 Enabled Disabled PCIE Base Spec Compliance...
  • Page 91 microETXexpress®-SP / BIOS Operation ACPI Configuration Feature Option Description Submenu General ACPI Configuration Submenu Advanced ACPI Configuration ACPI Cooling Options Submenu...
  • Page 92 microETXexpress®-SP / BIOS Operation ACPI Configuration - General ACPI Configuration Feature Option Description Repost Video on S3 Resume Determines whether to invoke VGA BIOS post on S3/STR resume...
  • Page 93 microETXexpress®-SP / BIOS Operation ACPI Configuration - Advanced ACPI Configuration Feature Option Description ACPI Version ACPI 1.0 Selects the desired ACPI specification (OS depending) ACPI 2.0 ACPI 3.0 ACPI APIC Support Disabled Include ACPI APIC table pointer to RSDT pointer list. APIC Enabled supports more IRQs and faster interrupt handling AMI OEMB Table...
  • Page 94 microETXexpress®-SP / BIOS Operation ACPI Configuration - ACPI Cooling Options Feature Option Description Passice Trip Point Disabled This value controls the temperature of the ACPI Passive Trip 40°C Point - the point in which the OS will begin throttling the 45°C CPU.
  • Page 95 microETXexpress®-SP / BIOS Operation 100°C 105°C 110°C Critical Trip Point 40°C This value controls the temperature of the ACPI Critical Trip 45°C Point - the point in which the OS will shut the system off. 50°C 55°C 60°C 65°C 70°C 75°C 80°C 85°C...
  • Page 96 microETXexpress®-SP / BIOS Operation Module Hardware Health Configuration Feature Option Description Module H/W Health Function Enabled Enables Hardware Health Monitoring Device on module Disabled CPU FAN Ticks Per Revolution Set ‗Ticks per rev‘ according to number of impulses sent by this type of fan during one full revolution CPU Fan Divisor Adjust Fan Divisor to allow for best display when the...
  • Page 97 microETXexpress®-SP / BIOS Operation Min = 0, Max = 15 (Baseboard) Hardware Health Configuration Menu Feature Option Description H/W Health Function Enabled Enables Hardware Health Monitoring Device on baseboard. Disabled...
  • Page 98 microETXexpress®-SP / BIOS Operation Miscellaneous Feature Option Description Submenu Watchdog Submenu MARS Interface Configuration Spread Spectrum Disabled Enables or Disables spread spectrum for the selected Clocks. LVDS: Enables LVDS Spread Spectrum LVDS Core: Enables CPU, PCIe, Chipset Spread Spectrum Core Both A20 line controlled by Auto Detection...
  • Page 99 microETXexpress®-SP / BIOS Operation Miscellaneous - Watchdog Feature Option Description Watchdog Mode Disabled Enables / disables Watchdog Reset Delay Disabled Set the delay before the Watchdog gets active 1:00m 5:00m 10:00m 30:00m Timeout 0.4s Set the timout for Watchdog Reset mode 1:00m 5:00m 10:00m...
  • Page 100 microETXexpress®-SP / BIOS Operation Miscellaneous - MARS Interface Configuration Feature Option Description MARS Disabled MARS (Mobile Application platform for Rechargeable Systems) configuration Auto SMB Charger SMB Manager Submenu Shows Battery Information if SMB Manager is present Battery 1 Submenu Shows Battery Information if SMB Manager is present Battery 2...
  • Page 101 microETXexpress®-SP / BIOS Operation Miscellaneous - MARS Interface Configuration - MARS Battery 1/2 Information...
  • Page 102 microETXexpress®-SP / BIOS Operation I2C Buses Feature Option Description JIDA I2C Bus Speed Very high Select speed for JIDA/external I2C bus. See table below speed settings. High Medium Slow Very slow Ultra slow Multi Master sup. Enabled Enables / disables I2C Multi Master Support Disabled Clock Streching Sup.
  • Page 103 microETXexpress®-SP / BIOS Operation Disabled...
  • Page 104 microETXexpress®-SP / BIOS Operation SMBIOS Configuration Feature Option Description Smbios Smi Support Enabled SMBIOS SMI Wrapper support for PnP Func 50h-54h Disabled...

  • Page 105: Pci/Pnp Settings

    microETXexpress®-SP / BIOS Operation 8.3.4 PCI/PnP Settings Feature Option Description Clear NVRAM Clear NVRAM (None Volatile RAM) during system boot Plug & Play O/S No: letzs the BIOS configure all the devices in the system Yes: lets the OS configure PnP devices not required for boot if your system has a Plug and Play OS PCI Latency Timer Set this value to allow the Master Latency Timer to be...

  • Page 106: Boot Settings

    microETXexpress®-SP / BIOS Operation 8.3.5 Boot Settings Feature Option Description Boot Settings Configuration Submenu Defines some special boot settings 1st Boot Device Submenu Specifies the 1st boot device 2nd Boot Device Submenu Specifies the 2nd boot device 3rd Boot Device Submenu Specifies the 3rd boot device...
  • Page 107 microETXexpress®-SP / BIOS Operation Boot Settings Configuration Feature Option Description Quick Boot Disabled Allows BIOS to skip certain tests while booting. This will Enabled decrease the time needed to boot the system Quiet Boot Disabled If disabled the BIOS generates the normal messages, otherwise an OEM logo can be displayed Enabled AddOn ROM Display Mode...

  • Page 108: Security Settings

    microETXexpress®-SP / BIOS Operation 8.3.6 Security Settings Feature Option Description Change Supervisor Password Select this option and press Enter to change the supervisor password Change User Password Select this option and press Enter to change the user password Boot Sector Virus Protection Disabled If a program or a virus accesses the boot sector a warning appears if the option is enabled...
  • Page 109 microETXexpress®-SP / BIOS Operation Trusted Computing Feature Option Description TCG/TPM SUPPORT Enable/Disable TPM/TCG support in BIOS Don’t change Execute TPM Command Allows to change the TPM‘s state to enabled as well as disabled. Don‘t change keeps the state as it is Disabled Enabled...

  • Page 110: Exit Options

    microETXexpress®-SP / BIOS Operation 8.3.7 Exit Options Feature Description Save To RTC/EEPROM and Exit Saving system setup to RTC and EEPROM and exit setup. F10 key can be used for this operation Save As Custom Defaults To Saving system setup as custom defaults to RTC and Flash and exit setup. F11 key can be RTC/Flash and Exit used for this operation Discard Changes and Exit...
