Kontron MUNGO560 Quick Reference

MUNGO560 MUNGO560
PN 932-0039-00-B
Introduction
This Quick Reference Card provides jumper and connector locations (next page)
to help you get your system running quickly. For complete connector
pinout information, please download the MUNGO560 manual from the Kontron Web site.
1. Carefully remove your SBC from the packaging and set it on an ESD-protected work area.
2. After installing the processor and memory, install the board into a chassis.
3. Connect the Power (J37) and HDD (J7) LEDs, t he Power On (J14) and Reset (J13) switches,
and Speaker (J21) to the system interface connectors. (See the Connector Diagram on the next page.)
4. Connect all other devices such as the IDE, USB and Ethernet. (See the Connector Diagram on the next page.)
5. Connect power from the power supply to the power input connector (J37).
NOTE: Standard power supply conversion cables are available. Please let us know your needs.
Jumpers
JUMPER SETTINGS JUMPER SETTINGS
(* = Default Setting) (* = Default Setting)
LCD Power Selection (J1)
*
1,2 <+5V for LCD Power>
2,3 <+3V for LCD Power>
RTC CMOS Clear (J4)
1-2 Normal Operation *
2-3 Clear CMOS Contents

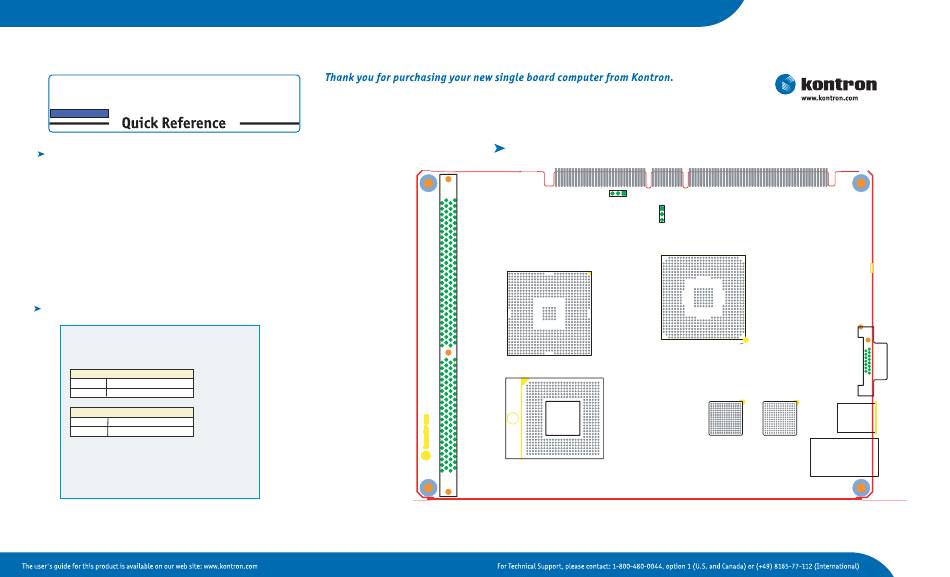

MUNGO560 Jumper Locations
J1 1
1
J4
South Bridge
North Bridge
CPU
