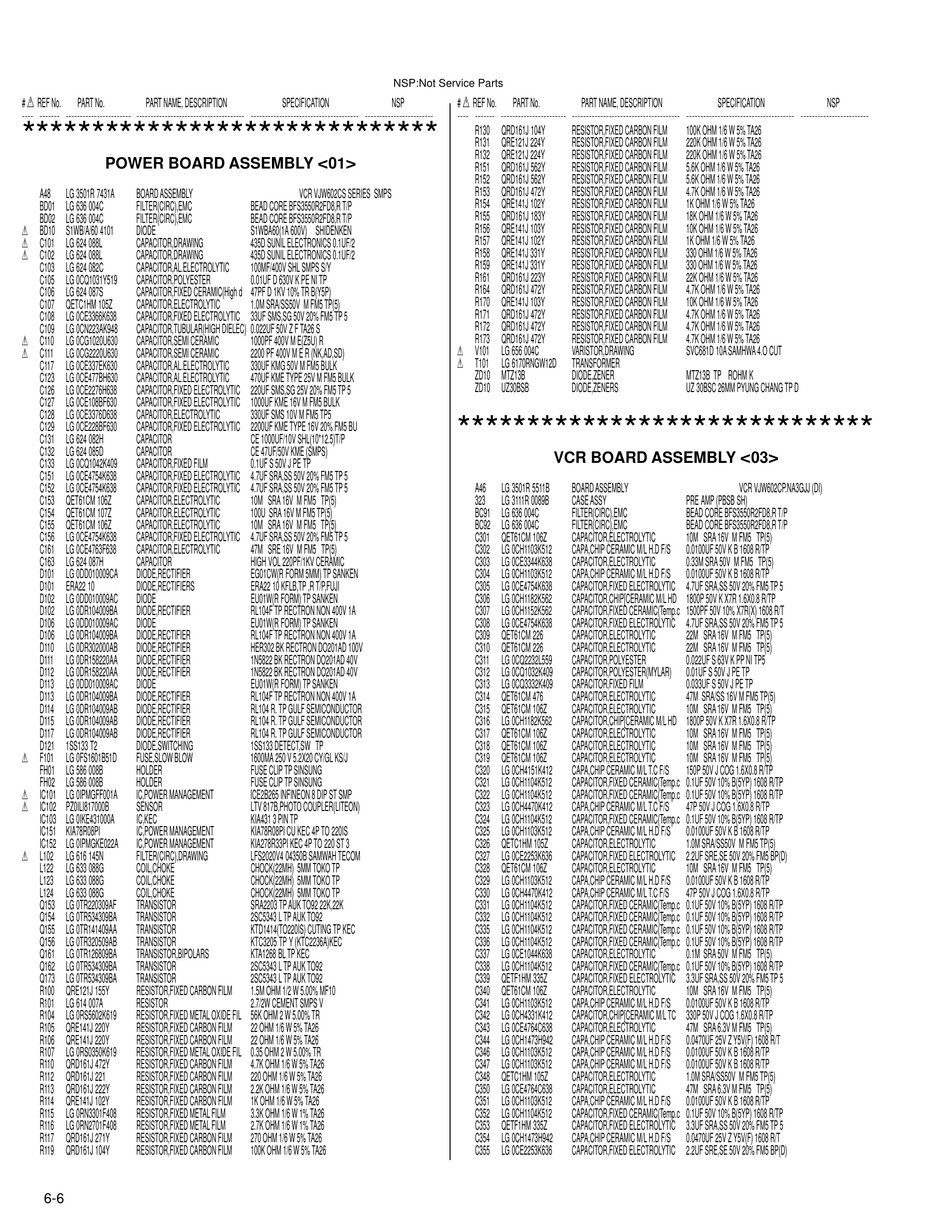

JVC HR-XV2EX Service Manual page 77

# REF No. PART No. PART NAME, DESCRIPTION
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
******************************
POWER BOARD ASSEMBLY
A48 LG 3501R 7431A BOARD ASSEMBLY
BD01 LG 636 004C FILTER(CIRC),EMC
BD02 LG 636 004C FILTER(CIRC),EMC
! BD10 S1WB/A/60 4101
DIODE
! C101 LG 624 088L
CAPACITOR,DRAWING
! C102 LG 624 088L
CAPACITOR,DRAWING
C103 LG 624 082C CAPACITOR,AL.ELECTROLYTIC
C105 LG 0CQ1031Y519 CAPACITOR,POLYESTER
C106 LG 624 087S CAPACITOR,FIXED CERAMIC(High d 47PF D 1KV 10% TR B(Y5P)
C107 QETC1HM 105Z CAPACITOR,ELECTROLYTIC
C108 LG 0CE3366K638 CAPACITOR,FIXED ELECTROLYTIC 33UF SMS,SG 50V 20% FM5 TP 5
C109 LG 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
! C110 LG 0CG1020U630
CAPACITOR,SEMI CERAMIC
! C111 LG 0CG2220U630
CAPACITOR,SEMI CERAMIC
C117 LG 0CE337EK630 CAPACITOR,AL.ELECTROLYTIC
C123 LG 0CE477BH630 CAPACITOR,AL.ELECTROLYTIC
C126 LG 0CE2276H638 CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 25V 20% FM5 TP 5
C127 LG 0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C128 LG 0CE3376D638 CAPACITOR,ELECTROLYTIC
C129 LG 0CE228BF630 CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C131 LG 624 082H CAPACITOR
C132 LG 624 085D CAPACITOR
C133 LG 0CQ1042K409 CAPACITOR,FIXED FILM
C151 LG 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C152 LG 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C153 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C154 QET61CM 107Z CAPACITOR,ELECTROLYTIC
C155 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C156 LG 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C161 LG 0CE4763F638 CAPACITOR,ELECTROLYTIC
C163 LG 624 087H CAPACITOR
D101 LG 0DD010009CA DIODE,RECTIFIER
D101 ERA22 10 DIODE,RECTIFIERS
D102 LG 0DD010009AC DIODE
D102 LG 0DR104009BA DIODE,RECTIFIER
D106 LG 0DD010009AC DIODE
D106 LG 0DR104009BA DIODE,RECTIFIER
D110 LG 0DR302000AB DIODE,RECTIFIER
D111 LG 0DR158220AA DIODE,RECTIFIER
D112 LG 0DR158220AA DIODE,RECTIFIER
D113 LG 0DD010009AC DIODE
D113 LG 0DR104009BA DIODE,RECTIFIER
D114 LG 0DR104009AB DIODE,RECTIFIER
D115 LG 0DR104009AB DIODE,RECTIFIER
D117 LG 0DR104009AB DIODE,RECTIFIER
D121 1SS133 T2 DIODE,SWITCHING
! F101 LG 0FS1601B51D
FUSE,SLOW BLOW
FH01 LG 586 008B HOLDER
FH02 LG 586 008B HOLDER
! IC101 LG 0IPMGFF001A
IC,POWER MANAGEMENT
! IC102 PZ0ILI817000B
SENSOR
IC103 LG 0IKE431000A IC,KEC
IC151 KIA78R08PI IC,POWER MANAGEMENT
IC152 LG 0IPMGKE022A IC,POWER MANAGEMENT
! L102 LG 616 145N
FILTER(CIRC),DRAWING
L122 LG 633 088G COIL,CHOKE
L123 LG 633 088G COIL,CHOKE
L124 LG 633 088G COIL,CHOKE
Q153 LG 0TR220309AF TRANSISTOR
Q154 LG 0TR534309BA TRANSISTOR
Q155 LG 0TR141409AA TRANSISTOR
Q156 LG 0TR320509AB TRANSISTOR
Q161 LG 0TR126809BA TRANSISTOR,BIPOLARS
Q162 LG 0TR534309BA TRANSISTOR
Q173 LG 0TR534309BA TRANSISTOR
R100 QRE121J 155Y RESISTOR,FIXED CARBON FILM
R101 LG 614 007A RESISTOR
R104 LG 0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 QRE141J 220Y RESISTOR,FIXED CARBON FILM
R106 QRE141J 220Y RESISTOR,FIXED CARBON FILM
R107 LG 0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR
R110 QRD161J 472Y RESISTOR,FIXED CARBON FILM
R112 QRD161J 221 RESISTOR,FIXED CARBON FILM
R113 QRD161J 222Y RESISTOR,FIXED CARBON FILM
R114 QRE141J 102Y RESISTOR,FIXED CARBON FILM
R115 LG 0RN3301F408 RESISTOR,FIXED METAL FILM
R116 LG 0RN2701F408 RESISTOR,FIXED METAL FILM
R117 QRD161J 271Y RESISTOR,FIXED CARBON FILM
R119 QRD161J 104Y RESISTOR,FIXED CARBON FILM
6-6
NSP:Not Service Parts
SPECIFICATION NSP
< >
01
VCR VJW602CS SERIES SMPS
BEAD CORE BFS3550R2FD8,R T/P
BEAD CORE BFS3550R2FD8,R T/P
S1WBA60(1A 600V) SHIDENKEN
435D SUNIL ELECTRONICS 0.1UF/2
435D SUNIL ELECTRONICS 0.1UF/2
100MF/400V SHL SMPS S/Y
0.01UF D 630V K PE NI TP
1.0M SRA/SS50V M FM5 TP(5)
1000PF 400V M E(Z5U) R
2200 PF 400V M E R (NK,AD,SD)
330UF KMG 50V M FM5 BULK
470UF KME TYPE 25V M FM5 BULK
330UF SMS 10V M FM5 TP5
CE 1000UF/10V SHL(10*12.5)T/P
CE 47UF/50V KME (SMPS)
0.1UF S 50V J PE TP
10M SRA 16V M FM5 TP(5)
100U SRA 16V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
47M SRE 16V M FM5 TP(5)
HIGH VOL 220PF/1KV CERAMIC
EG01CW(R FORM 5MM) TP SANKEN
ERA22 10 KFLB,TP ,R T/P,FUJI
EU01W(R FORM) TP SANKEN
RL104F TP RECTRON NON 400V 1A
EU01W(R FORM) TP SANKEN
RL104F TP RECTRON NON 400V 1A
HER302 BK RECTRON DO201AD 100V
1N5822 BK RECTRON DO201AD 40V
1N5822 BK RECTRON DO201AD 40V
EU01W(R FORM) TP SANKEN
RL104F TP RECTRON NON 400V 1A
RL104 R. TP GULF SEMICONDUCTOR
RL104 R. TP GULF SEMICONDUCTOR
RL104 R. TP GULF SEMICONDUCTOR
1SS133 DETECT,SW TP
1600MA 250 V 5.2X20 CY/GL KS/J
FUSE CLIP TP SINSUNG
FUSE CLIP TP SINSUNG
ICE2B265 INFINEON 8 DIP ST SMP
LTV 817B,PHOTO COUPLER(LITEON)
KIA431 3 PIN TP
KIA78R08PI CU KEC 4P TO 220IS
KIA278R33PI KEC 4P TO 220 ST 3
LFS2020V4 04350B SAMWAH TECOM
CHOCK(22MH) 5MM TOKO TP
CHOCK(22MH) 5MM TOKO TP
CHOCK(22MH) 5MM TOKO TP
SRA2203 TP AUK TO92 22K,22K
2SC5343 L TP AUK TO92
KTD1414(TO220IS) CUTING TP KEC
KTC3205 TP Y (KTC2236A)KEC
KTA1268 BL TP KEC
2SC5343 L TP AUK TO92
2SC5343 L TP AUK TO92
1.5M OHM 1/2 W 5.00% MF10
2.7/2W CEMENT SMPS V
22 OHM 1/6 W 5% TA26
22 OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
220 OHM 1/6 W 5% TA26
2.2K OHM 1/6 W 5% TA26
1K OHM 1/6 W 5% TA26
3.3K OHM 1/6 W 1% TA26
2.7K OHM 1/6 W 1% TA26
270 OHM 1/6 W 5% TA26
100K OHM 1/6 W 5% TA26
# REF No. PART No. PART NAME, DESCRIPTION
---- ------- ----------------------- -------------------------------------- -------------------------------------- ------------------------
R130 QRD161J 104Y RESISTOR,FIXED CARBON FILM
R131 QRE121J 224Y RESISTOR,FIXED CARBON FILM
R132 QRE121J 224Y RESISTOR,FIXED CARBON FILM
R151 QRD161J 562Y RESISTOR,FIXED CARBON FILM
R152 QRD161J 562Y RESISTOR,FIXED CARBON FILM
R153 QRD161J 472Y RESISTOR,FIXED CARBON FILM
R154 QRE141J 102Y RESISTOR,FIXED CARBON FILM
R155 QRD161J 183Y RESISTOR,FIXED CARBON FILM
R156 QRE141J 103Y RESISTOR,FIXED CARBON FILM
R157 QRE141J 102Y RESISTOR,FIXED CARBON FILM
R158 QRE141J 331Y RESISTOR,FIXED CARBON FILM
R159 QRE141J 331Y RESISTOR,FIXED CARBON FILM
R161 QRD161J 223Y RESISTOR,FIXED CARBON FILM
R164 QRD161J 472Y RESISTOR,FIXED CARBON FILM
R170 QRE141J 103Y RESISTOR,FIXED CARBON FILM
R171 QRD161J 472Y RESISTOR,FIXED CARBON FILM
R172 QRD161J 472Y RESISTOR,FIXED CARBON FILM
R173 QRD161J 472Y RESISTOR,FIXED CARBON FILM
! V101 LG 656 004C
VARISTOR,DRAWING
! T101 LG 6170RNGW12D
TRANSFORMER
ZD10 MTZ13B DIODE,ZENER
ZD10 UZ30BSB DIODE,ZENERS
******************************
VCR BOARD ASSEMBLY
A46 LG 3501R 5511B BOARD ASSEMBLY
323 LG 3111R 0089B CASE ASSY
BC91 LG 636 004C FILTER(CIRC),EMC
BC92 LG 636 004C FILTER(CIRC),EMC
C301 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C302 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C303 LG 0CE3344K638 CAPACITOR,ELECTROLYTIC
C304 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C305 LG 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C306 LG 0CH1182K562 CAPACITOR,CHIP[CERAMIC M/L HD 1800P 50V K X7R 1.6X0.8 R/TP
C307 LG 0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C308 LG 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C309 QET61CM 226 CAPACITOR,ELECTROLYTIC
C310 QET61CM 226 CAPACITOR,ELECTROLYTIC
C311 LG 0CQ2232L559 CAPACITOR,POLYESTER
C312 LG 0CQ1032K409 CAPACITOR,POLYESTER(MYLAR)
C313 LG 0CQ3332K409 CAPACITOR,FIXED FILM
C314 QET61CM 476 CAPACITOR,ELECTROLYTIC
C315 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C316 LG 0CH1182K562 CAPACITOR,CHIP[CERAMIC M/L HD 1800P 50V K X7R 1.6X0.8 R/TP
C317 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C318 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C319 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C320 LG 0CH4151K412 CAPA,CHIP CERAMIC M/L T.C F/S
C321 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C322 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C323 LG 0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S
C324 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C325 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C326 QETC1HM 105Z CAPACITOR,ELECTROLYTIC
C327 LG 0CE2253K636 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRE,SE 50V 20% FM5 BP(D)
C328 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C329 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C330 LG 0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S
C331 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C332 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C335 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C336 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C337 LG 0CE1044K638 CAPACITOR,ELECTROLYTIC
C338 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C339 QETF1HM 335Z CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C340 QET61CM 106Z CAPACITOR,ELECTROLYTIC
C341 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C342 LG 0CH4331K412 CAPACITOR,CHIP[CERAMIC M/L TC 330P 50V J COG 1.6X0.8 R/TP
C343 LG 0CE4764C638 CAPACITOR,ELECTROLYTIC
C344 LG 0CH1473H942 CAPA,CHIP CERAMIC M/L H.D F/S
C346 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C347 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C348 QETC1HM 105Z CAPACITOR,ELECTROLYTIC
C350 LG 0CE4764C638 CAPACITOR,ELECTROLYTIC
C351 LG 0CH1103K512 CAPA,CHIP CERAMIC M/L H.D F/S
C352 LG 0CH1104K512 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 50V 10% B(5YP) 1608 R/TP
C353 QETF1HM 335Z CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C354 LG 0CH1473H942 CAPA,CHIP CERAMIC M/L H.D F/S
C355 LG 0CE2253K636 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRE,SE 50V 20% FM5 BP(D)
SPECIFICATION NSP
100K OHM 1/6 W 5% TA26
220K OHM 1/6 W 5% TA26
220K OHM 1/6 W 5% TA26
5.6K OHM 1/6 W 5% TA26
5.6K OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
1K OHM 1/6 W 5% TA26
18K OHM 1/6 W 5% TA26
10K OHM 1/6 W 5% TA26
1K OHM 1/6 W 5% TA26
330 OHM 1/6 W 5% TA26
330 OHM 1/6 W 5% TA26
22K OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
10K OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
4.7K OHM 1/6 W 5% TA26
SVC681D 10A SAMHWA 4.O CUT
MTZ13B TP ROHM K
UZ 30BSC 26MM PYUNG CHANG TP D
< >
03
VCR VJW602CP.NA3GJJ (DI)
PRE AMP (PBSB SH)
BEAD CORE BFS3550R2FD8,R T/P
BEAD CORE BFS3550R2FD8,R T/P
10M SRA 16V M FM5 TP(5)
0.0100UF 50V K B 1608 R/TP
0.33M SRA 50V M FM5 TP(5)
0.0100UF 50V K B 1608 R/TP
22M SRA 16V M FM5 TP(5)
22M SRA 16V M FM5 TP(5)
0.022UF S 63V K PP NI TP5
0.01UF S 50V J PE TP
0.033UF S 50V J PE TP
47M SRA/SS 16V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
150P 50V J COG 1.6X0.8 R/TP
47P 50V J COG 1.6X0.8 R/TP
0.0100UF 50V K B 1608 R/TP
1.0M SRA/SS50V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
0.0100UF 50V K B 1608 R/TP
47P 50V J COG 1.6X0.8 R/TP
0.1M SRA 50V M FM5 TP(5)
10M SRA 16V M FM5 TP(5)
0.0100UF 50V K B 1608 R/TP
47M SRA 6.3V M FM5 TP(5)
0.0470UF 25V Z Y5V(F) 1608 R/T
0.0100UF 50V K B 1608 R/TP
0.0100UF 50V K B 1608 R/TP
1.0M SRA/SS50V M FM5 TP(5)
47M SRA 6.3V M FM5 TP(5)
0.0100UF 50V K B 1608 R/TP
0.0470UF 25V Z Y5V(F) 1608 R/T
