DECK MECHANISM DISASSEMBLY

Base Assembly P4

(Fig. A-5-1)
16. Base Assembly P4 (Fig. A-5-1)
1) Breakaway the (A) portion of the Base Assembly P4 from
the embossing of the Chassis.
2) Turn the Base Assembly P4 to counterclockwise direction
and lift it up.
17. Opener Lid (Fig. A-5-2)
1) Breakaway the (B) portion of the Opener Lid from the
embossing of the Chassis.
2) Turn the Opener Lid to clockwise direction and lift it up.
18. Arm Assembly Pinch (Fig. A-5-3)
1) Lift the Arm Assembly Pinch up.
(B)
(B)
Assembly
(Fig. A-5-3)
(A)

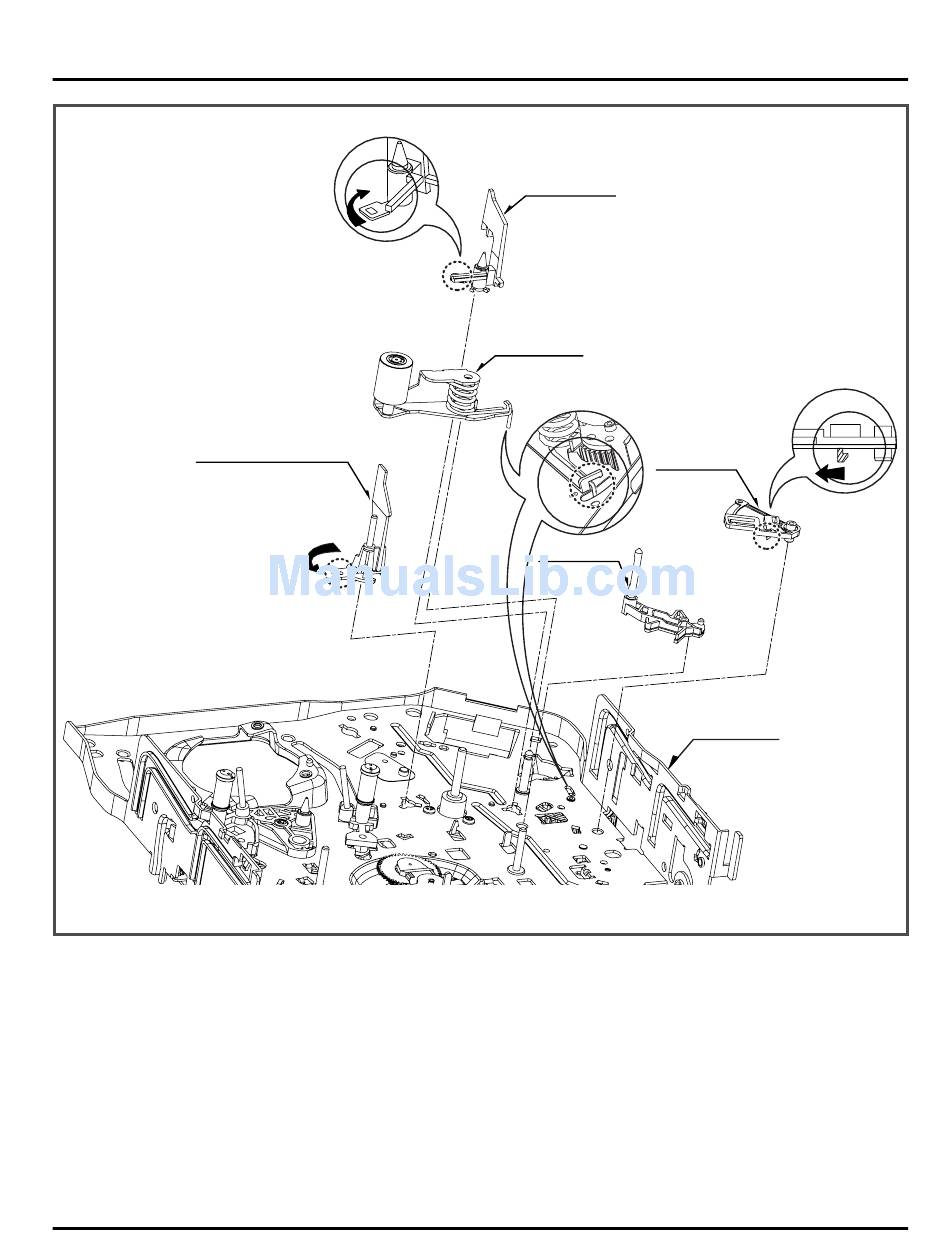

Fig. A-5
NOTE
When reassembling, confirm the (C) portion of the Arm
Assembly Pinch is inserted to the Chassis hole correctly as
Fig.
19. Lever T/up (Fig. A-5-4)/
1) Unhook the Hook(H13) of the bottom Chassis and lift the
2) Lift the Arm T/up up.
4-7

Opener Lid

(Fig. A-5-2)
Arm
Pinch
(C)
Lever T/up
(Fig. A-5-4)
(C)
Arm T/up
(Fig. A-5-5)
Arm T/up (Fig. A-5-5)
Lever T/up up.
(H13)
(H13)
Chassis
