JVC HR-XV2EX Service Manual page 108

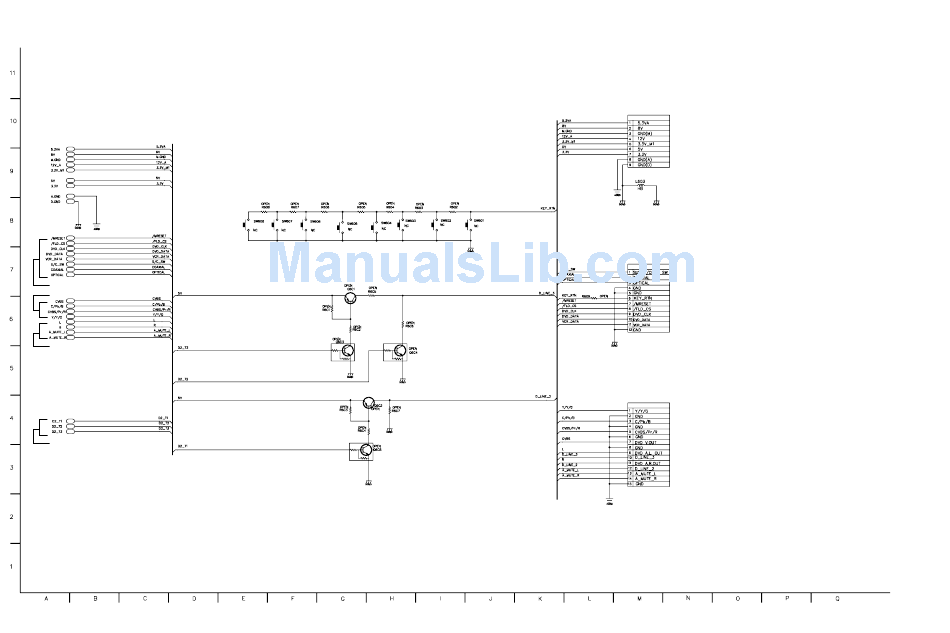

4. INTERFACE CIRCUIT DIAGRAM
TO/FROM MPEG
TO/FROM JACK
TO/FROM MPEG
TO/FROM MEMORY
3-70 3-71
(TO/FROM VCR POWER)
PDV01-PPD01
(TO/FROM VCR SYSTEM)
PDV02-PMD01
(TO/FROM VCR JACK)
PDV03-PMD02
'02. 12. 04 R17150A
COMBI NS
