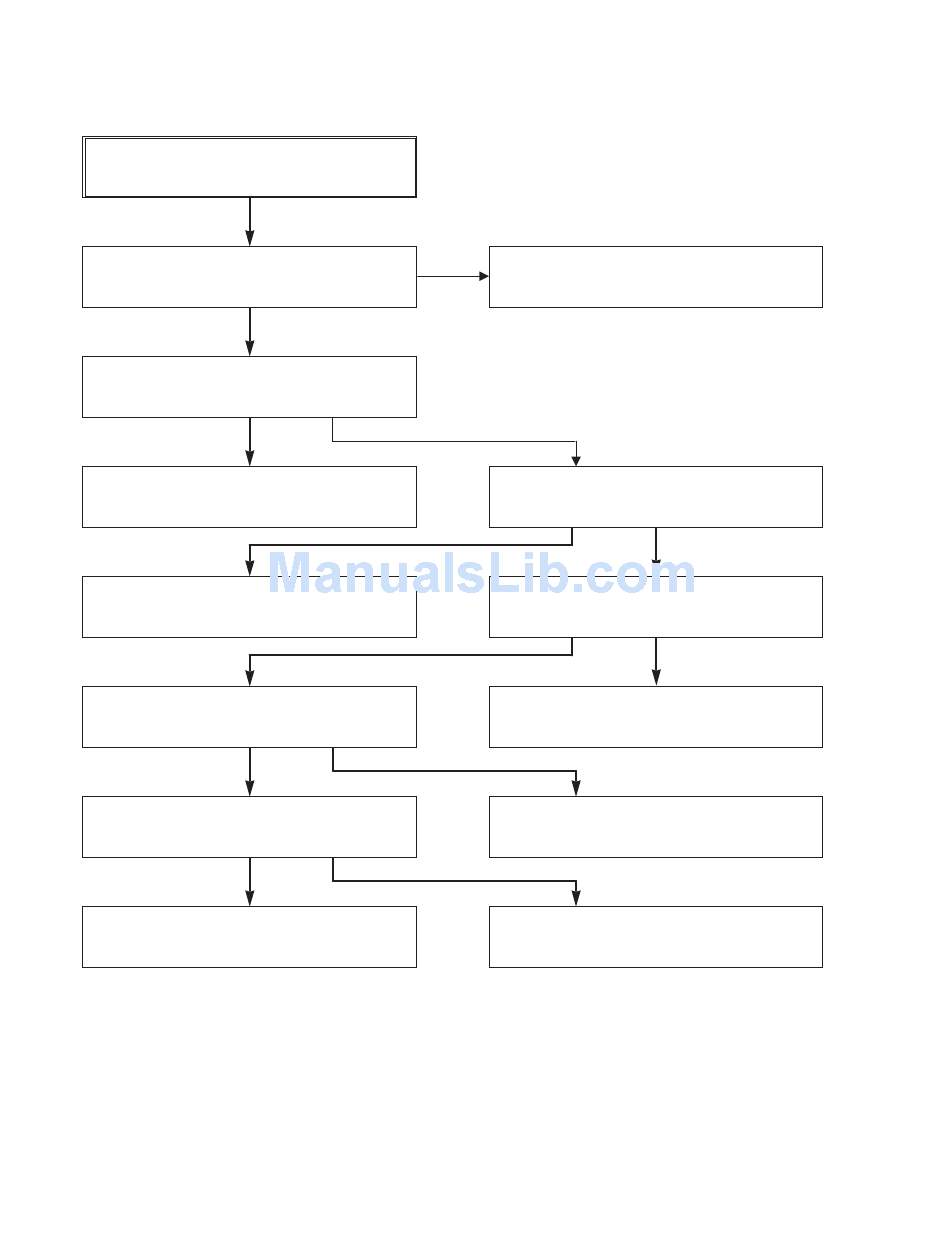

(3) When the Capstan Motor doesn't run,
When the Capstan Motor doesn't run,
Does 12VA appear at the PMC01?
Does 2.8V appear at the PMC01?
Check the PMC01 and the Capstan
Motor Ass'y.
Aren't the foil patterns and Components
between IC501 Pin108 and PMC01
Pin9 short?
Does the CFG signal come into the
IC501 Pin9?
Does the Capstan PWM signal appear at
the IC501 Pin108?
Aren't the foil patterns and Components
between IC501 Pin108 and PMC01
Pin9 short?
YES
NO
YES
YES
YES
NO
YES
NO
YES
NO
Refer to "SMPS(CAPSTAN/12Volt)
Trouble Shooting".
Does the PWM signal appear at the
IC501 Pin108?
Does the CFG signal appear at the
PMC01 Pin1?
Check the Capstan Motor Ass'y.
Aren't the foil patterns and component
between IC501 Pin9 and PMC01
Pin1 short?
Replace the IC501.
3-9
NO
NO
