DECK MECHANISM DISASSEMBLY
Gear Cam Hole(B)
Gear Drive Hole(C)
24. Gear Drive (Fig. A-7-1)/
Gear Cam (Fig. A-7-2)
1) Remove the Washer(W2) and lift the Gear Drive up.
2) Unhook the Hook(H14) of the Gear Cam and lift the Gear
Cam up.
NOTE
When reassembling, align the Gear Drive Hole(A) and the
Gear Cam Hole(B) in a straight line after the Gear Drive
Hole(C) is aligned with the Chassis Hole as Fig.
25. Gear Sector (Fig. A-7-3)
1) Unhook the Hook(H15) of the Base Loading on bottom
Chassis and lift the Gear Sector up.
(H14)
Gear Drive Hole(A)

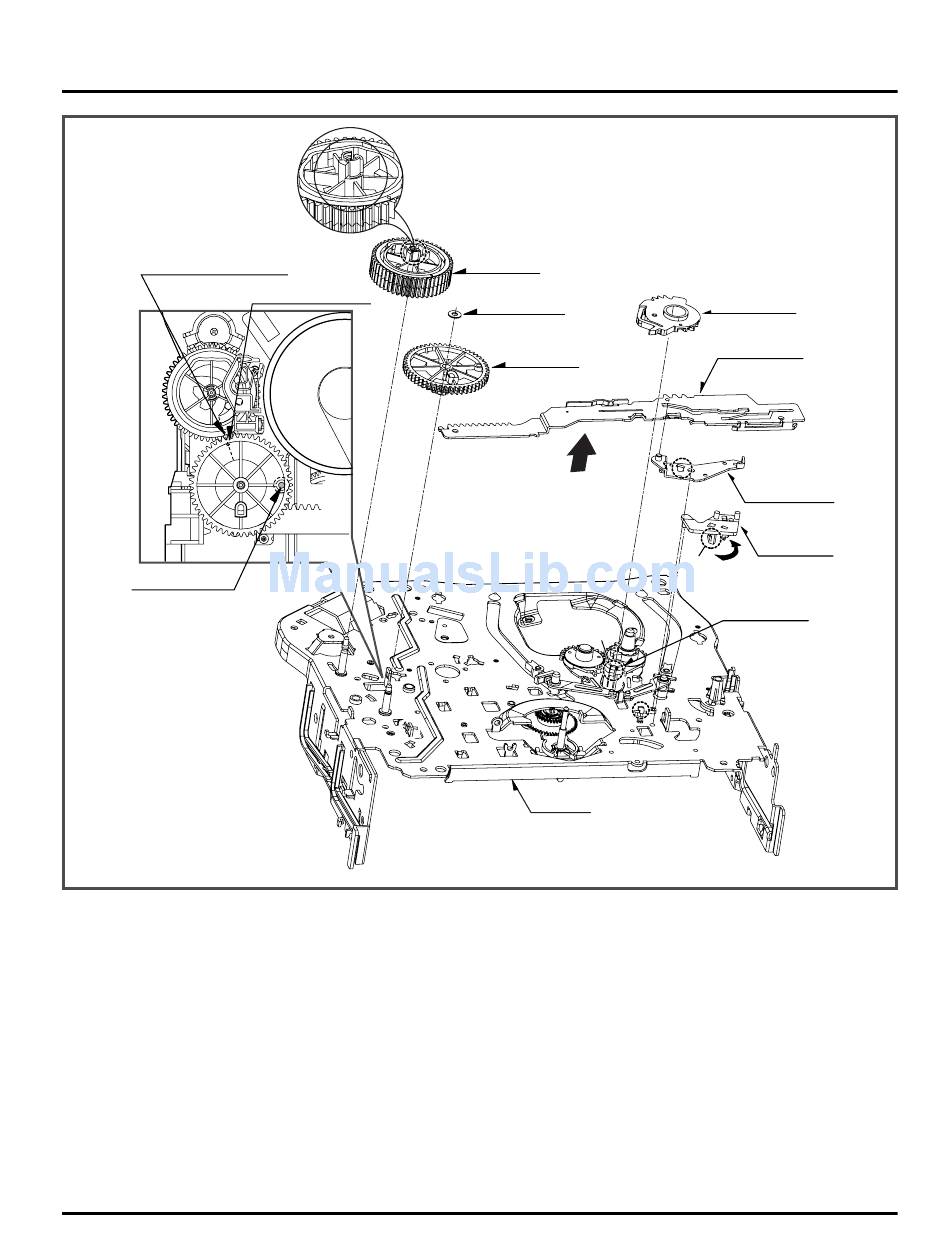

Fig. A-7
Gear Cam
(Fig. A-7-2)
Washer (W2)
Gear Drive
(Fig. A-7-1)
(H15)
(H16)
Chassis
26. Plate Slider (Fig. A-7-4)
1) Just lift the Plate Slider up.
27. Lever Tension (Fig. A-7-5)
1) Unhook the (A) portion of the Lever Tension from the
Hook(H16) of the Chassis.
2) Turn the Lever Tension to counterclockwise direction and
lift it up.
28. Lever Spring (Fig. A-7-6)
1) Unlock the Locking Tab(L3) of the bottom Chassis and lift
the Lever Spring up.
4-9

Gear Sector

(Fig. A-7-3)

Plate Slider

(Fig. A-7-4)
(A)

Lever Tension

(Fig. A-7-5)

Lever spring

(L3)
(Fig. A-7-6)
Base Loading
