SAFETY PRECAUTION
Parts identified by the
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and performance. We recom-
mend that genuine JVC parts be used.
6.1 EXPLODED VIEW

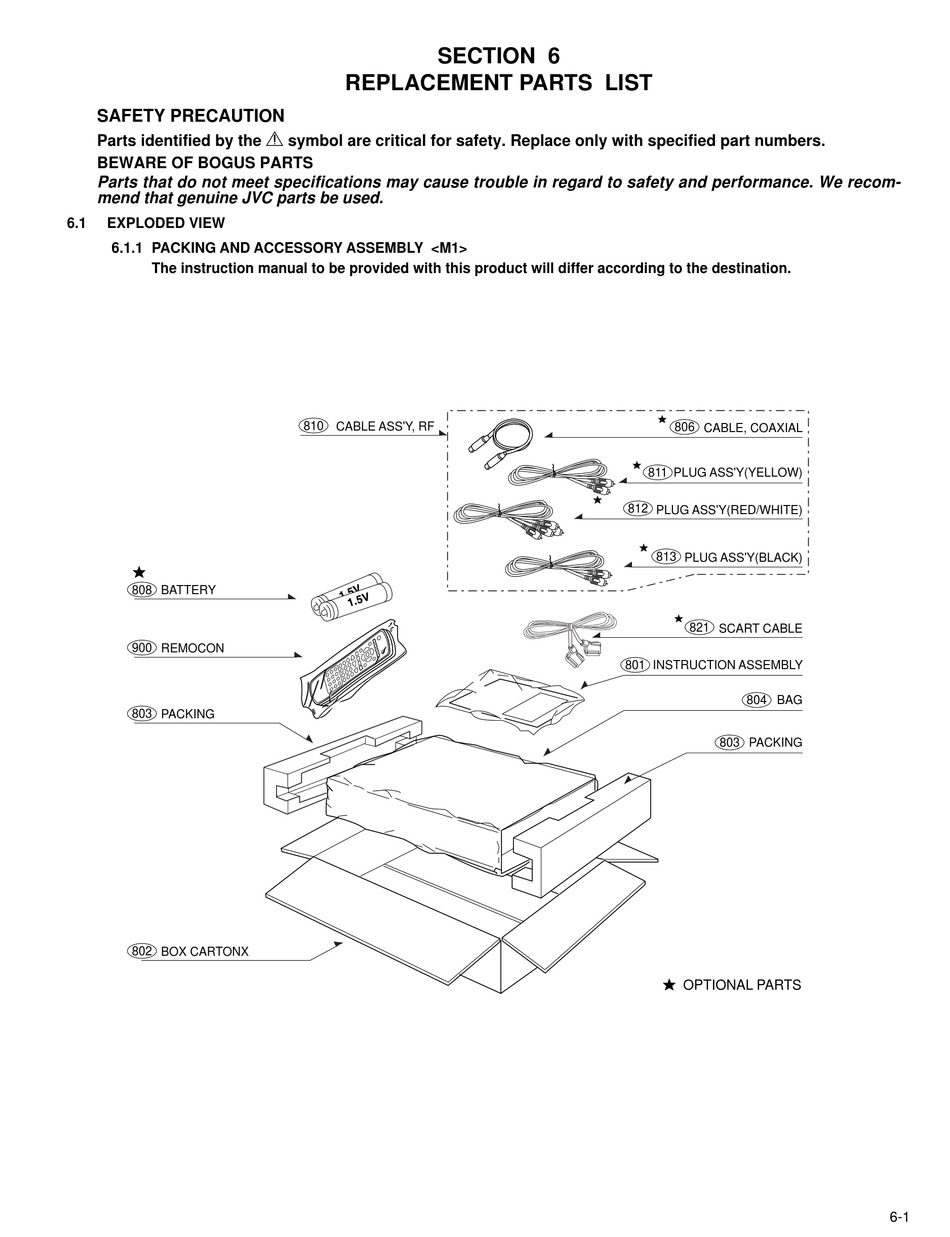

6.1.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
808 BATTERY
900
REMOCON
803 PACKING
802
BOX CARTONX
SECTION 6
REPLACEMENT PARTS LIST
!
symbol are critical for safety. Replace only with specified part numbers.
810 CABLE ASS'Y, RF
806 CABLE, COAXIAL
811 PLUG ASS'Y(YELLOW)
812
PLUG ASS'Y(RED/WHITE)
813 PLUG ASS'Y(BLACK)
821 SCART CABLE
801 INSTRUCTION ASSEMBLY
804 BAG
PACKING
803
OPTIONAL PARTS
6-1
