DECK MECHANISM DISASSEMBLY
GEAR ASSEMBLY RACK
RUBBER REAR
(GREEN)
PICK UP
ASSEMBLY
GENERAL
(C1)
MOTOR ASSEMBLY SPINDLE
3. Base Assembly Sled (Fig. 5-3)
1) Release 4 Screw(S2).
2) Disconnect the FFC Connector(C1)
3-1. Gear Assembly Feed
1) Unhook the Locking Tab(L2) in direction of arrow.
GEAR MIDDLE
(BLACK)
(S3)
(S2)
(S2)
(GREEN)
GEAR ASSEMBLY FEED
GEAR MIDDLE
GAER ASSEMBLY RACK
(S2)
PICK UP ASSEMBLY GENERAL
MOTOR ASSEMBLY SPINDLE

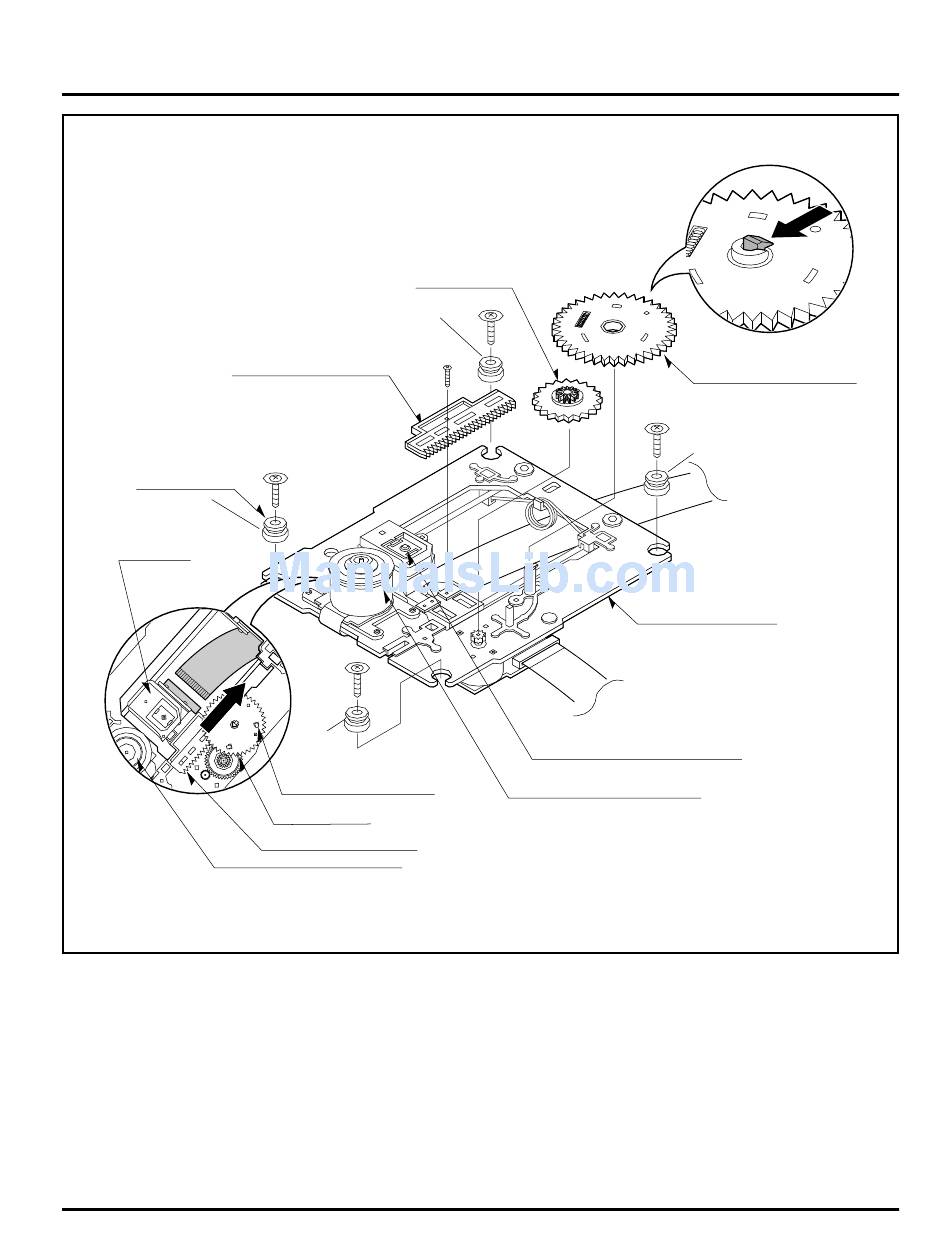

Fig. 5-3
3-2. Gear Middle
3-3. Gear Assembly Rack
1) Release the Scerw(S3)
4. Rubber Rear (Fig. 5-3)
5-3
(L2)
GEAR ASSEMBLY FEED
(S2)
(BLACK)
BASE PU(OUTSERT)
