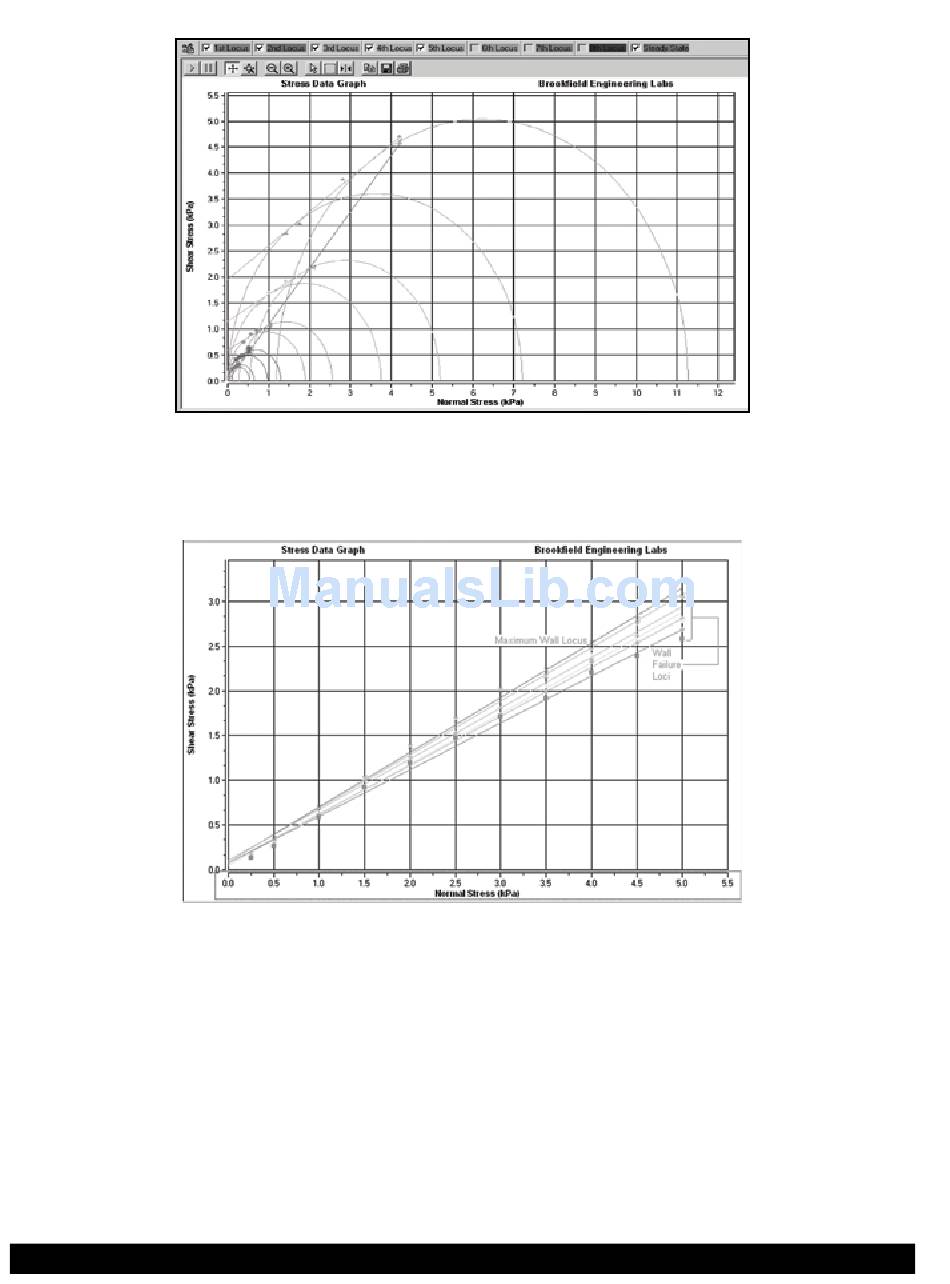

Figure IV-15: Stress Data Graph for Flow Function Test
Figure IV-16: Stress Data Graph for Wall Friction Test
c) Flow Curve:
• Flow Function Test shows the curve of Unconfined Failure Strengths versus Major
Principal Consolidation stress and reports the Flow Function gradient and intercept,
the critical Arching and Rat-hole stress, and the Flow Index for a given stress.
AMETEK Brookfield
Page 40
Manual No. M09-1200-F1016
