I.6 Back Panel

1. USB Type B port
Use with USB Cable P/N DVP-202 to connect instrument to a computer. Cable USB 2.0
A Male to B Male.
2. RS-232 Serial Port
Use with RS-232 Cable P/N DVP-80 to connect instrument to a computer.
3. Temperature Probe Plug
4-Pin plug. Use with Temperature Probe P/N DVP-94Y.
4. Humidity Sensor Plug
3-Pin plug. Use with P/N PFT-607Y.
5. Power entry module:
ON/OFF switch-fused (see Utilities section) Voltage 90-265 VAC.
6. Hand Hold locations for handling instrument. Recommend two people for movement
of instrument due to heavy weight.
7. Label with the instructions for shipment of unit by freight carrier.
AMETEK Brookfield

k
POWER
n


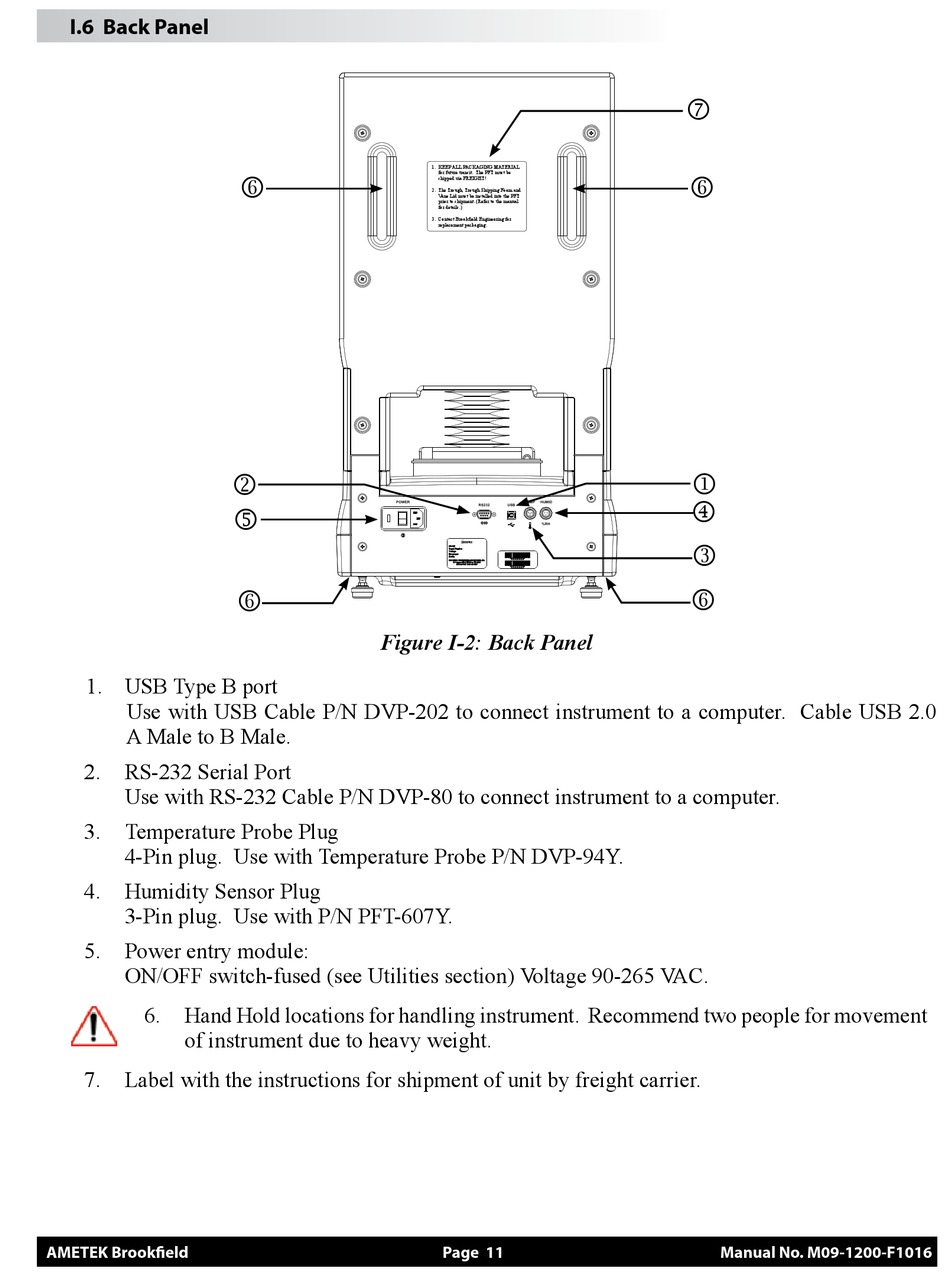

Figure I-2: Back Panel
1. KEEP ALL PACKAGING MATERIAL
for future transit. The PFT must be
shipped via FREIGHT!
2. The Trough, Trough Shipping Foam and
Vane Lid must be installed into the PFT
prior to shipment. (Refer to the manual
for details.)
3. Contact Brookfield Engineering for
replacement packaging.
TEMP HUMID
RS232 USB
%RH
Page 11


j
m
l

Manual No. M09-1200-F1016
