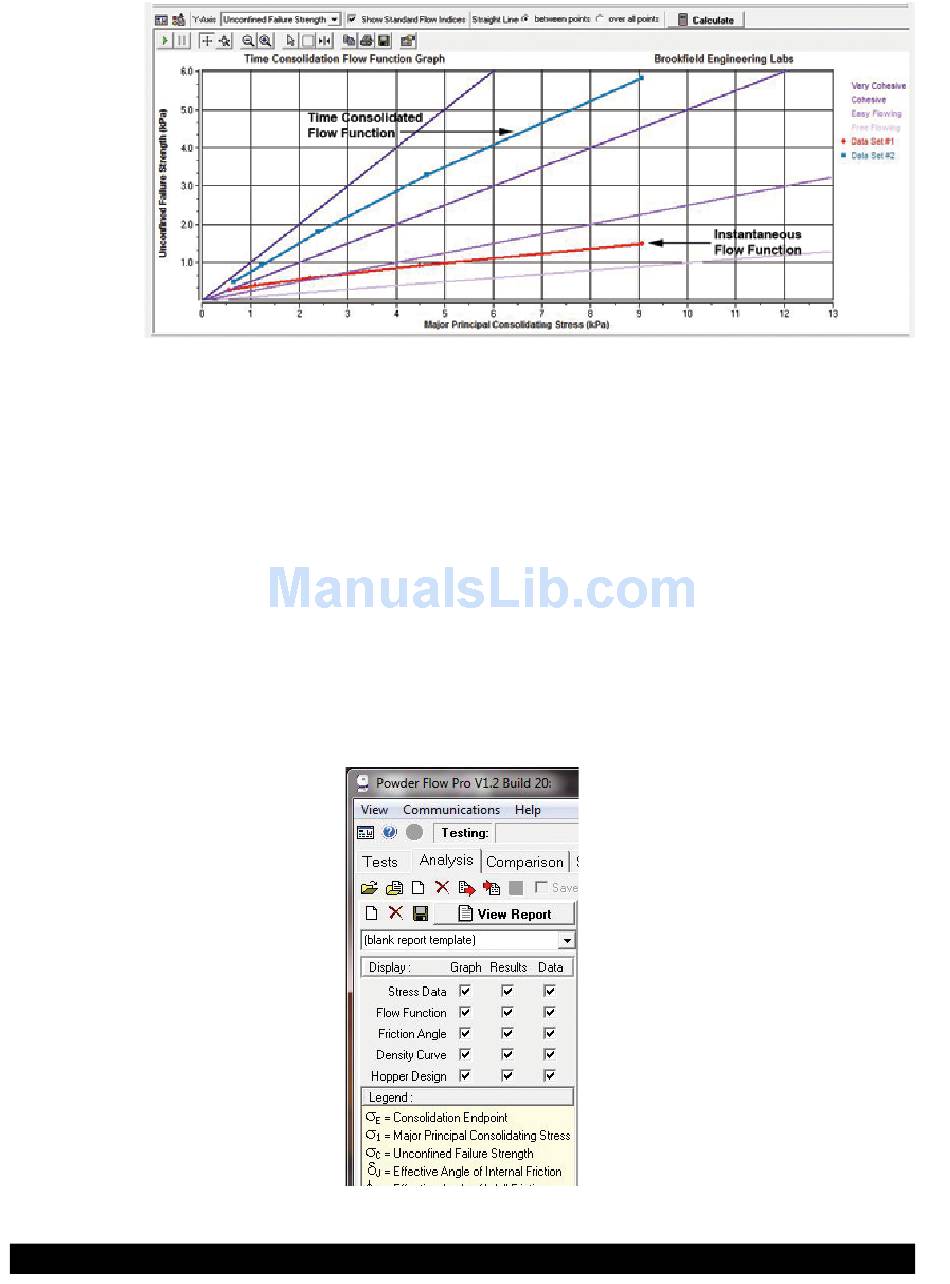

Figure IV-25: Time Consolidated Flow Function Test Graph
• Wall Friction Test data allows the user to calculate several Hopper half angles, one
for each Displacement setpoint. The user selects the Flow Function test file in order
to perform this calculation. Arching and Rat-hole dimensions are not applicable.
• Density Test data: Not applicable.

IV.7.3 How to Create a Data Report

Once a test has been completed, the user can view an analysis report by pressing the "view report"
button shown in Figure IV-26 in the analysis tab. The user can customize the report by checking
the boxes below as needed. A report of the corresponding data will be created in tabular format.
Reports can also be created for comparisons and statistics using the same procedure.
AMETEK Brookfield
Figure IV-26: View Report Screen
Page 46 Manual No. M09-1200-F1016
