IV.

POWDER FLOW PRO SOFTWARE

Powder Flow Pro Software (Part No. PFT-609) and a USB cable for connection to a PC are provided
with the PFT in order to operate the instrument, collect data, perform analyses, store data files, and
export data to Excel .
™
Connect the USB cable to the PFT and to your PC. Turn on the PFT using the power switch on the
backside of the instrument. Once the PFT is on, start the software by clicking the Powder Flow Pro
icon on the start/program bar.

IV.1 Main Screen and Setup Tab

Upon startup, the Tests Tab screen comes up as shown in Figure IV-1.

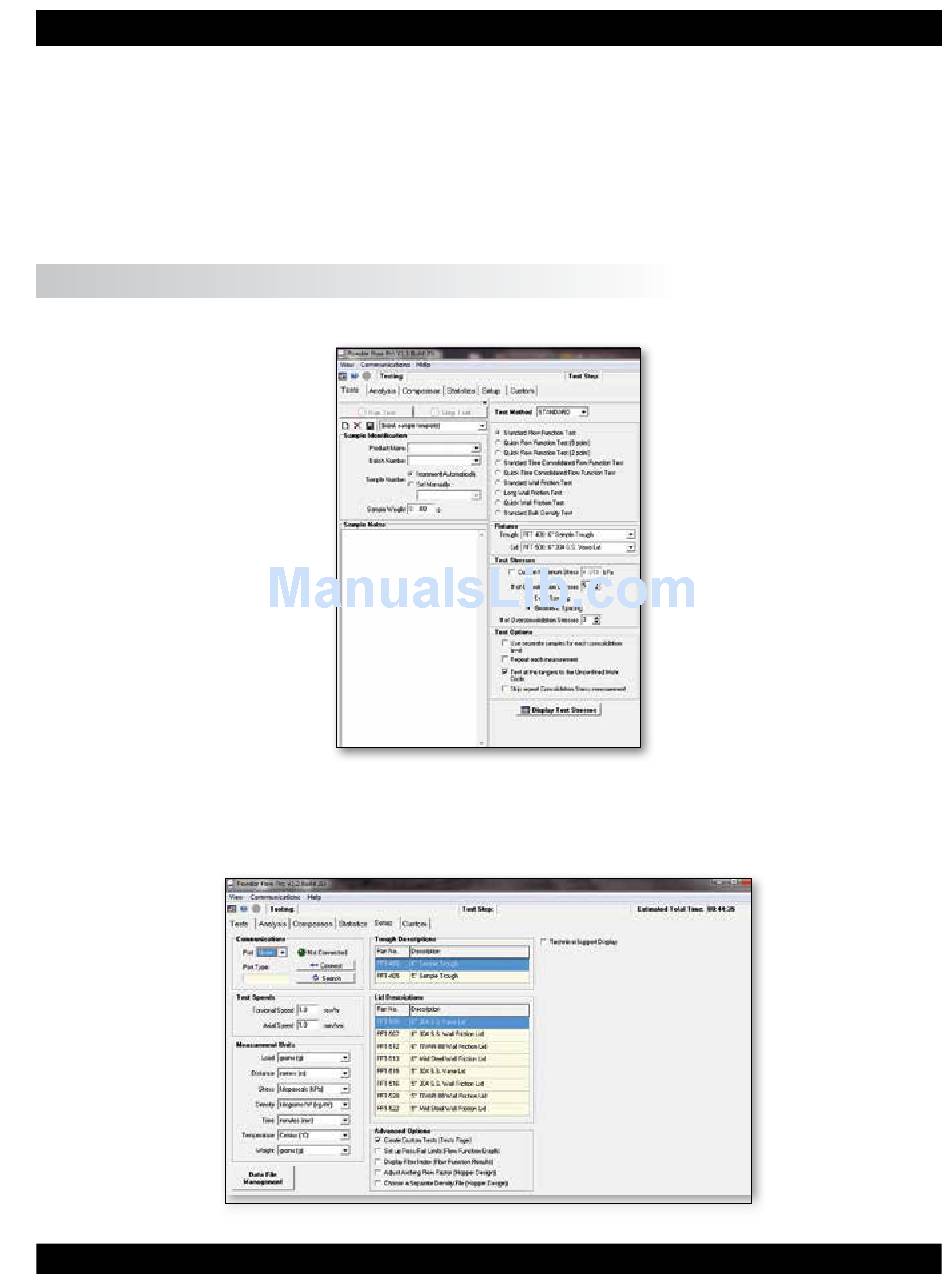

Figure IV-1: Tests Tab Screen
Details on sample type and test method are entered on this page. However, before proceeding, make
sure that the program is communicating with the PFT by clicking on the Setup Tab. The Setup Screen
is shown in Figure IV-2.
Figure IV-2: Setup Screen
AMETEK Brookfield Page 27 Manual No. M09-1200-F1016
