Release Button Hidden
Compression Plate
Release Button

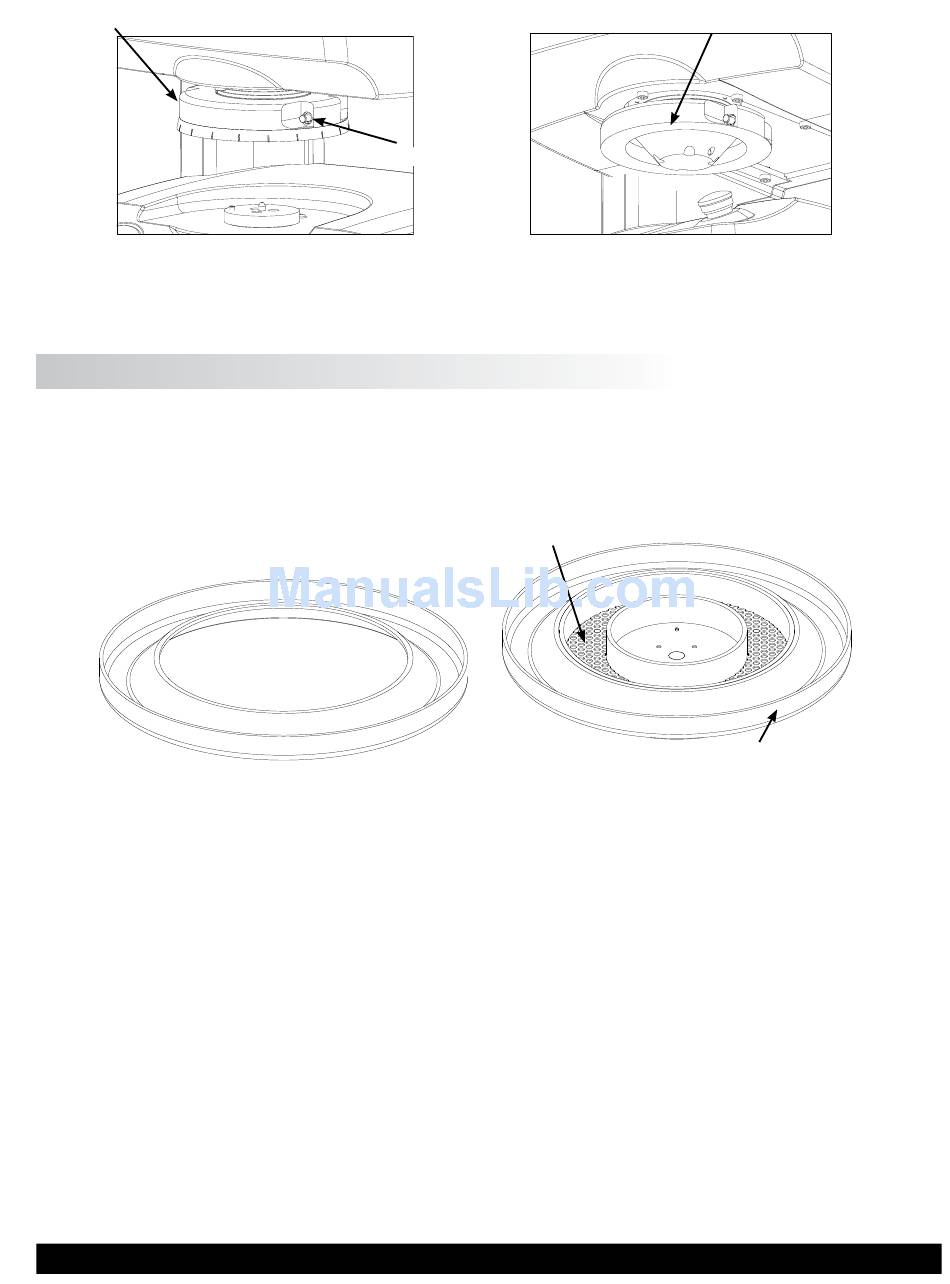

Figure III-4b: Release Buttons Figure III-4c: Close-up of Compression Plate Holes

III.4 Outer Catch Tray

The Outer Catch Tray, shown in Figure III.5, provides a convenient apron around the trough for
collection of sample material which spills over the edge of the trough during sample loading and
test execution. Center it over the trough and observe that it fits conveniently on the outer lip of
the trough. This applies to both the Standard and the Small Sample Volume Troughs.
Sample Trough
Outer Catch Tray
Figure III-5a: The Outer Catch Tray by Itself Figure III-5b: Outer Catch Tray on the Trough
AMETEK Brookfield Page 23 Manual No. M09-1200-F1016
