IV.8 Statistics Page

Statistics can be done on results which have one value per data file. For example, statistics can
be done on the slope and angle of the Steady State Failure Locus of 10 Flow Function Test data
sets, because each data set has only one Steady State Locus gradient. Statistics could not be
done on the Time Consolidation Flow Function Failure Locus gradient, because there are several
Consolidation Failure Loci per data set. Up to 30 data sets can be compared.

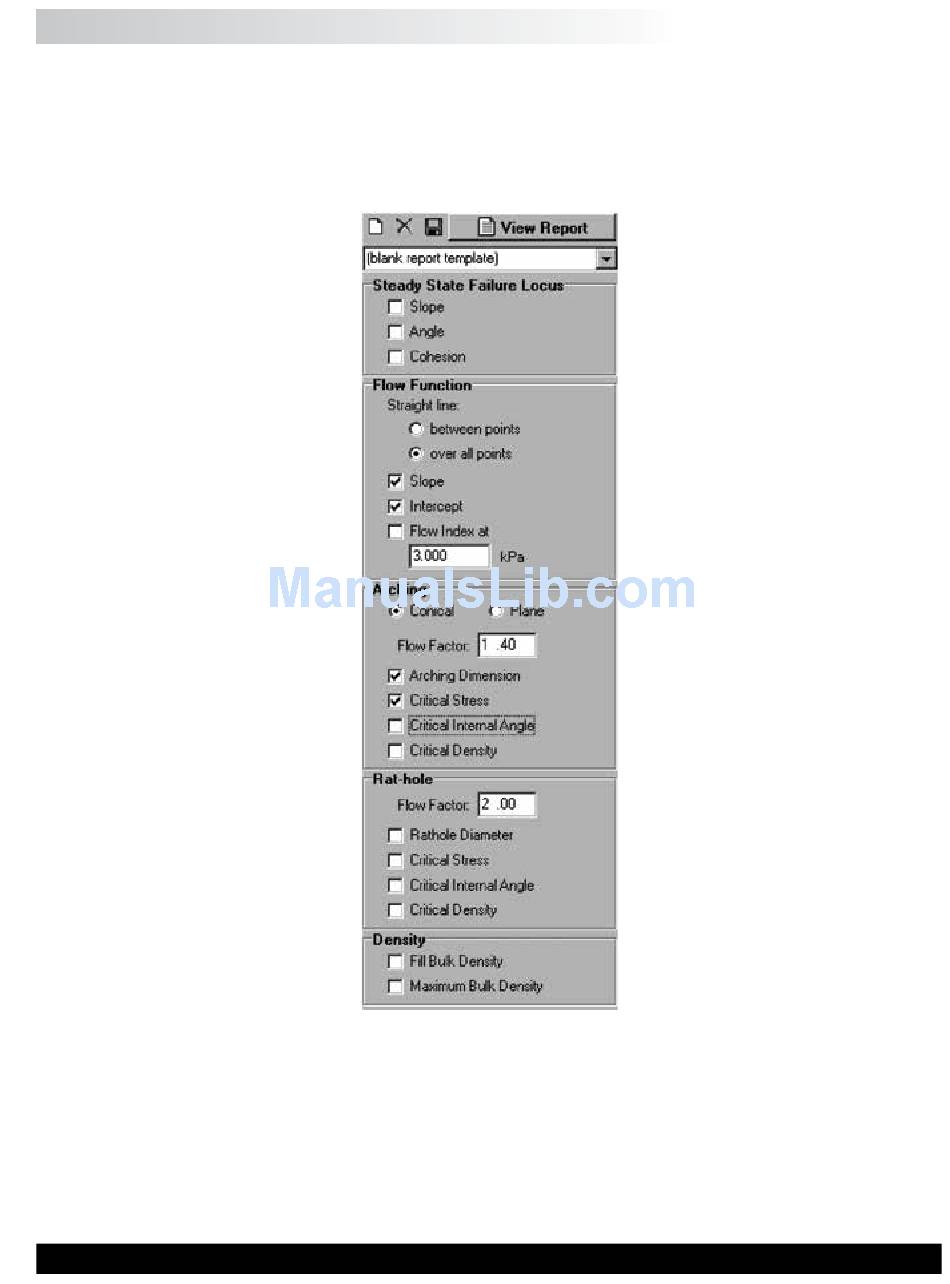

Figure IV-28: Results Available for Statistical Analysis
The statistics tab can be used to compare different values among many data sets. Reports can
be created comparing statistics on "Steady State Failure Locus", "Flow Function", "Arching",
"Rat-Hole", and "Density".
Refer to Figure IV-29 for an example of several Flow Functions Tests on Limestone Sand.
