CAPA830 Intel Atom

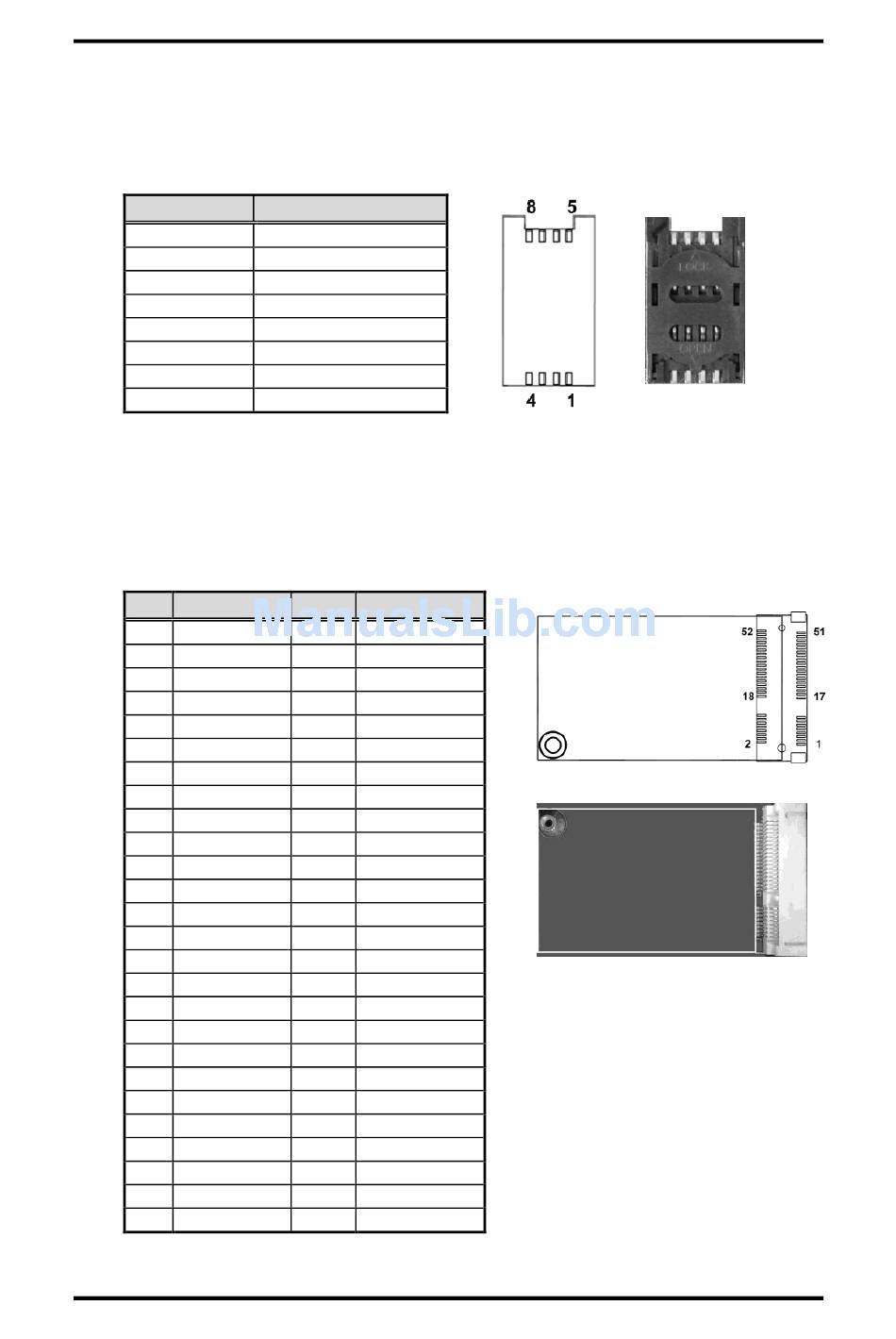

SIM Card Slot (SCN1)

SCN1 is on the bottom side of the AX93262 for inserting SIM Card. In order to work
properly, the SIM Card must be used together with Mini Card which is inserted to socket
SCN2. It is mainly used in 3G wireless network application.
Pin
1
2
3
4
5
6
7
8

PCI-Express Mini Card Connector (SCN2)

This is a PCI-Express Mini Card connector which supports PCI-Express x1 link and USB
2.0 link. A PCI-Express Mini Card can be applied to either PCI-Express or USB 2.0. It
complies with PCI-Express Mini Card Spec. V1.2.
Pin Signal
1 WAKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 No use
19 No use
21 GND
23 PE_RXN3
25 PE_RXP3
27 GND
29 GND
31 PE_TXN3
33 PE_TXP3
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 No use
47 No use
49 No use
51 No use
68
TM
D2550/N2800/N2600 Processor 3.5" SBC
Signal
PWR
RST
CLK
NC
GND
VPP
I/O
NC
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 PWR
10 I/O
12 CLK
14 RST
16 VPP
18 GND
20 W_DISABLE#
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D-
38 USB_D+
40 GND
42 LED_WWAN#
44 LED_WLAN#
46 LED_WPAN#
48 +1.5V
50 GND
52 +3.3VSB
ZIO Module (Optional)
