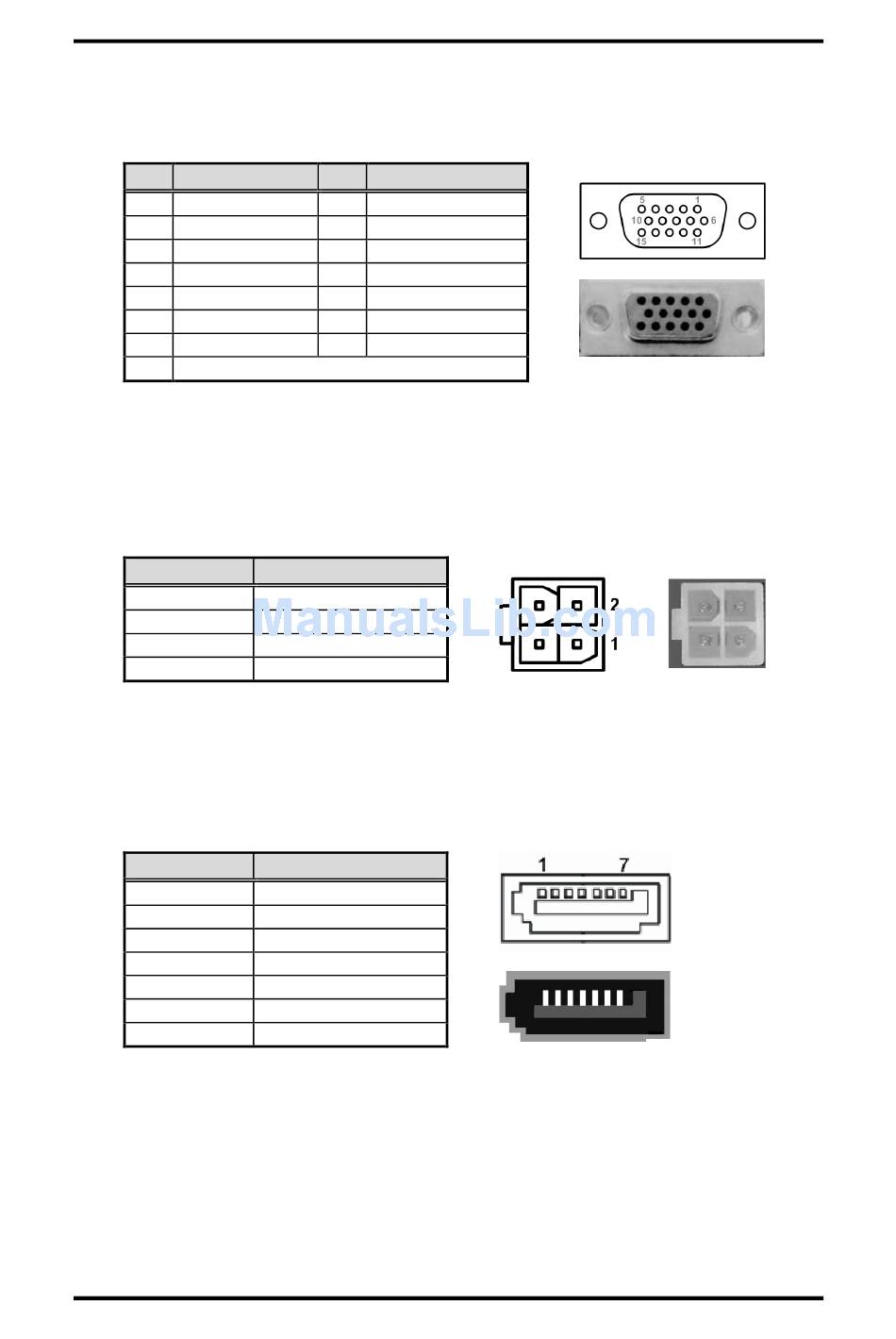

VGA Connector (CN17)

The CN17 is a slim type 15-pin D-Sub connector which is commonly used for CRT VGA
monitor. This VGA interface configuration can be configured via software utility.
Pin Signal
1 Red
3 Blue
5 GND
7 GND
9 VCC
11 N.C.
13 Horizontal Sync
15 DDC CLK
2.4.15

Power Connector (ATX1)

The ATX1 is a 4-pin power supply interface. External power supply plug fits into ATX1 in
only one orientation. Properly press down power supply plug until it completely and
firmly fits into this connector. Loose connection may cause system instability.
Pin
1
2
3
4
2.4.16

Serial ATA Connector (SATA1)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
high-speed SATA interface port. It is computer bus interface for connecting to devices
such as hard disk drives.
Pin
1
2
3
4
5
6
7
20
TM
D2550/N2800/N2600 Processor 3.5" SBC
Pin Signal
2 Green
4 N.C.
6 DETECT
8 GND
10 GND
12 DDC DATA
14 Vertical Sync
Signal
GND
GND
+12V
+12V
Signal
GND
SATA_TX+
SATA_TX-
GND
SATA_RX-
SATA_RX+
GND
Board and Pin Assignments
