CAPA830 Intel Atom
Hot Keys
 Left/Right
 Up/Down
+ Plus/Minus
Tab
F1
F2
F3
F4
Esc
Enter

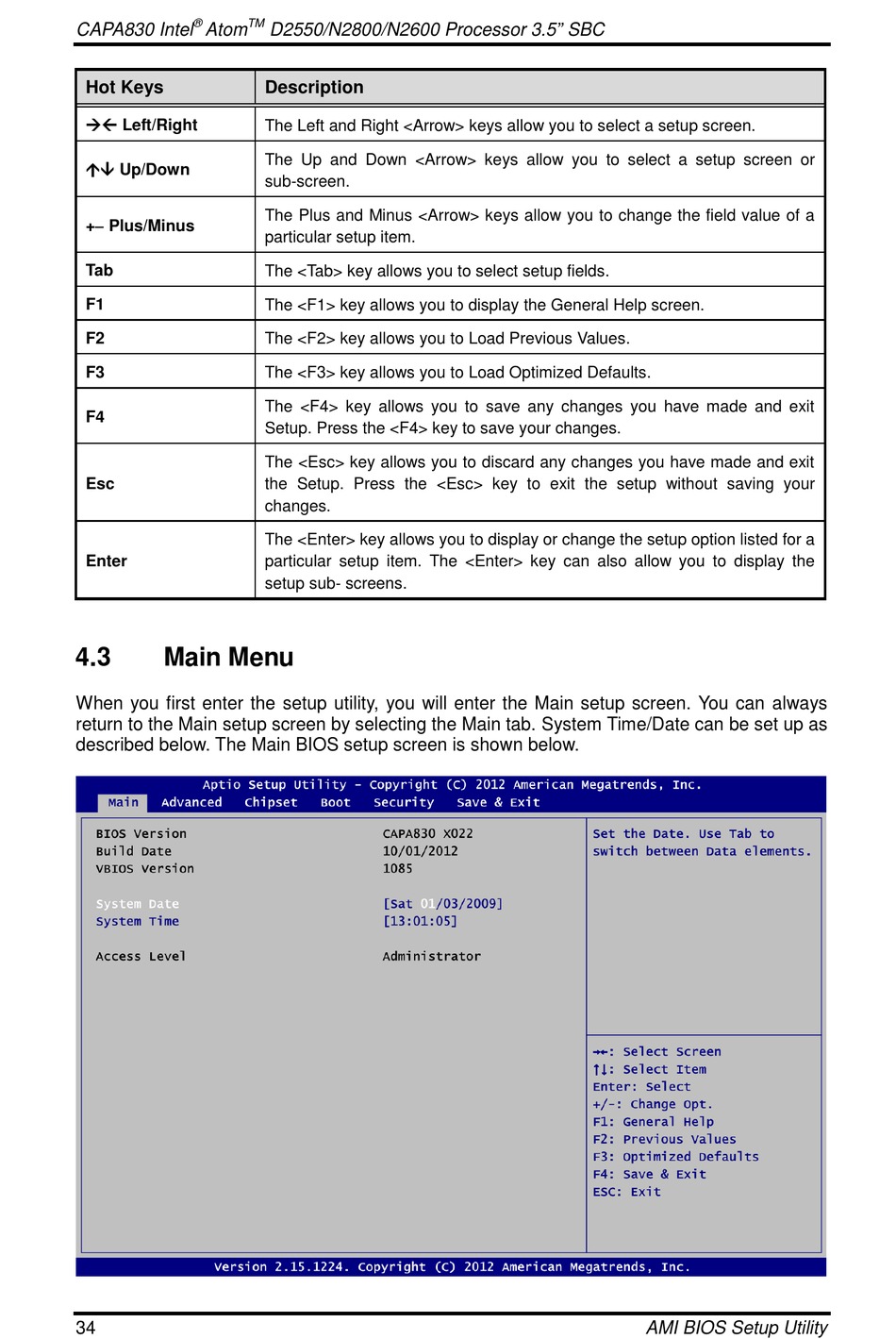

4.3

Main Menu

When you first enter the setup utility, you will enter the Main setup screen. You can always
return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as
described below. The Main BIOS setup screen is shown below.
34
TM
D2550/N2800/N2600 Processor 3.5" SBC
Description
The Left and Right <Arrow> keys allow you to select a setup screen.
The Up and Down <Arrow> keys allow you to select a setup screen or
sub-screen.
The Plus and Minus <Arrow> keys allow you to change the field value of a
particular setup item.
The <Tab> key allows you to select setup fields.
The <F1> key allows you to display the General Help screen.
The <F2> key allows you to Load Previous Values.
The <F3> key allows you to Load Optimized Defaults.
The <F4> key allows you to save any changes you have made and exit
Setup. Press the <F4> key to save your changes.
The <Esc> key allows you to discard any changes you have made and exit
the Setup. Press the <Esc> key to exit the setup without saving your
changes.
The <Enter> key allows you to display or change the setup option listed for a
particular setup item. The <Enter> key can also allow you to display the
setup sub- screens.
AMI BIOS Setup Utility
