 System Date/Time
Use this option to change the system time and date. Highlight System Time or System
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab>
key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY
format. The time is entered in HH:MM:SS format.
4.4

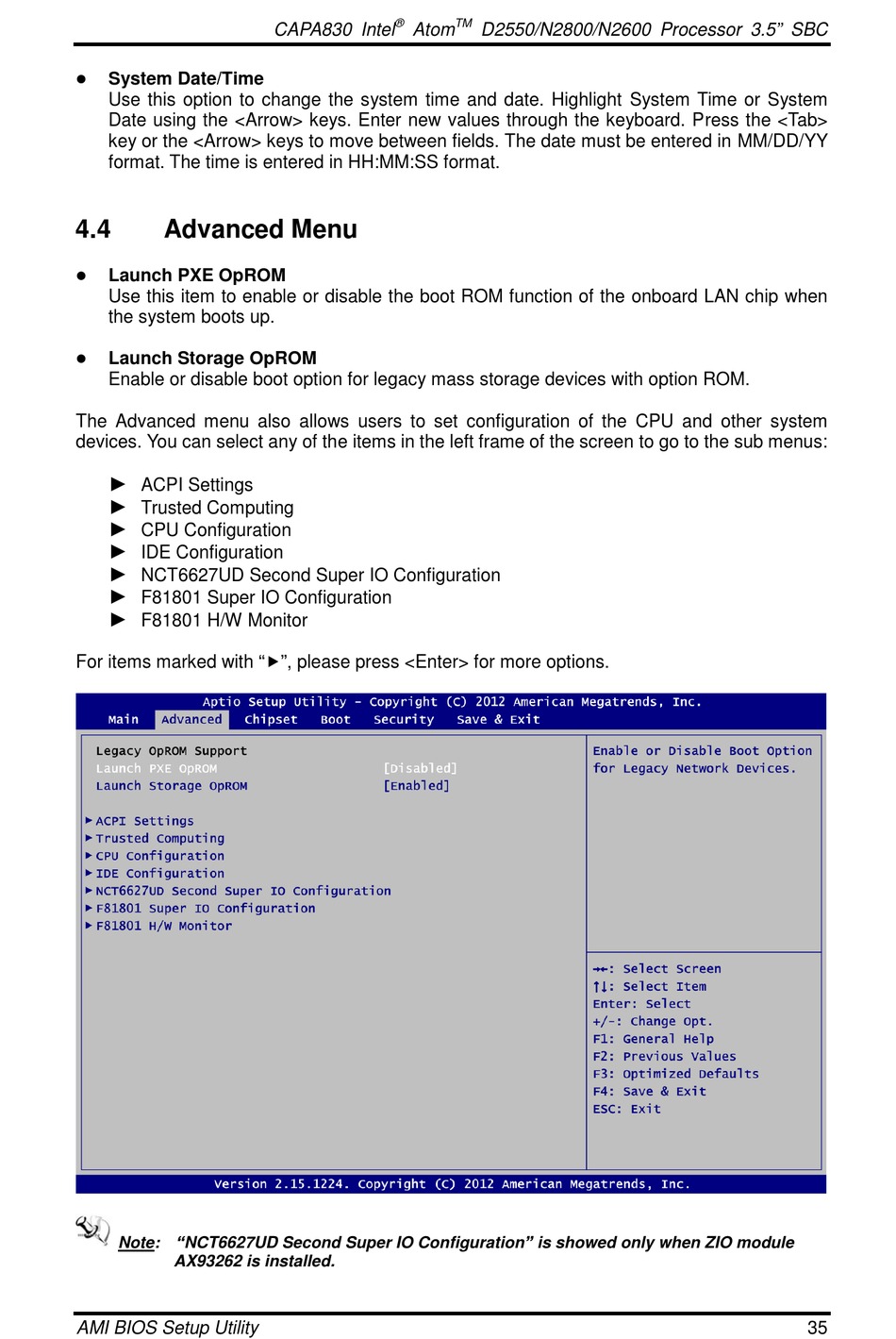

Advanced Menu

 Launch PXE OpROM
Use this item to enable or disable the boot ROM function of the onboard LAN chip when
the system boots up.

Launch Storage OpROM
Enable or disable boot option for legacy mass storage devices with option ROM.
The Advanced menu also allows users to set configuration of the CPU and other system
devices. You can select any of the items in the left frame of the screen to go to the sub menus:
►
ACPI Settings
►
Trusted Computing
►
CPU Configuration
►
IDE Configuration
►
NCT6627UD Second Super IO Configuration
►
F81801 Super IO Configuration
►
F81801 H/W Monitor
For items marked with "", please press <Enter> for more options.
Note: "NCT6627UD Second Super IO Configuration" is showed only when ZIO module
AX93262 is installed.
