2.4.11

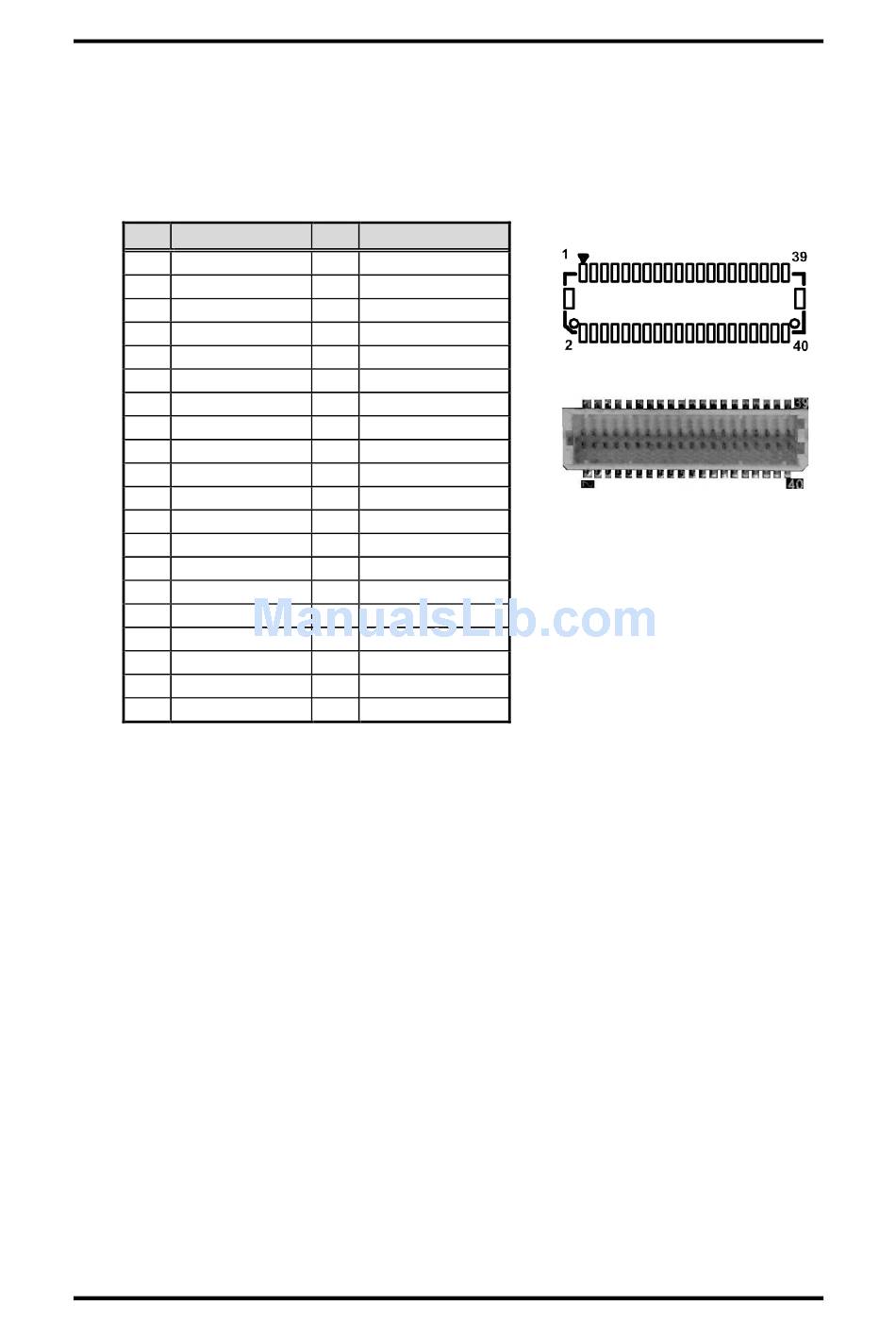

LVDS Connector (CN13)

This board has a 40-pin connector for LVDS LCD interface. It is strongly recommended
to use the matching JST SHDR-40VS-B 40-pin connector for LVDS interface. Pin 1~6
VCCM can be set to +3.3V level or +5V level by setting JP5 (see section 2.3.5).
18-bit single channel
Pin Signal
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 N.C.
13 N.C.
15 GND
17 N.C.
19 N.C.
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
Board and Pin Assignments
®
CAPA830 Intel Atom
Pin Signal
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 N.C.
14 N.C.
16 GND
18 N.C.
20 N.C.
22 GND
24 N.C.
26 N.C.
28 GND
30 N.C.
32 N.C.
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
TM
D2550/N2800/N2600 Processor 3.5" SBC
17
