CAPA830 Intel Atom D2550/N2800/N2600 Processor 3.5" SBC

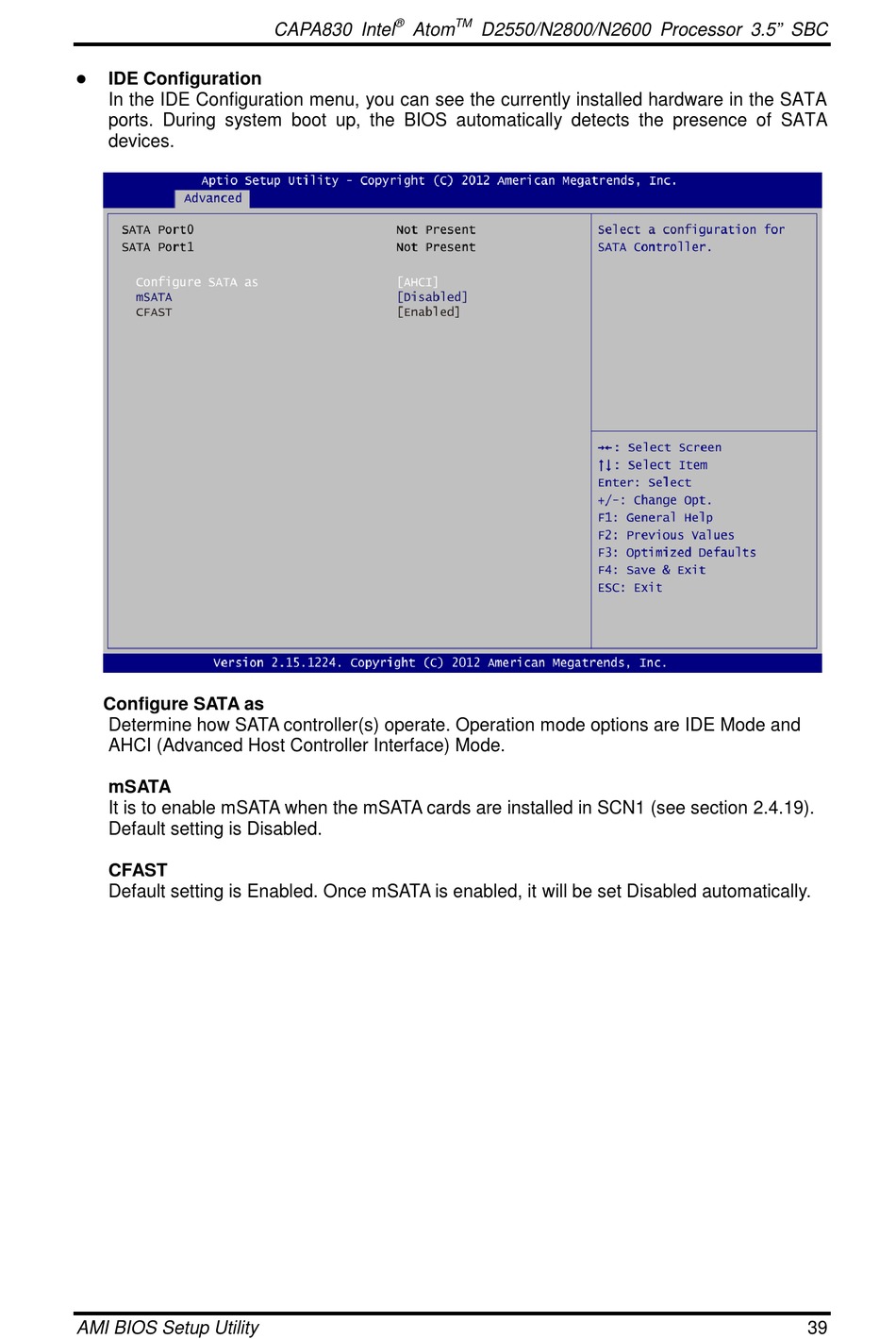

 IDE Configuration
In the IDE Configuration menu, you can see the currently installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
Configure SATA as
Determine how SATA controller(s) operate. Operation mode options are IDE Mode and
AHCI (Advanced Host Controller Interface) Mode.
mSATA
It is to enable mSATA when the mSATA cards are installed in SCN1 (see section 2.4.19).
Default setting is Disabled.
CFAST
Default setting is Enabled. Once mSATA is enabled, it will be set Disabled automatically.
AMI BIOS Setup Utility 39
