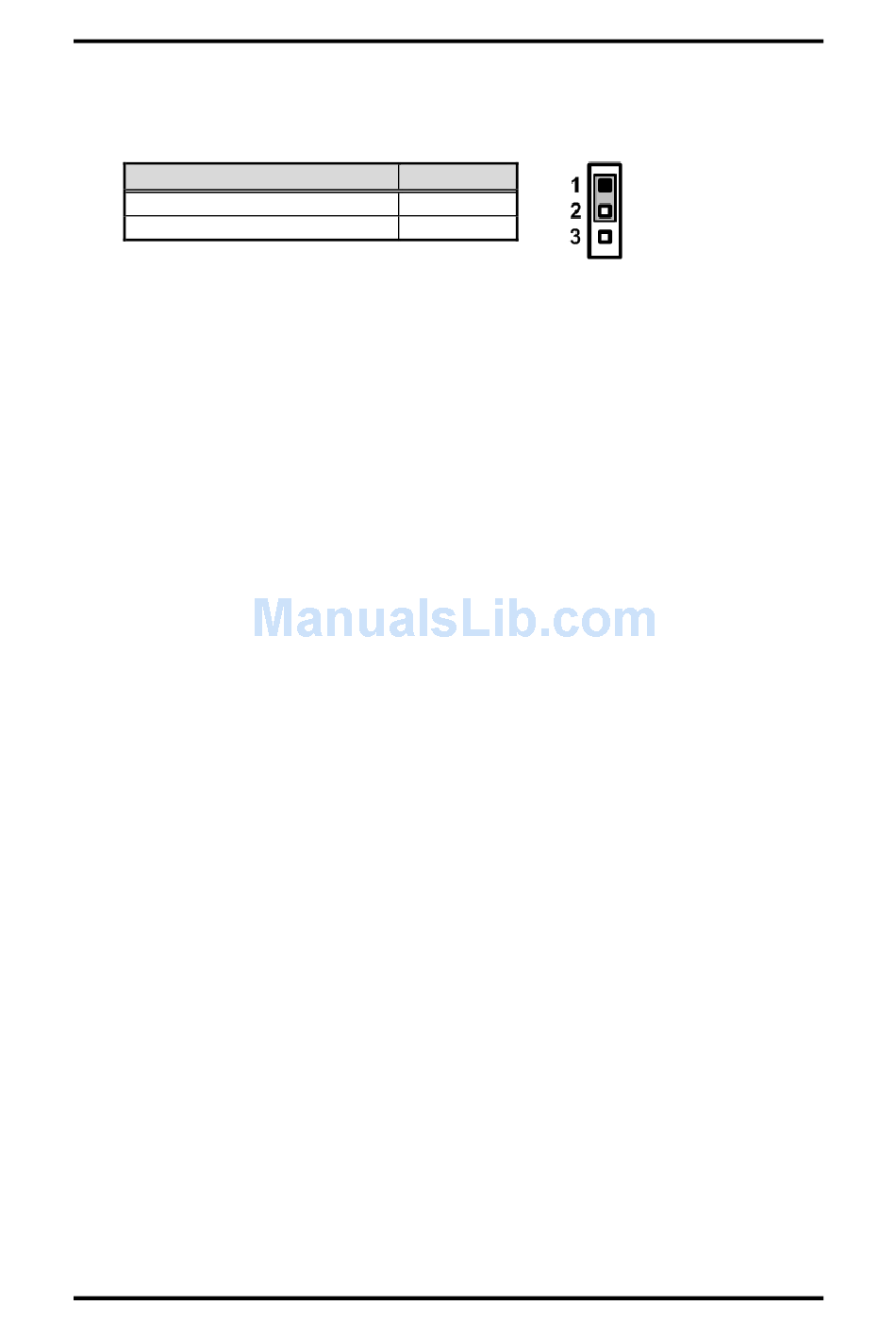

LVDS Voltage Selection (JP5)
The board supports voltage selection for flat panel displays. Use JP5 to set LVDS
connector (CN13) pin 1~6 VCCM to +3.3V or +5V voltage level.
Function
+3.3V level (Default)
+5V level
Board and Pin Assignments
®
CAPA830 Intel
Atom
Setting
1-2 close
2-3 close
TM
D2550/N2800/N2600 Processor 3.5" SBC
11
