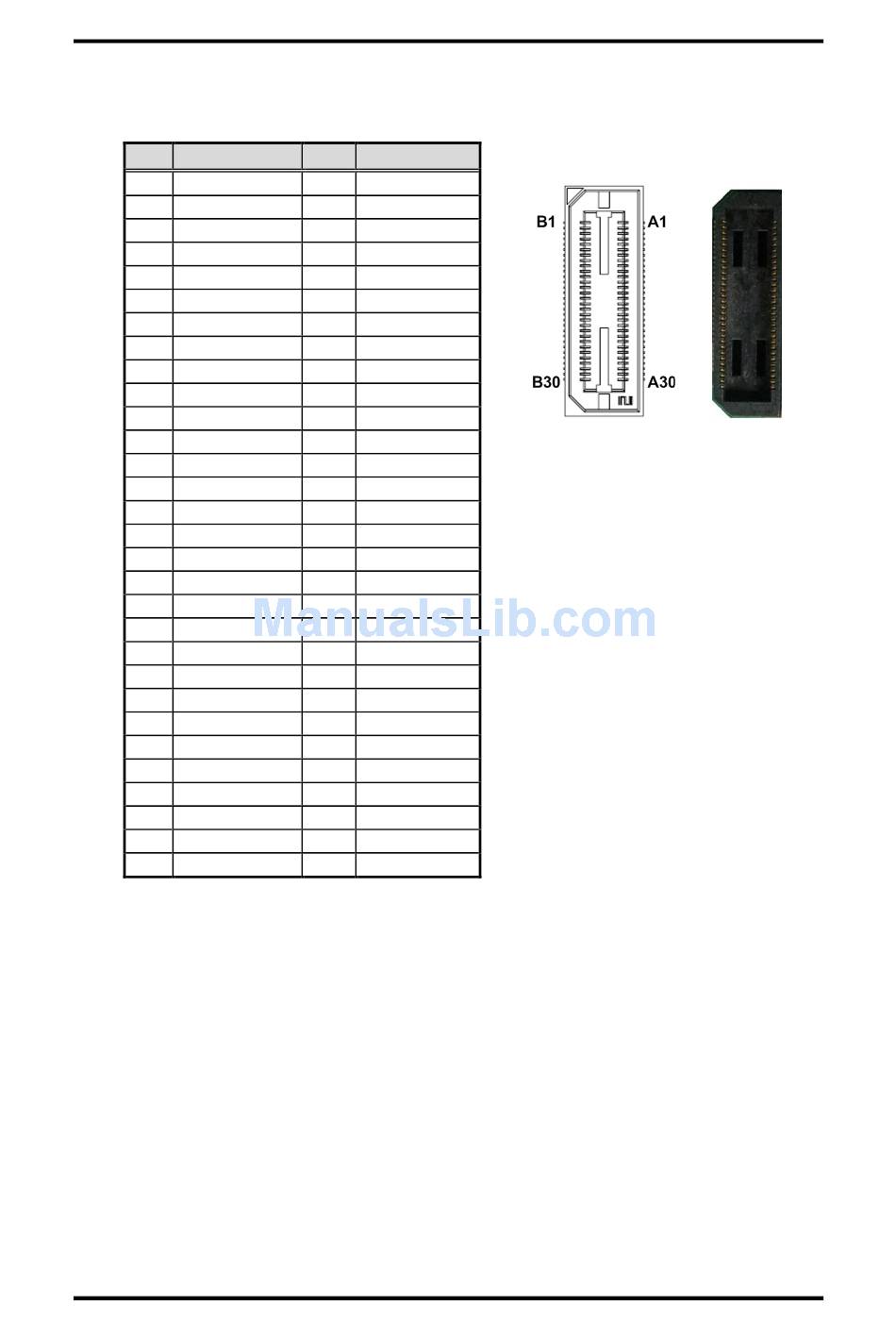

ZIO Expansion Connector (J1)

The J1 is for connecting ZIO expansion module to CPU board.
Pin Signal
A1 +12V
A2 +5VSB
A3 +5VSB
A4 +3.3VSB
A5 +3.3VSB
A6 RSVD
A7 PWROK
A8 SMB_CLK
A9 SMB_DATA
A10 GND
A11 PCI-E RXP
A12 PCI-E RXN
A13 USBOC_N
A14 USB DP
A15 USB DN
A16 N.C.
A17 N.C.
A18 GND
A19 N.C.
A20 N.C.
A21 PLTRST_N
A22 N.C.
A23 N.C.
A24 GND
A25 N.C.
A26 N.C.
A27 N.C.
A28 N.C.
A29 GND
A30 N.C.
ZIO Module (Optional)
®
CAPA830 Intel Atom
Pin Signal
B1 GND
B2 GND
B3 GND
B4 GND
B5 RSVD
B6 RSVD
B7 RSVD
B8 RSVD
B9 GND
B10 PCI-E TXP
B11 PCI-E TXN
B12 WAKE_N
B13 PCI-E CLKP
B14 PCI-E CLKN
B15 GND
B16 CLK_33M
B17 SERIRQ
B18 LAD0
B19 LAD1
B20 LAD2
B21 LAD3
B22 L_FRAME
B23 GND
B24 N.C.
B25 N.C.
B26 N.C.
B27 N.C.
B28 GND
B29 N.C.
B30 N.C.
TM
D2550/N2800/N2600 Processor 3.5" SBC
