EVAL-AD7276SDZ User Guide
UG-450
GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM

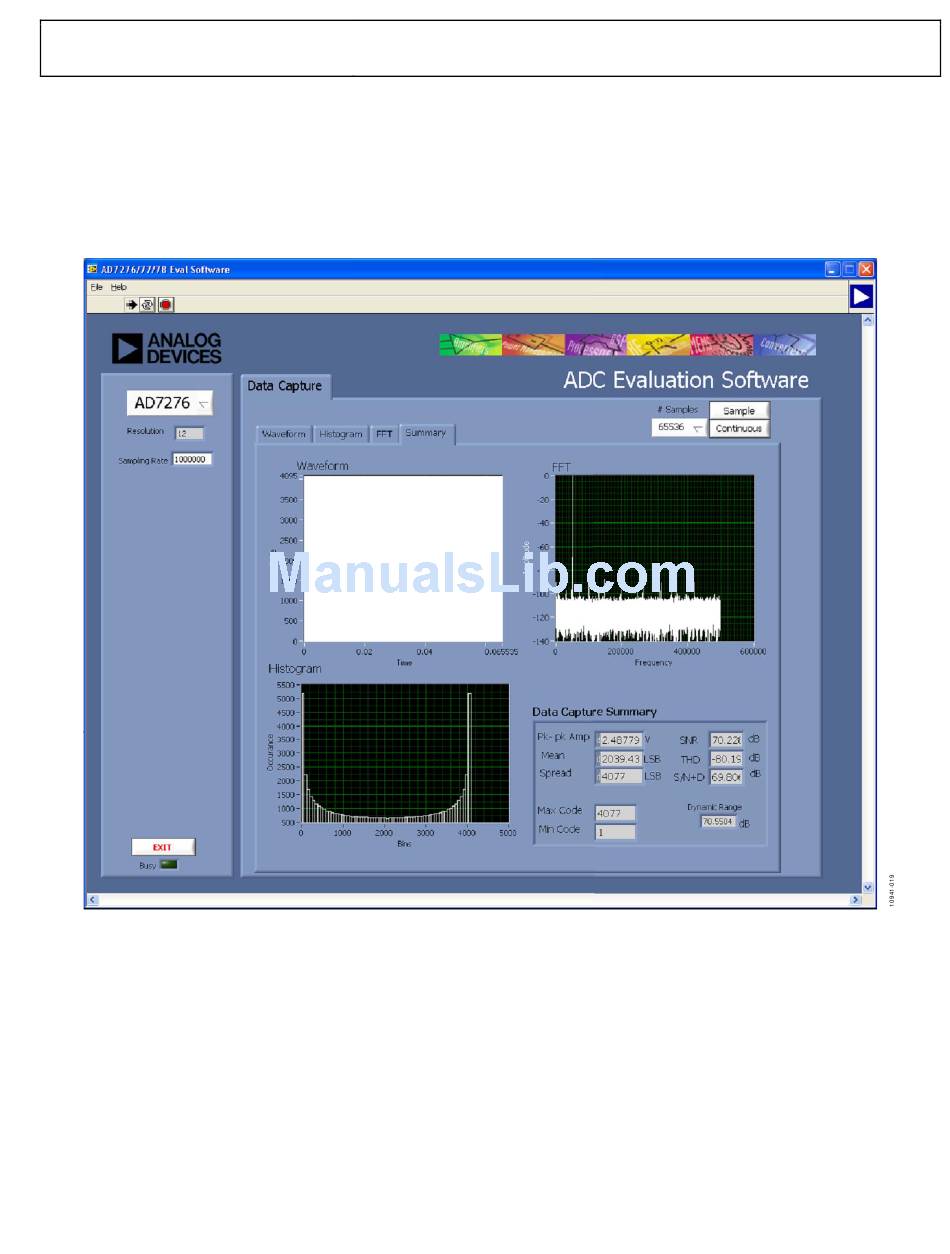

Figure 21 shows the Summary tab. The Summary tab captures
all the display information and provides it in one panel with a
synopsis of the information, including key performance
parameters such as SNR and THD.
Figure 21. Summary Tab
Rev. 0 | Page 19 of 20
