EVAL-AD7276SDZ User Guide
6.

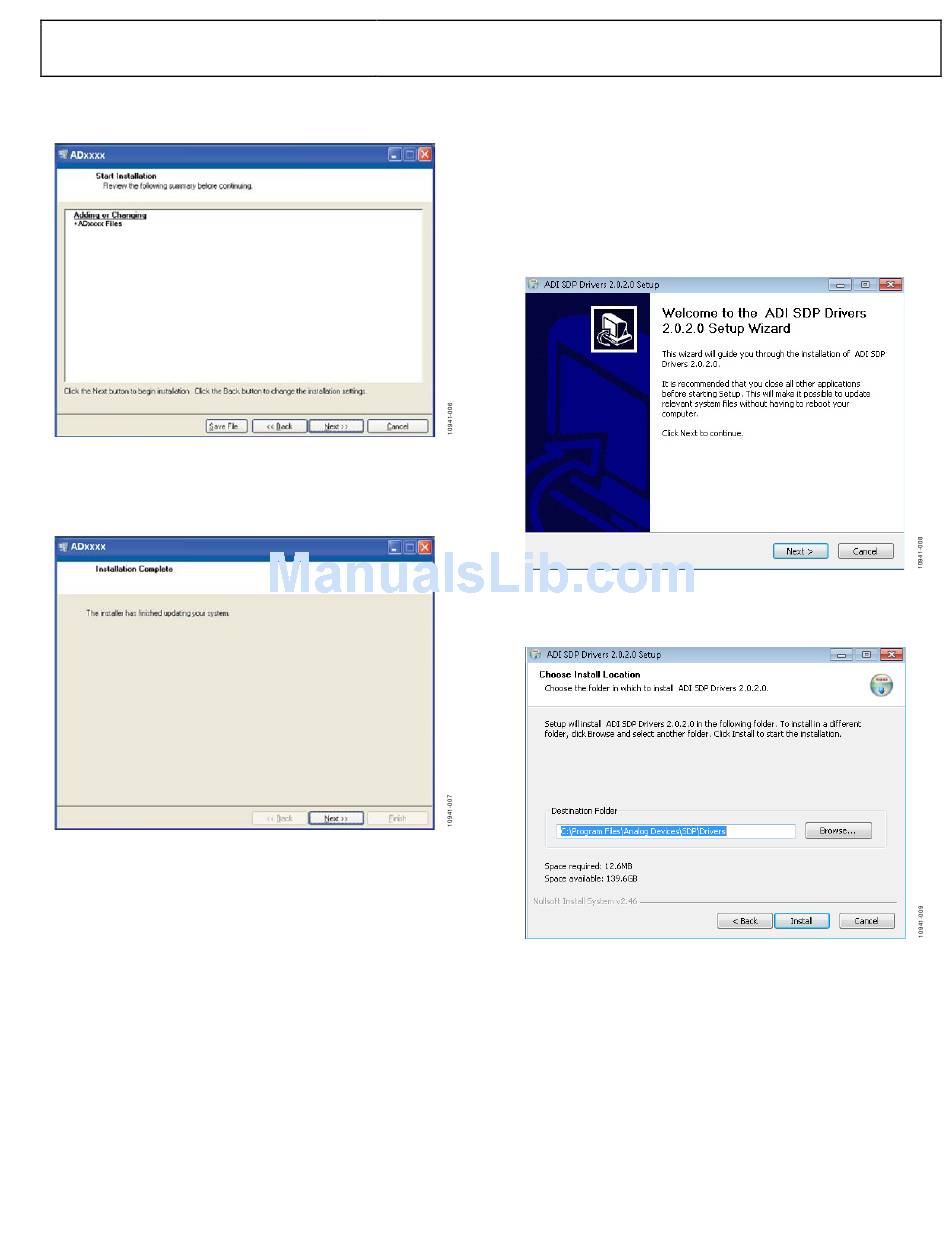

A summary of the installation is displayed. Click Next to
continue.
Figure 6.
AD7276
Evaluation Board Software Installation:
Reviewing a Summary of the Installation
7.
A dialog box informs you when the installation is
complete. Click Next.
Figure 7.
AD7276
Evaluation Board Software Installation:
Indicating When the Installation Is Complete
Installing the
Platform Board Drivers
After the installation of the evaluation board software is complete,
a welcome window is displayed for the installation of the
SDP-CB1Z
system demonstration platform board drivers.
1.
With the
EVAL-SDP-CB1Z
the USB port of the PC, make sure that all other applications
are closed, and then click Next.
2.
Select the location to install the drivers, and then click Next.
Selecting the Location for Drivers Installation
Rev. 0 | Page 5 of 20
EVAL-SDP-CB1Z
System Demonstration
board still disconnected from
Figure 8.
EVAL-SDP-CB1Z
Drivers Setup:
Beginning the Drivers Installation
Figure 9.
EVAL-SDP-CB1Z
Drivers Setup:
UG-450
EVAL-
