GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM
Figure 26 shows the Summary tab. The Summary tab captures
all the display information and provides it in one pane with a
synopsis of the information, including key performance parameters
such as SNR and THD.
OPERATING THE EVALUATION SOFTWARE IN
STANDALONE MODE
The software can run in standalone mode when no evaluation
board hardware is connected to the USB port. Conversions cannot
be performed in this mode, but previously acquired results can be
loaded and viewed in the evaluation software environment.
Selecting File > Load Data loads a dialogue box prompting the
file to load. The results can then be viewed in the Waveform,
Histogram, FFT, and Summary tabs.

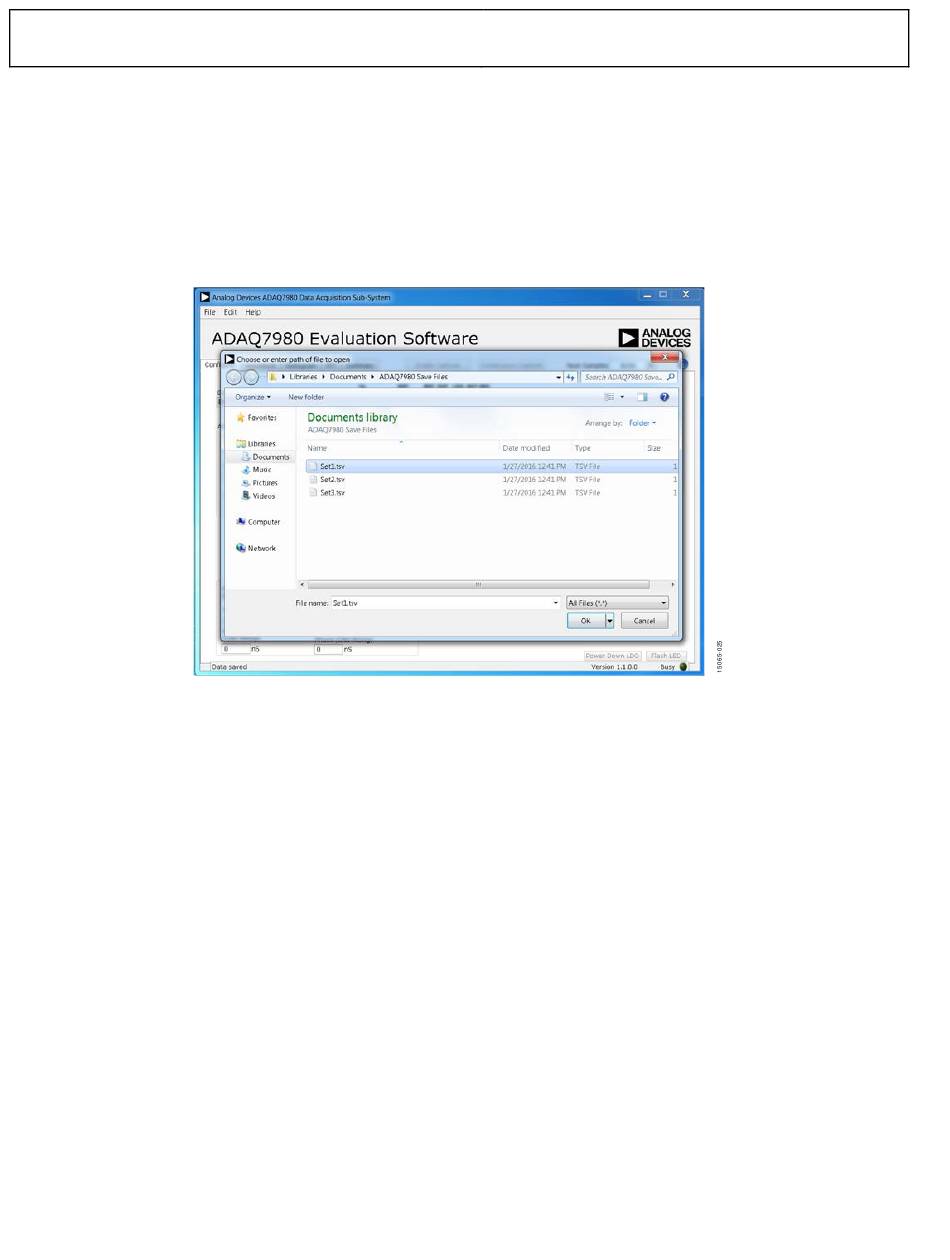

Figure 27. Loading File Menu
